90° Double Gate Guide Roller Bracket (GTR015)

Description

The Richmond GTR015 is a 90° double roller guide bracket for manual and automatic sliding gates from 8 to 55mm wide. Its two nylon rollers sit on opposite sides of a suitable section of the gate frame, allowing the gate to travel between them. This provides guidance in both sideways directions, helping keep the frame upright and aligned as it opens and closes.

The bracket is fitted at a suitable fixed guide position near the upper part of the gate. The low friction, low wear rollers turn against the passing frame to provide guidance without a fixed surface dragging along it. Roller positions can be adjusted in the slot, including mounting on either side of the slot, to suit the guide arrangement. Set the spacing so the gate moves freely without being pinched between the rollers.

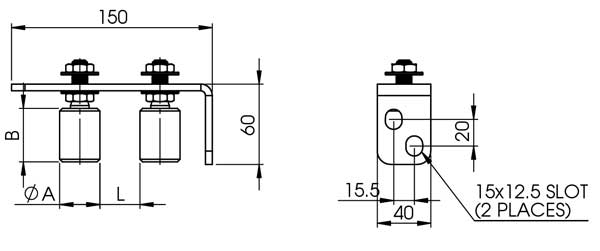

Each roller is 30mm in diameter and 40mm high, with an M12 bolt. Check the frame width where the rollers contact it, the mounting position and clearance through the gate’s full travel. The rollers guide the gate laterally; on a tracked sliding gate, the running wheels support its weight. For an arrangement requiring a single contact point, see the GTR014 single gate guide roller bracket.
