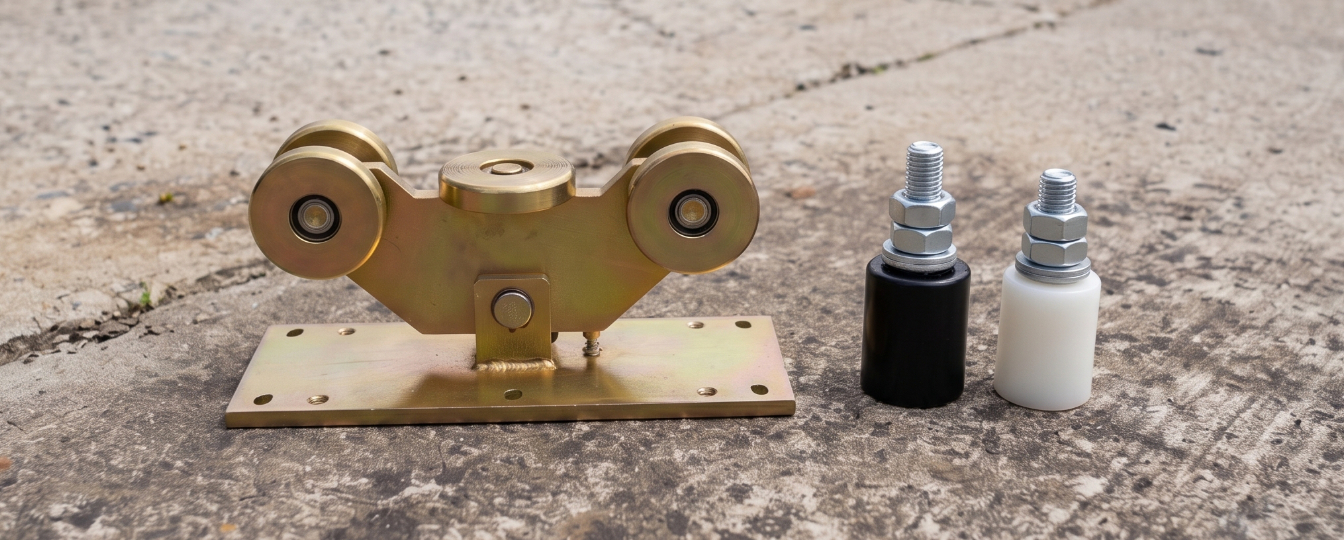

Cantilever Gate Hardware & Sliding Gate Components
Richmond supplies a comprehensive range of cantilever gate hardware for residential, commercial, agricultural and industrial sliding gate installations. Our range includes cantilever gate channels, frames, carriage wheels, rollers and guides used to construct, support and maintain trackless sliding gate systems.
Cantilever sliding gate hardware allows gates to move horizontally without requiring a continuous ground-mounted track across the entrance. These systems are commonly used at warehouses, manufacturing plants, logistics centres, rural properties and commercial premises where clear ground-level access is important for vehicles and machinery.
Explore Richmond’s range of Cantilever Channels, Cantilever Frames, Cantilever Carriage Wheels and Cantilever Rollers and Guides to find the components required for your gate installation.
Trackless Cantilever Sliding Gate Hardware for Industrial & Rural Entrances
Cantilever gate systems use a supporting channel and roller carriage arrangement to carry the gate as it moves across an entrance. Unlike conventional sliding gates that travel along a ground-mounted track, cantilever gates are supported from one side of the opening, allowing vehicles and equipment to pass through without crossing a continuous gate track.
This design is particularly useful for industrial sites, warehouses, workshops, manufacturing facilities and agricultural properties where forklifts, trucks, trailers and farm machinery regularly use the entrance. By removing the need for a ground track across the opening, cantilever gate systems reduce the potential for dirt, gravel and debris to interfere with gate movement.
Richmond’s cantilever gate hardware range provides components for gate fabrication, new installations, maintenance and compatible replacement projects. Selecting the correct hardware requires consideration of gate weight, opening width, overall gate length, supporting foundations and the compatibility of the channel, carriage and guide components.
Product Types by Application
Cantilever Gate Channels
Cantilever Gate Channels form part of the supporting and running system used in trackless sliding gates. The channel works with compatible roller carriages to support the gate and allow controlled horizontal movement across the entrance.
Richmond supplies cantilever gate channels in 68mm, 100mm and 140mm widths, each available in a 5.8m length. These profiles provide options for residential, agricultural, commercial and industrial gate projects, with the appropriate size selected according to the complete gate design and roller system.
Cantilever Gate Frames
Cantilever Gate Frames provide the structural framework used in cantilever sliding gate installations. The frame supports the gate structure and works with the selected cantilever channel, roller carriages and guide components to form the complete gate assembly.
Cantilever frames are relevant to gate manufacturers, fabricators and installers constructing sliding gates for driveways, rural properties and commercial or industrial entrances. Frame dimensions, structural requirements and compatibility with the supporting hardware must be considered during system design.
Cantilever Carriage Wheels
Cantilever Carriage Wheels are roller assemblies that support the gate through its cantilever channel. Mounted beside the entrance, the carriages allow the channel and attached gate structure to travel horizontally without requiring a ground-mounted running track.
Richmond offers 5-wheel cantilever carriage sets designed for 68mm, 100mm and 140mm wide channels. These assemblies are used in compatible residential, agricultural, commercial and industrial gate systems where correct load support and rolling alignment are essential.
Cantilever Rollers and Guides
Cantilever Rollers and Guides help maintain gate alignment and control sideways movement as a sliding gate travels between its open and closed positions. Guide rollers are commonly mounted near the upper section of the gate using compatible brackets.
Richmond supplies M12, M14 and M18 nylon gate guide rollers in standard and black finishes, along with 90-degree single and double roller guide brackets. These components are used for new gate installations, fabrication projects and maintenance of compatible sliding gate systems.
Specialty Product Options
68mm, 100mm & 140mm Cantilever Systems
Richmond’s cantilever gate hardware range includes channel and carriage options for 68mm, 100mm and 140mm systems. The different profiles allow gate fabricators and installers to select components suited to the requirements of their gate design.
Channels and carriage wheels must be correctly matched to provide proper engagement and rolling support. The selected system must also be assessed for gate weight, dimensions, operating conditions and supporting structure.
Five-Wheel Cantilever Carriage Assemblies
Richmond’s five-wheel cantilever carriage assemblies provide rolling support for compatible sliding gate channels. The carriages form part of the main load-bearing arrangement and allow the gate to move along its supporting roller system.
These components are used in trackless sliding gate installations where consistent movement and structural support are required. Correct carriage spacing, alignment and mounting are important for reliable gate operation.
Nylon Gate Guide Rollers

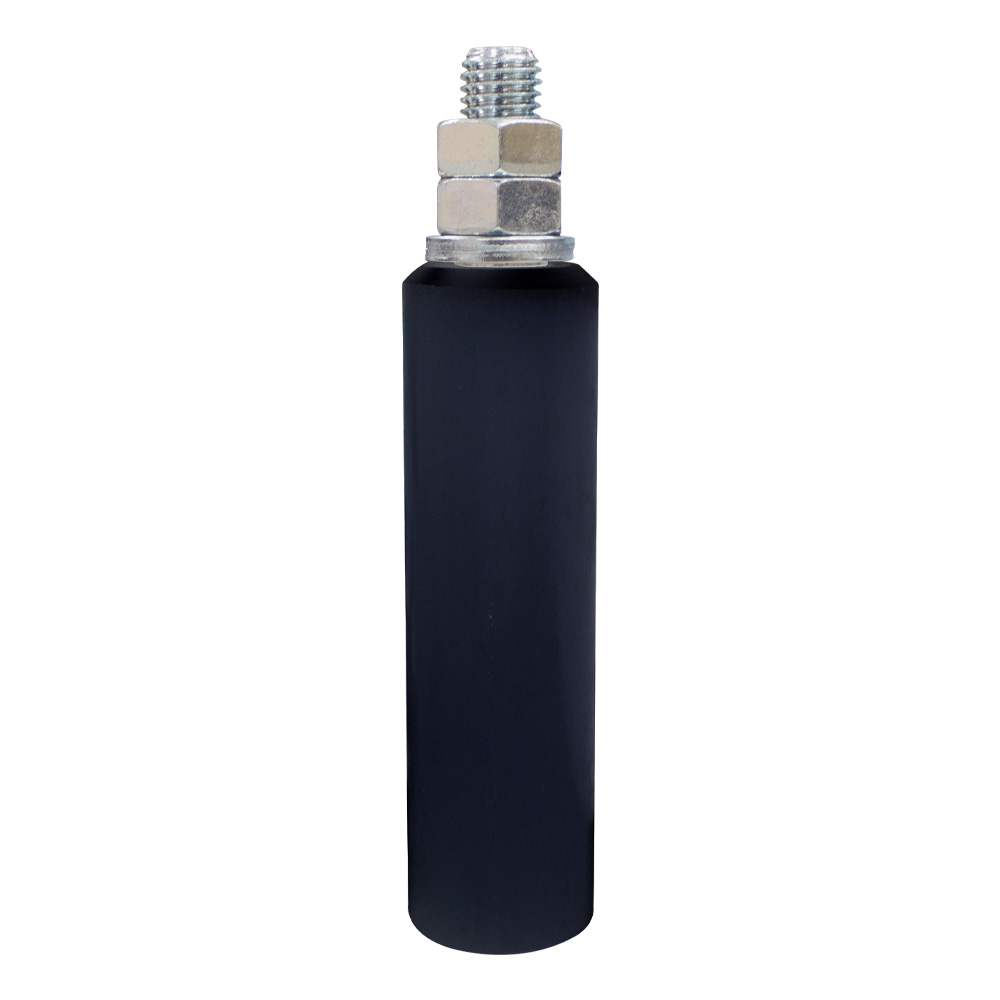

Nylon gate guide rollers provide a rolling contact surface to help control lateral movement of the gate frame. Richmond offers M12, M14 and M18 configurations, with standard and black nylon options available.
These rollers are used in residential, rural, commercial and industrial sliding gate systems. Properly positioned nylon guides help maintain gate alignment while reducing direct metal-to-metal contact at the guide points.
Single & Double Guide Roller Brackets
Richmond supplies 90-degree single and double gate guide roller brackets for mounting compatible nylon rollers. Single brackets provide a mounting arrangement for one guide roller, while double brackets allow two rollers to be positioned as part of the guiding system.
These brackets are useful for new gate installations and replacement projects where the gate requires controlled lateral guidance. The correct bracket configuration depends on the gate frame, roller dimensions and installation layout.
Trackless Sliding Gate Operation
Cantilever gate hardware supports sliding gate operation without a continuous ground-mounted track across the entrance. The gate travels through a supporting channel and roller arrangement positioned beside the opening.
This configuration is particularly useful for rural driveways, gravel entrances, warehouses and industrial access points where ground tracks may collect debris or interfere with vehicle movement. Suitable foundations and sufficient gate run-back space remain essential.
Manual & Automated Gate Compatibility
Cantilever gate hardware can form part of manually operated or motorised sliding gate systems, provided the components are suitable for the complete installation. Channels, carriages, frames and guide rollers work together to support controlled gate movement.
For automated gates, correct alignment and smooth rolling movement are particularly important to minimise unnecessary resistance on the motor. Gate automation equipment must be selected according to the gate’s weight, dimensions and operating requirements.
Replacement & Maintenance Components
Individual cantilever gate hardware components may be required when repairing or maintaining existing sliding gate installations. Richmond’s range includes channels, carriage wheel sets, nylon guide rollers and mounting brackets for compatible systems.
Replacement hardware is useful for gate installers, maintenance contractors and property owners addressing worn rollers, damaged brackets or other components. Existing dimensions, load requirements and system compatibility should be confirmed before ordering.
Applications by Industry
- Gate Manufacturing & Fabrication: Cantilever Gate Channels, Frames and Carriage Wheels for constructing trackless sliding gate systems.
- Warehousing & Logistics: Cantilever Sliding Gate Hardware for warehouse entrances, loading areas and vehicle access points requiring clear ground-level passage.
- Manufacturing & Industrial Sites: Cantilever Gate Carriages, Channels and Guide Rollers for industrial property entrances and equipment access gates.
- Agriculture & Farming: Cantilever Gate Hardware for rural driveways, farm entrances and machinery access points.
- Commercial Properties: Cantilever Sliding Gate Components for business entrances, commercial property boundaries and vehicle access gates.
- Residential & Acreage Properties: Cantilever Gate Frames, Channels and Rollers for compatible driveway sliding gate installations.
- Gate Installers & Contractors: Cantilever Gate Channels, Five-Wheel Carriages and Guide Brackets for new installations and gate upgrades.
- Property Maintenance: Replacement Cantilever Gate Rollers, Carriage Wheels and Guide Hardware for servicing existing sliding gate systems.
Industrial Equipment Solutions Across Australia
Richmond is a leading Australian supplier of Cantilever Gate Hardware for residential, agricultural, commercial and industrial sliding gate installations. Our range covers the essential components used to construct and maintain cantilever systems, including channels, frames, carriage wheels, nylon guide rollers and mounting brackets.
Whether you are fabricating a new trackless sliding gate, selecting components for a commercial entrance or replacing worn hardware on an existing system, Richmond can assist with identifying suitable components for your application.
Backed by Australia-wide supply, product expertise and in-house engineering capability, Richmond supports gate manufacturers, fabricators, installers and maintenance teams with practical gate hardware solutions.
Browse our Cantilever Channels, Cantilever Frames, Cantilever Carriage Wheels and Cantilever Rollers and Guides, or contact Richmond for advice on cantilever sliding gate hardware and compatible components.
