M18 Black Nylon Gate Guide Roller (GTR013B)

Description

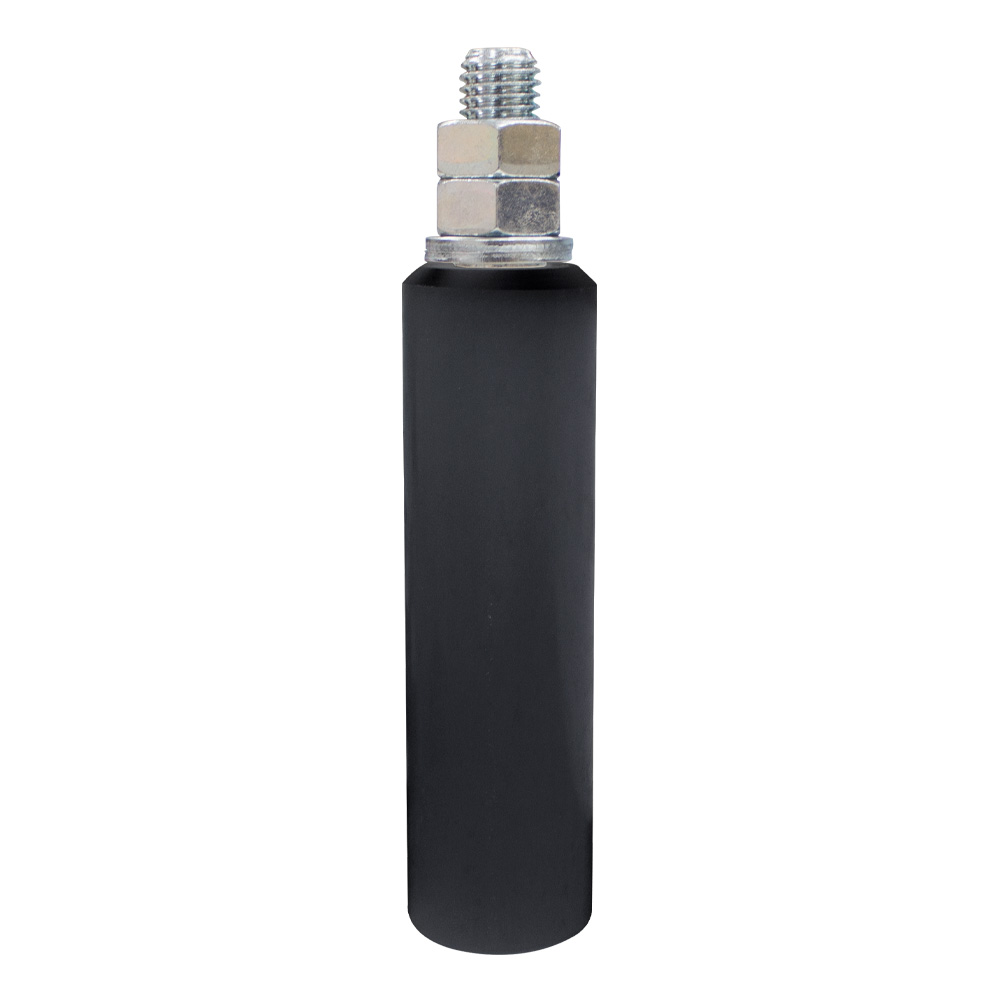

The Richmond GTR013B is a black nylon guide roller used in compatible manual and automatic sliding gate guide assemblies. It provides sideways guidance as the gate opens and closes, helping the frame stay upright and aligned with its travel path. The roller measures 40mm in diameter and 150mm high and is supplied on an M18 bolt with locking nuts.

In a typical sliding gate arrangement, the roller is mounted in a suitable fixed guide bracket near the upper part of the gate, with the gate frame travelling past its nylon surface. Rolling contact helps reduce friction at the guide point while limiting unwanted sideways movement. The low wear nylon is UV resistant, helping it resist deterioration from UV exposure.

Use the GTR013B when the guide arrangement calls for an M18 mounting and a 40mm diameter by 150mm high roller. Match the bolt size, roller dimensions and frame contact position when replacing an existing roller, and check that the gate can move freely through its full travel. Guide rollers provide lateral guidance; on a tracked sliding gate, the running wheels support the gate’s weight.
