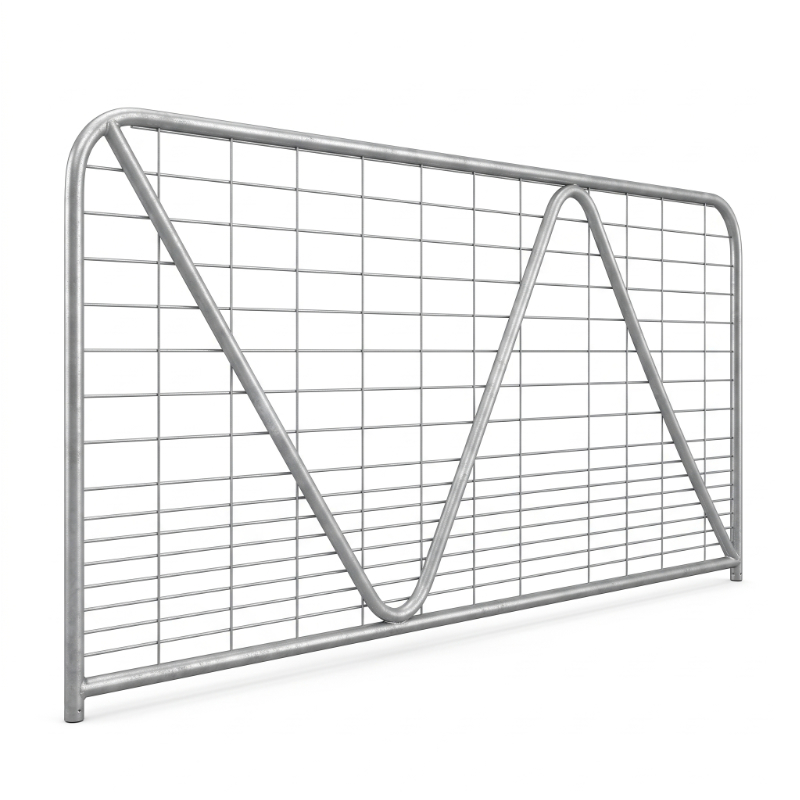

Galvanised steel 8ft mesh farm gate with N-style bracing and close-spaced lower mesh, designed for livestock enclosures, paddock entrances and general farm access.
Suits 8ft openings: Designed to fit an 8ft wide opening, making it a practical choice for paddock entrances, livestock areas and general farm access points.
Strong N-brace frame: Sturdy tubular steel frame with diagonal N-style bracing provides additional support across the wider gate span for regular farm use.
Welded mesh infill: Mesh construction creates a more enclosed barrier for managing livestock while maintaining clear visibility through the gate.
Close-spaced lower mesh: Smaller mesh spacing towards the bottom of the gate helps prevent lambs and smaller livestock from passing through.
Hot-Dip Galvanised steel construction: Galvanising helps protect against corrosion and is built to handle exposure to outdoor conditions and demanding rural environments.
Practical farm access: The 8ft opening provides useful access for moving livestock and equipment between paddocks and other areas around the property.

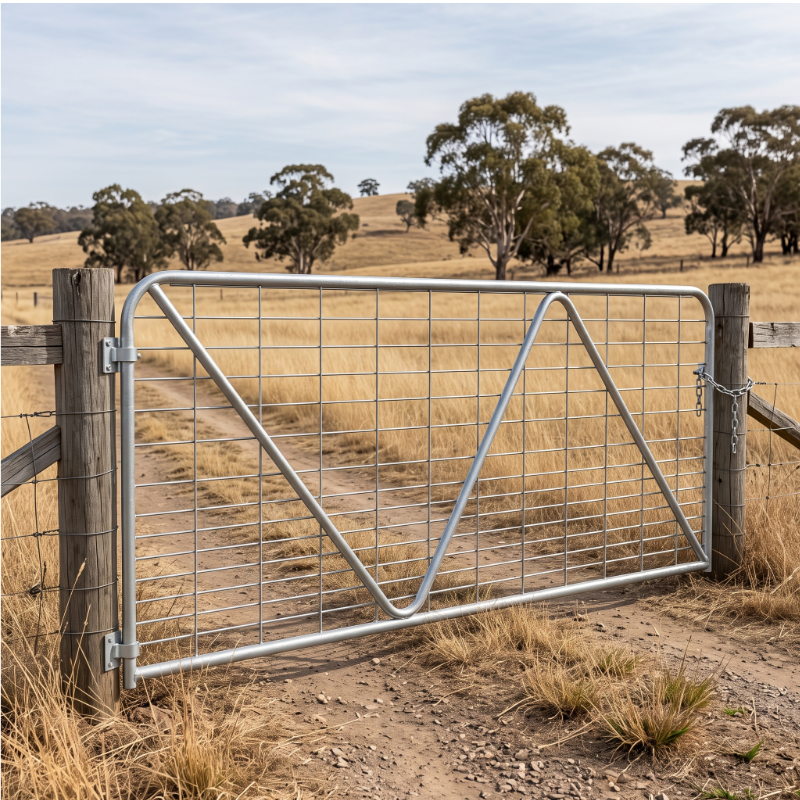

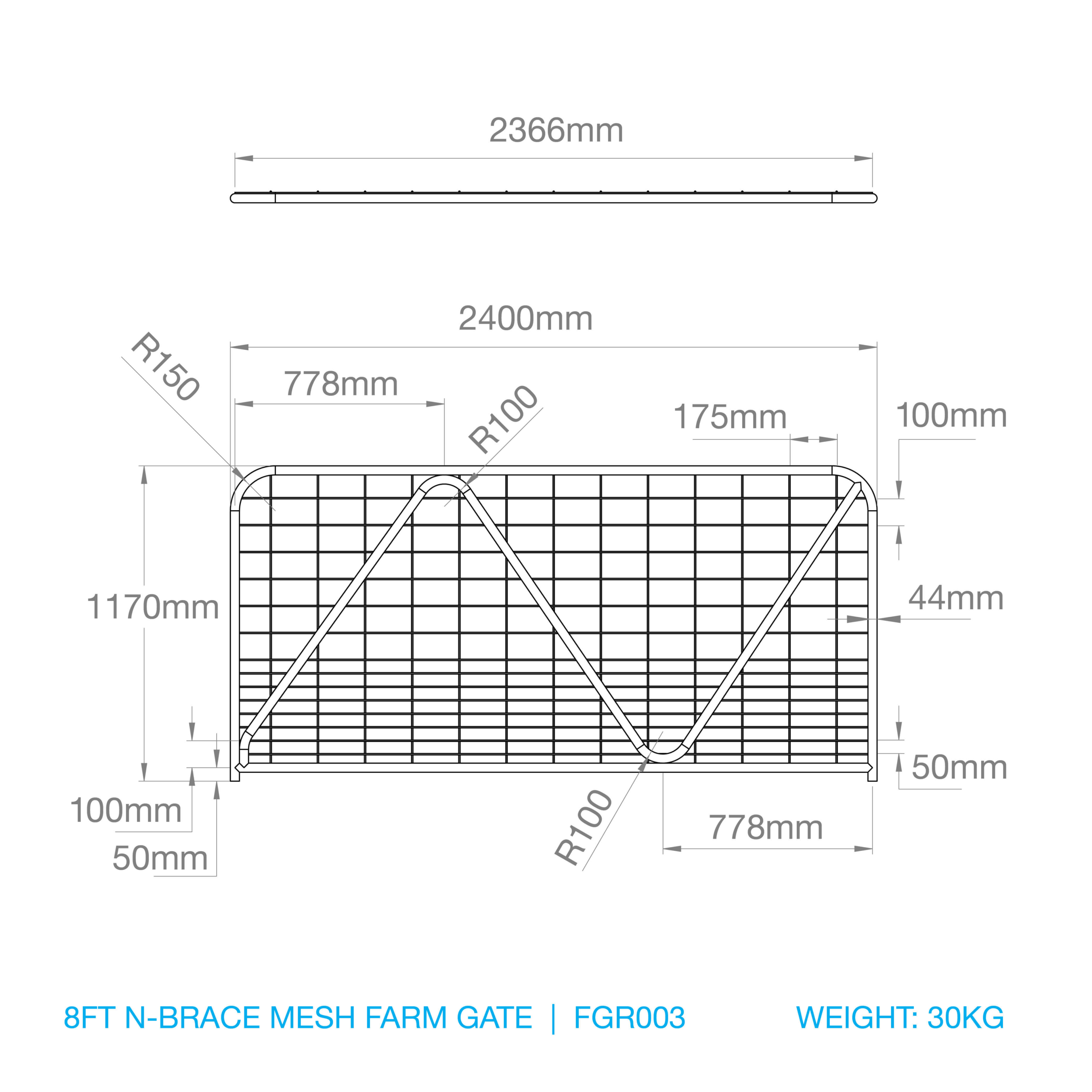

The FGR003 8ft N-Brace Mesh Farm Gate is designed for paddock entrances, livestock enclosures and general access points around farms and rural properties. The gate measures 2400mm wide x 1170mm high and is designed to suit an 8ft wide opening, allowing space for the hinges, latch and operating clearance required for installation. The wider opening provides useful access when moving livestock, equipment and other items between paddocks or work areas. Its sturdy tubular steel frame features N-style diagonal bracing for additional support across the wider span, while the welded mesh helps contain livestock without blocking visibility through the gate.
The FGR003 also features close-spaced mesh towards the bottom of the gate, which helps prevent lambs and smaller livestock from passing through the lower section. This provides additional containment closer to ground level while retaining the visibility and airflow of a mesh gate. The hot-dip galvanised steel construction helps protect against corrosion and is built to handle exposure to rain, moisture and demanding outdoor farm conditions. For installation onto a suitable timber gate post, the FGR003 can be paired with the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009), which provides adjustable through-post mounting and allows the gate position to be levelled and aligned during installation.
Product FAQs
The FGR003 is designed to suit an 8ft gate opening. The gate itself measures approximately 2400mm wide x 1170mm high. When planning your installation, you should also allow suitable clearance for the hinges, latch and correct movement of the gate.
The N-style brace uses diagonal reinforcement across the gate frame to provide additional structural support over the wider 2.4m span. This makes it a practical configuration for regular use around paddocks, livestock areas and farm access points.
Yes. The FGR003 is designed for farm, agricultural and livestock applications. Its 1.17m height and welded mesh infill provide a practical physical barrier for livestock areas. As with any livestock gate, suitability should be considered based on the size and behaviour of the animals you need to contain.
Yes. The FGR003 is manufactured from steel with a hot-dip galvanised finish, helping protect the gate against corrosion when exposed to outdoor and rural conditions. This makes it suitable for ongoing use around paddocks, farms and agricultural properties.
No, a hinge kit is not included with the gate. For installation onto a suitable timber gate post, see the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009). It uses adjustable through-post fittings designed for mounting compatible tubular farm gates to timber posts.
The FGR003 is suited to medium-sized paddock entrances, livestock enclosures and general access points around farms and rural properties. Its 8ft opening provides more access space than the smaller gates in the range while retaining the more enclosed barrier provided by welded mesh.
