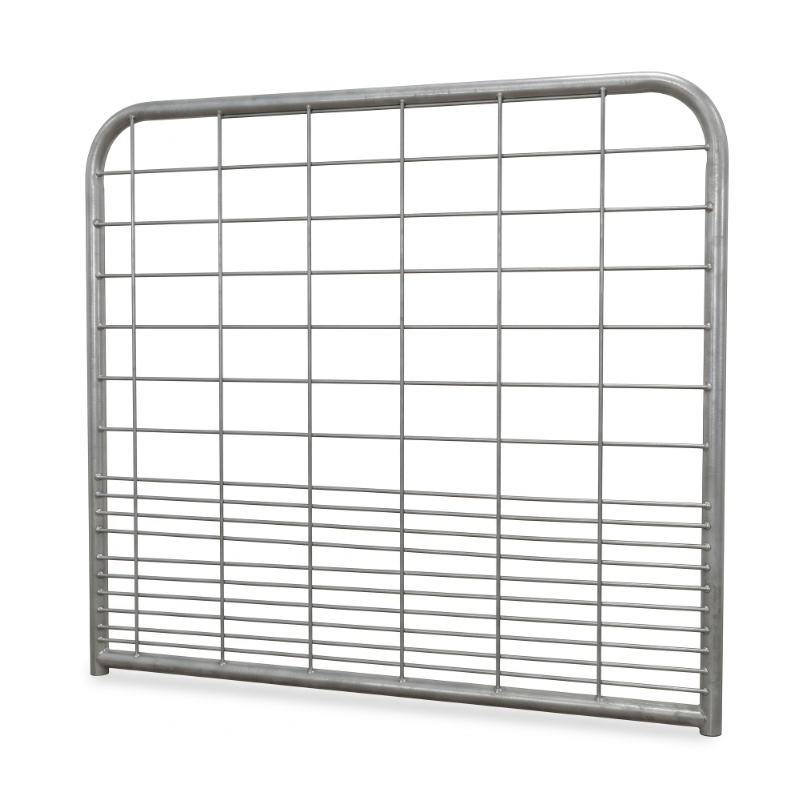

Galvanised steel 4ft mesh farm gate with close-spaced lower mesh, designed for livestock enclosures, pedestrian access and narrow openings on farms and rural properties.
Suits 4ft openings: Designed to fit a 4ft wide opening, making it a practical choice for narrow paddock entrances, walkways and livestock access points.
Strong tubular frame: Sturdy steel frame provides a durable gate structure suited to regular use around farms, paddocks and livestock areas.
Welded mesh infill: Mesh construction creates a more enclosed barrier for managing livestock while maintaining clear visibility through the gate.
Close-spaced lower mesh: Smaller mesh spacing towards the bottom of the gate helps prevent lambs and smaller livestock from passing through.
Hot-Dip Galvanised steel construction: Galvanised helps protect against corrosion and is built to handle exposure to outdoor conditions and demanding rural environments.
Practical livestock access: The compact mesh gate provides a convenient access point for livestock enclosures, paddocks and other areas where a wider vehicle gate is not required.

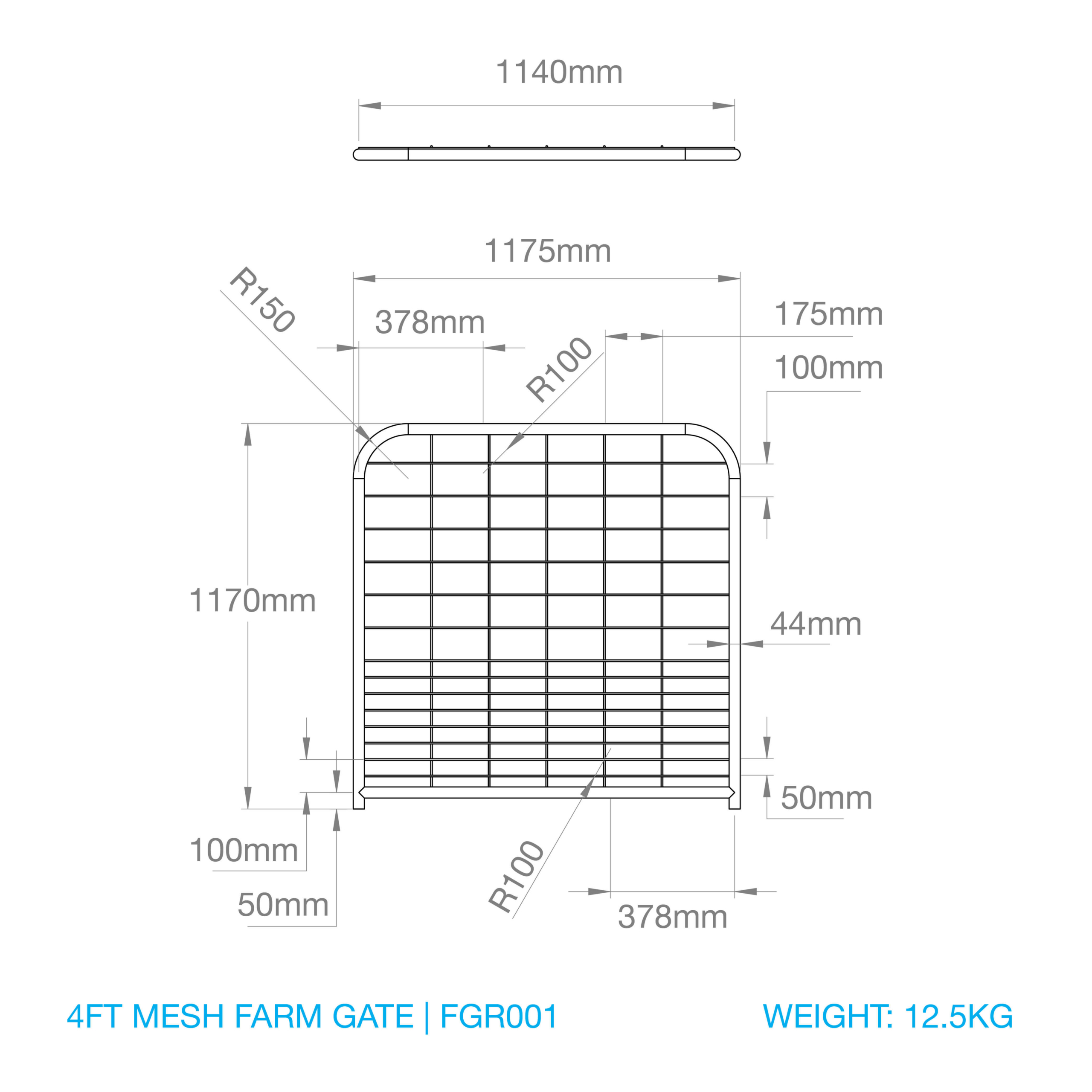

The FGR001 4ft Mesh Farm Gate is designed for narrow access points around farms, paddocks and livestock enclosures, providing a practical way to control access without requiring a larger farm gate. The gate measures 1175mm wide x 1170mm high and is designed to suit a 4ft wide opening, allowing space for the hinges, latch and operating clearance required for installation. Its compact size makes it well suited to pedestrian entry points, paddock walkways, livestock enclosures and smaller gateways used when moving animals between areas. The sturdy tubular steel frame is built for regular farm use, while the welded mesh helps contain livestock without blocking visibility through the gate.
A key feature of the FGR001 is the close-spaced mesh towards the bottom of the gate, which helps prevent lambs and smaller livestock from passing through the lower section. This makes it particularly useful in areas where smaller animals are being managed and larger openings close to ground level are undesirable. The hot-dip galvanised steel construction helps protect against corrosion and is built to handle exposure to rain, moisture and demanding outdoor farm conditions. For installation onto a suitable timber gate post, the FGR001 can be paired with the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009), which provides adjustable through-post mounting and allows the gate position to be levelled and aligned during installation.
Product FAQs
The 4ft measurement refers to the width of the opening the gate is designed to suit, rather than the physical width of the gate itself. The FGR001 measures approximately 1175mm wide x 1170mm high, allowing space within a 4ft opening for the hinge, latch and operating clearance required for installation.
Yes, the FGR001 is designed for farm, agricultural and livestock access applications. Its welded mesh provides a more enclosed barrier than an open farm gate. However, suitability will depend on the type and size of livestock being contained, so the 100 x 200mm mesh openings should be considered for your particular application.
The lower section uses closer-spaced mesh to help prevent lambs and smaller livestock from passing through the gate. This provides a more enclosed barrier closer to ground level while retaining visibility through the gate.
Yes. The steel gate has a hot-dip galvanised finish to provide corrosion resistance for outdoor conditions. This makes it suitable for ongoing use around farms, paddocks, livestock areas and other rural environments.
No, the gate does not include a hinge kit. For installation onto a suitable timber gate post, see the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009). The FGR009 uses adjustable through-post fittings designed for mounting compatible tubular farm gates to timber posts.
