Galvanised steel 14ft mesh farm gate with N-style bracing and close-spaced lower mesh, designed for livestock enclosures, wide paddock entrances and agricultural access.
Suits 14ft openings: Designed to fit a 14ft wide opening, providing generous access for paddock entrances, livestock movement and wider farm access points.

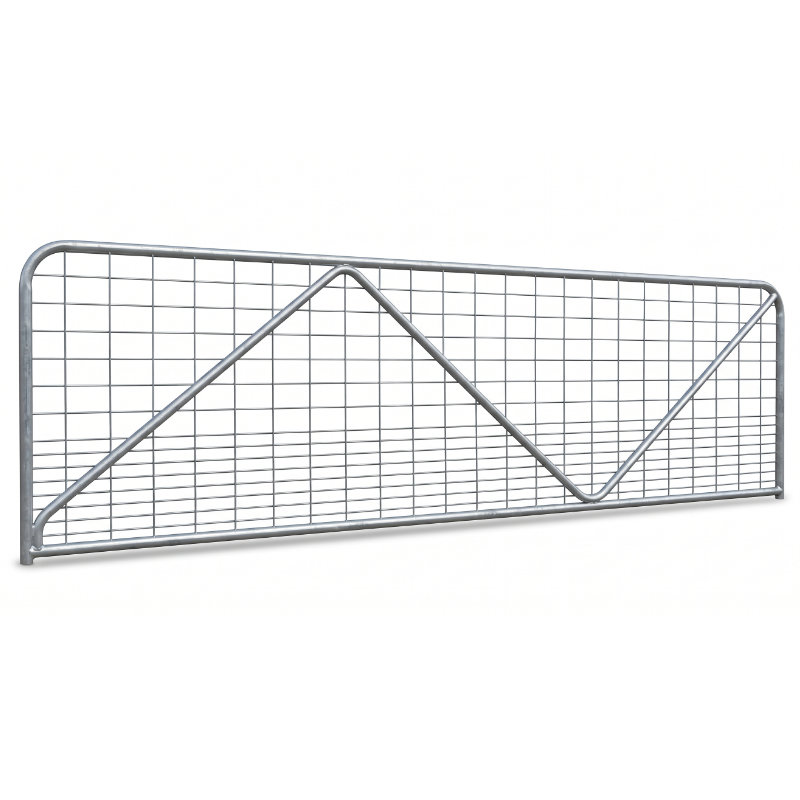

Strong N-brace frame: Sturdy tubular steel frame with diagonal N-style bracing provides additional support across the wider gate span for regular farm use.
Welded mesh infill: Mesh construction creates a more enclosed barrier for managing livestock while maintaining clear visibility through the gate.
Close-spaced lower mesh: Smaller mesh spacing towards the bottom of the gate helps prevent lambs and smaller livestock from passing through.
Hot-Dip Galvanised steel construction: Galvanising helps protect against corrosion and is built to handle exposure to outdoor conditions and demanding rural environments.
Wide farm access: The 14ft opening provides generous clearance for moving livestock, vehicles and larger farm equipment between paddocks and work areas.

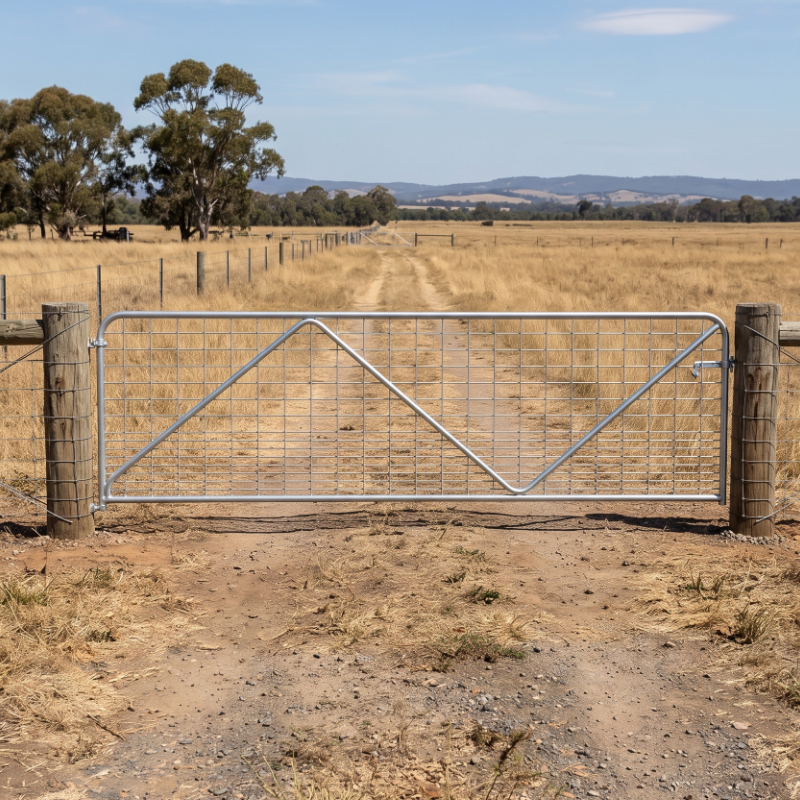

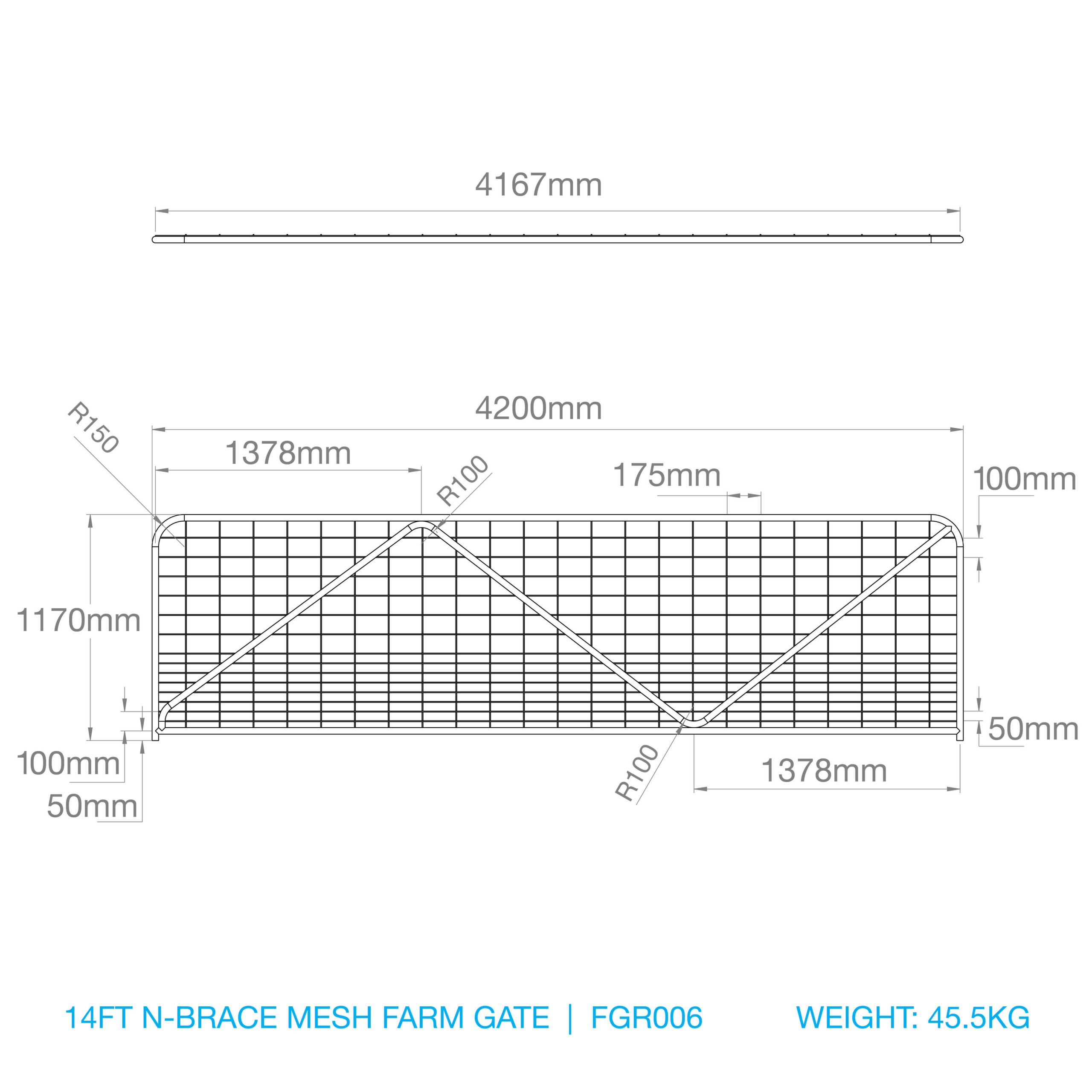

The FGR006 14ft N-Brace Mesh Farm Gate is designed for wide paddock entrances, livestock enclosures and agricultural access points around farms and rural properties. The gate measures 4200mm wide x 1170mm high and is designed to suit a 14ft wide opening, allowing space for the hinges, latch and operating clearance required for installation. The wide opening provides generous access for moving livestock, vehicles and larger farm equipment between paddocks and work areas. Its sturdy tubular steel frame features N-style diagonal bracing for additional support across the wider span, while the welded mesh helps contain livestock without blocking visibility through the gate.
The FGR006 also features close-spaced mesh towards the bottom of the gate, which helps prevent lambs and smaller livestock from passing through the lower section. This provides additional containment closer to ground level and makes the gate practical for access points that are also used to manage livestock. The hot-dip galvanised steel construction helps protect against corrosion and is built to handle exposure to rain, moisture and demanding outdoor farm conditions. For installation onto a suitable timber gate post, the FGR006 can be paired with the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009), which provides adjustable through-post mounting and allows the gate position to be levelled and aligned during installation.
Product FAQs
The 14ft measurement refers to the width of the opening the gate is designed to suit, rather than the physical width of the gate itself. The FGR006 measures approximately 4200mm wide x 1170mm high, allowing space within a 14ft opening for the hinge, latch and operating clearance required for installation.
The N-style brace provides additional support across the gate frame, helping reinforce the wider 14ft span. This provides a sturdy gate structure suited to regular use across wide paddock entrances, livestock areas and agricultural access points.
The lower section uses closer-spaced mesh to help prevent lambs and smaller livestock from passing through the gate. This provides a more enclosed barrier closer to ground level while retaining visibility through the gate.
The FGR006 is designed to suit a 14ft wide opening, providing generous clearance for wider farm access applications. It can be used for vehicles, trailers, tractors and other farm equipment where the available opening provides sufficient clearance. Always check the overall width of the vehicle or equipment, including attachments, before selecting a gate size.
Yes. The steel gate has a hot-dip galvanised finish to provide corrosion resistance for outdoor conditions. This makes it suitable for ongoing use around farms, paddocks, livestock areas and other rural environments.
No, a hinge kit is not included with the gate. For installation onto a suitable timber gate post, see the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009). It uses adjustable through-post fittings designed for mounting compatible tubular farm gates to timber posts.
