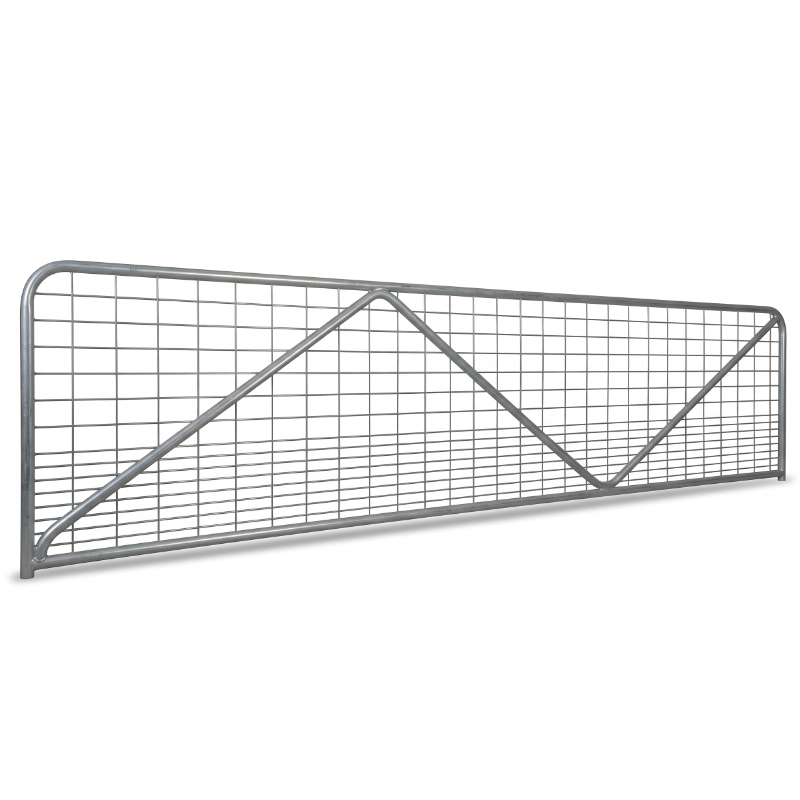

Galvanised steel 16ft mesh farm gate with N-style bracing and close-spaced lower mesh, designed for livestock enclosures, large paddock entrances and wide agricultural access points.
Suits 16ft openings: Designed to fit a 16ft wide opening, providing generous access for large paddock entrances, livestock movement and wider farm access points.
Strong N-brace frame: Sturdy tubular steel frame with diagonal N-style bracing provides additional support across the wider gate span for regular farm use.
Welded mesh infill: Mesh construction creates a more enclosed barrier for managing livestock while maintaining clear visibility through the gate.
Close-spaced lower mesh: Smaller mesh spacing towards the bottom of the gate helps prevent lambs and smaller livestock from passing through.
Hot-Dip Galvanised steel construction: Galvanising helps protect against corrosion and is built to handle exposure to outdoor conditions and demanding rural environments.
Wide farm access: The 16ft opening provides generous clearance for moving livestock, vehicles and larger agricultural equipment between paddocks and work areas.

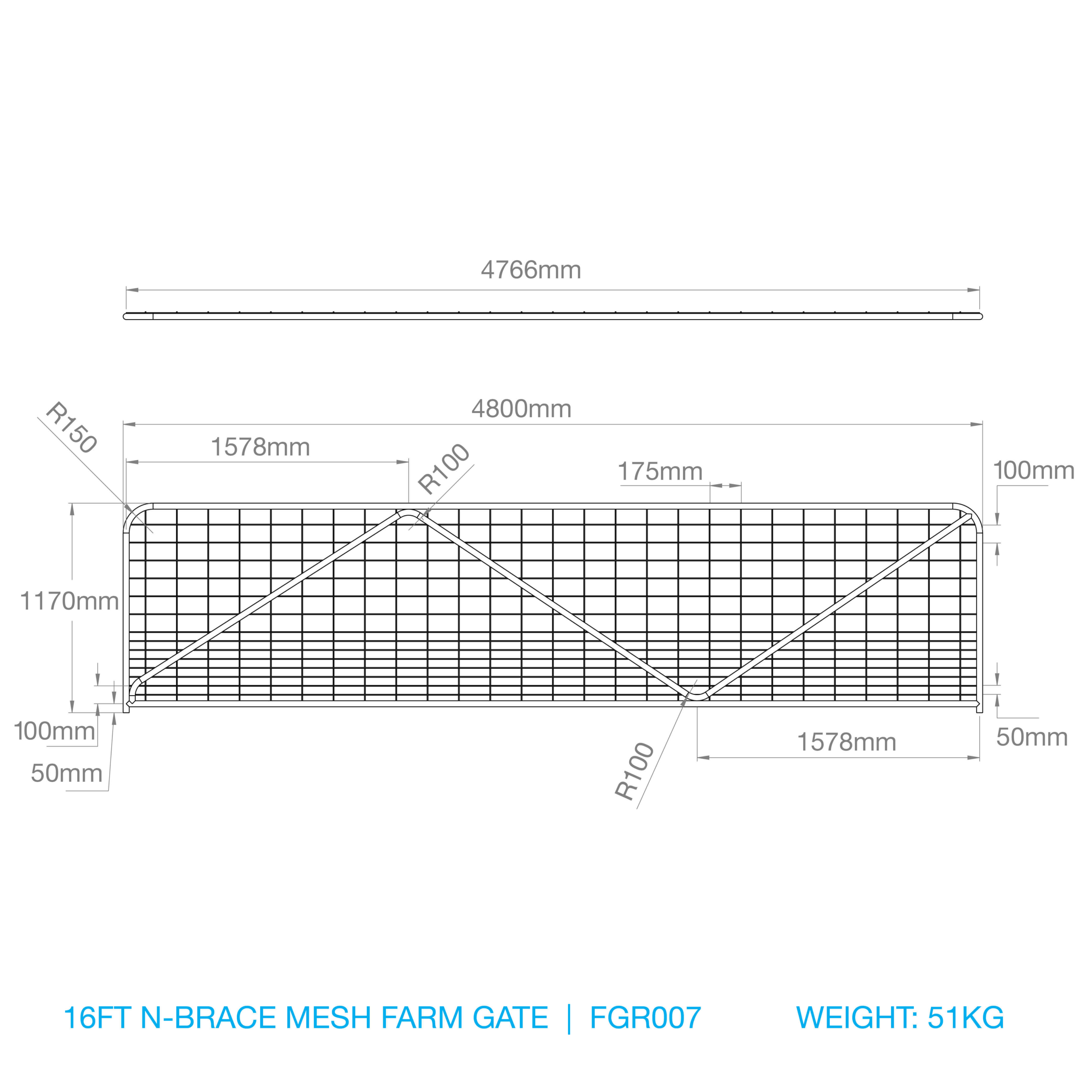

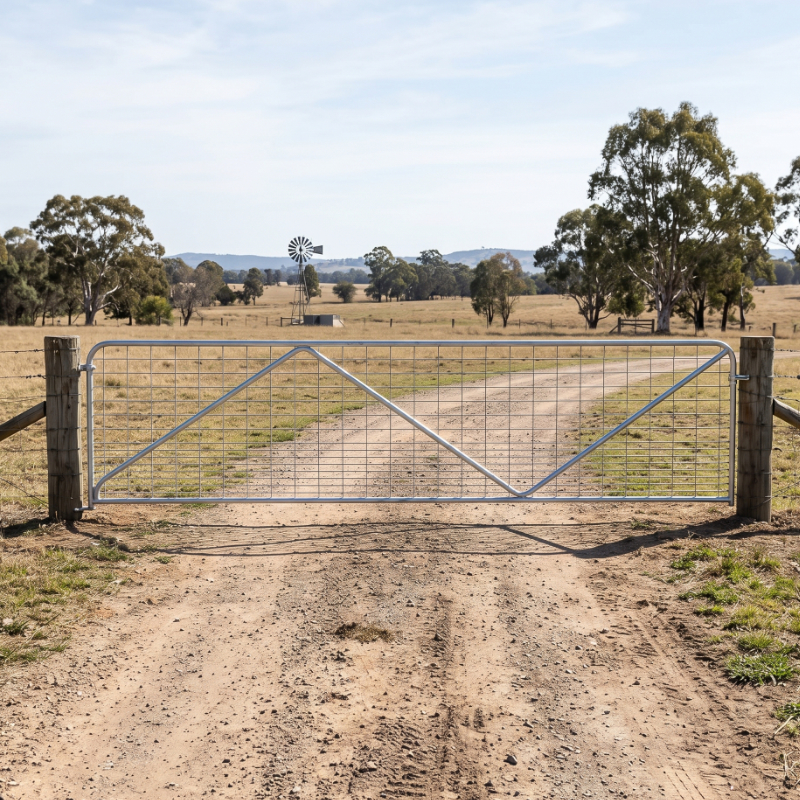

The FGR007 16ft N-Brace Mesh Farm Gate is designed for large paddock entrances, livestock enclosures and wide agricultural access points around farms and rural properties. The gate measures 4800mm wide x 1170mm high and is designed to suit a 16ft wide opening, allowing space for the hinges, latch and operating clearance required for installation. The wide opening provides generous access for moving livestock, vehicles, trailers and larger agricultural equipment between paddocks and work areas. Its sturdy tubular steel frame features N-style diagonal bracing for additional support across the wider span, while the welded mesh helps contain livestock without blocking visibility through the gate.
The FGR007 also features close-spaced mesh towards the bottom of the gate, which helps prevent lambs and smaller livestock from passing through the lower section. This provides additional containment closer to ground level, making the gate practical for wide entrances that also form part of a livestock enclosure or paddock boundary. The hot-dip galvanised steel construction helps protect against corrosion and is built to handle exposure to rain, moisture and demanding outdoor farm conditions. For installation onto a suitable timber gate post, the FGR007 can be paired with the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009), which provides adjustable through-post mounting and allows the gate position to be levelled and aligned during installation.
Product FAQs
The 16ft measurement refers to the width of the opening the gate is designed to suit, rather than the physical width of the gate itself. The FGR007 measures approximately 4800mm wide x 1170mm high, allowing space within a 16ft opening for the hinge, latch and operating clearance required for installation.
The N-style brace provides additional support across the gate frame, helping reinforce the wider 16ft span. This provides a sturdy gate structure suited to regular use across large paddock entrances, livestock areas and agricultural access points.
Yes, the FGR007 is designed for farm, agricultural and livestock access applications. Its welded mesh provides a more enclosed barrier than an open farm gate. Suitability will depend on the type and size of livestock being contained, so the mesh openings should be considered for your particular application.
The lower section uses closer-spaced mesh to help prevent lambs and smaller livestock from passing through the gate. This provides a more enclosed barrier closer to ground level while retaining visibility through the gate.
The FGR007 is designed to suit a 16ft wide opening, providing generous clearance for wide farm access applications. It can be used for vehicles, trailers, tractors and larger agricultural equipment where sufficient clearance is available. Always check the overall width of the vehicle or equipment, including attachments, before selecting a gate size.
Yes. The steel gate has a hot-dip galvanised finish to provide corrosion resistance for outdoor conditions. This makes it suitable for ongoing use around farms, paddocks, livestock areas and other rural environments.
No, a hinge kit is not included with the gate. For installation onto a suitable timber gate post, see the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009). It uses adjustable through-post fittings designed for mounting compatible tubular farm gates to timber posts.
