Galvanised steel 6ft farm gate with I-style bracing and open cross bars, designed for paddock entrances, livestock areas and general access around farms and rural properties.
Suits 6ft openings: Designed to fit a 6ft wide opening, making it a practical choice for paddock entrances, livestock areas and general farm access points.
Strong I-brace frame: Sturdy tubular steel frame with I-style bracing provides additional support across the gate for regular farm use.
Open cross-bar design: Horizontal cross bars create a practical physical barrier while keeping the gate open and easy to see through.
No mesh infill: Open construction makes the FGR008 a suitable option where the additional containment provided by a mesh gate is not required.
Hot-Dip Galvanised steel construction: Galvanising helps protect against corrosion and is built to handle exposure to outdoor conditions and demanding rural environments.
Practical farm access: The 6ft opening provides useful access for paddocks, livestock areas and everyday movement around farms and rural properties.

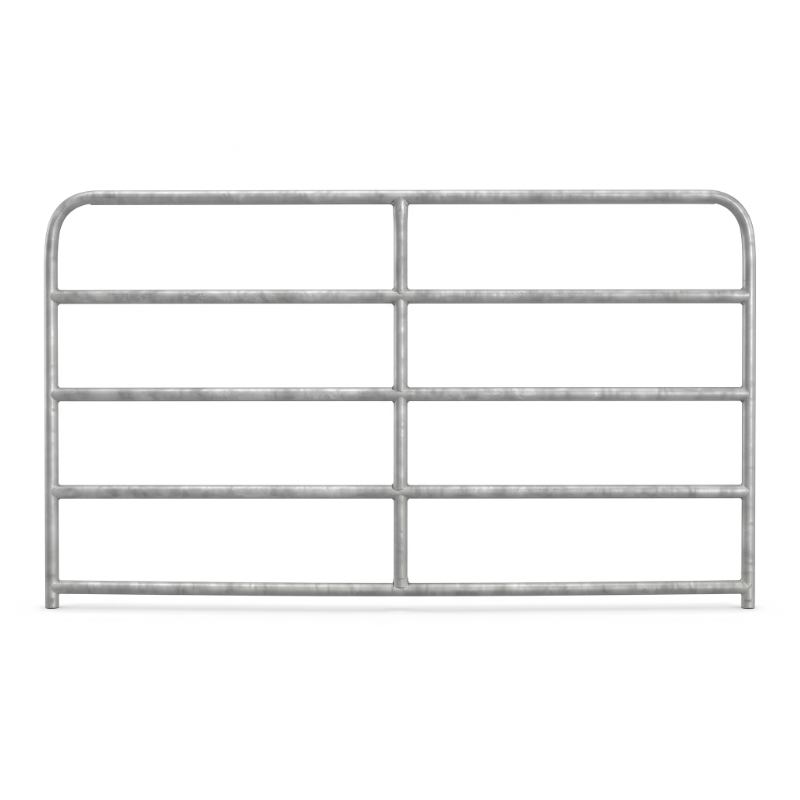

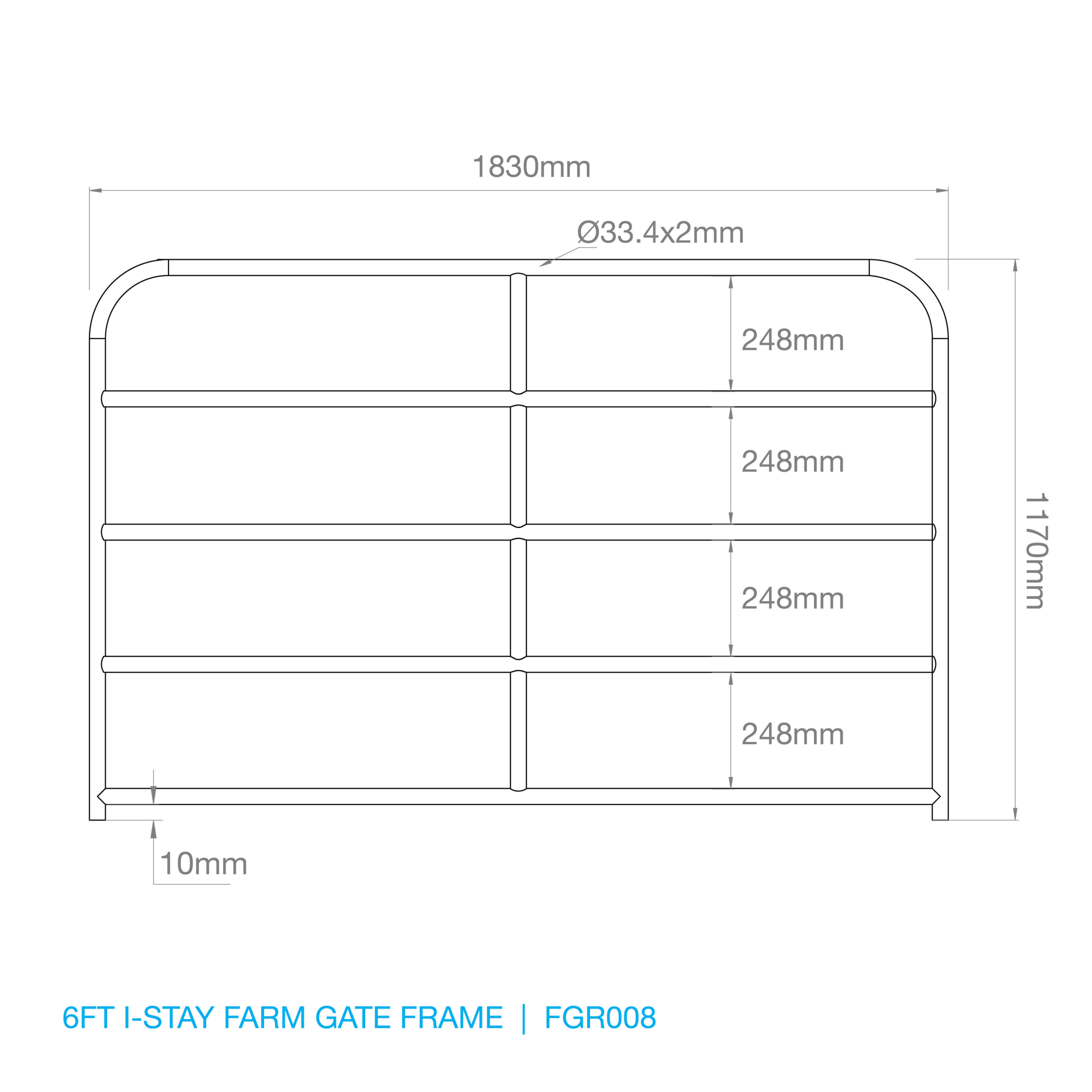

The FGR008 6ft I-Brace Farm Gate is designed for paddock entrances, livestock areas and general access points around farms and rural properties. The gate measures 1830mm wide x 1170mm high and is designed to suit a 6ft wide opening, allowing space for the hinges, latch and operating clearance required for installation. Its sturdy tubular steel frame features I-style bracing for additional support, while the horizontal cross bars provide a straightforward physical barrier for everyday farm access.

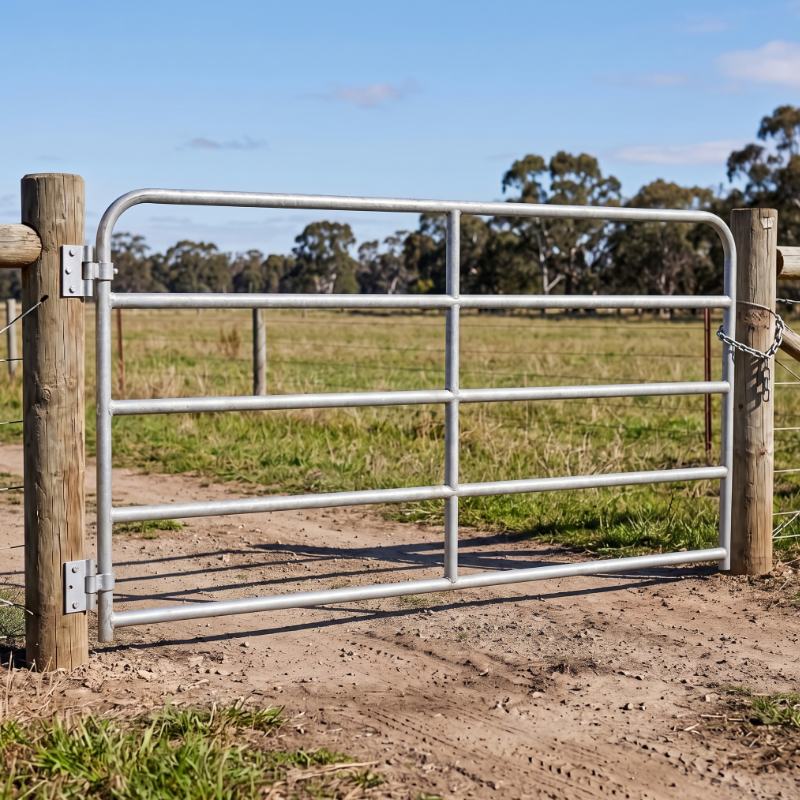

Unlike the mesh gates in the range, the FGR008 uses an open cross-bar design with no mesh infill. This makes it a practical choice for applications where a mesh barrier is not required and provides clear visibility through the gateway. The hot-dip galvanised steel construction helps protect against corrosion and is built to handle exposure to rain, moisture and demanding outdoor farm conditions. For installation onto a suitable timber gate post, the FGR008 can be paired with the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009), which provides adjustable through-post mounting and allows the gate position to be levelled and aligned during installation.
Product FAQs
The 6ft measurement refers to the width of the opening the gate is designed to suit, rather than the physical width of the gate itself. The FGR008 measures approximately 1830mm wide x 1170mm high, allowing space within a 6ft opening for the hinge, latch and operating clearance required for installation.
The I-style brace provides additional support through the gate frame, helping reinforce the wider 6ft span. This provides a sturdy gate structure suited to regular use around paddocks and general farm access points.
No. The FGR008 has an open cross-bar design without mesh infill. It is intended for applications where an open farm gate is suitable and the additional containment provided by welded mesh is not required. For a 6ft farm gate with mesh, see the 6ft I-Stay Farm Gate 1830x1170mm (FGR002).
No, the gate does not include a hinge kit. For installation onto a suitable timber gate post, see the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009). The FGR009 uses adjustable through-post fittings and is suitable for mounting the FGR008 to a timber gate post.
The FGR008 can be used around livestock areas where an open cross-bar gate is appropriate. Because it does not have mesh infill, suitability will depend on the type and size of livestock being contained. For smaller livestock or applications requiring a more enclosed barrier, a mesh farm gate such as the FGR002 may be more appropriate.
Yes. The gate features hot-dip galvanised steel construction to help protect against corrosion in outdoor and rural conditions, making it suitable for regular use around farms, paddocks and agricultural properties.
Brace Type
I Style
Height (mm)
1170
Width (mm)
1830
Depth (mm)
44
Pipe Dimensions
OD 33.4mm, 25 x 2mm pipe
Infill
Cross bars only, no mesh
Finish
Hot-Dip Galvanised Steel
Suits Opening
6 ft (1829mm)
Add a review
6ft I-Brace Farm Gate No Mesh 1830x1170mm (FGR008)
