Galvanised steel 6ft mesh farm gate with I-style bracing and close-spaced lower mesh, designed for livestock enclosures, paddock entrances and general farm access.
Suits 6ft openings: Designed to fit a 6ft wide opening, making it a practical choice for paddock entrances, livestock areas and general farm access points.
Strong I-stay frame: Sturdy tubular steel frame with I-style bracing provides additional support across the wider gate span for regular farm use.
Welded mesh infill: Mesh construction creates a more enclosed barrier for managing livestock while maintaining clear visibility through the gate.
Close-spaced lower mesh: Smaller mesh spacing towards the bottom of the gate helps prevent lambs and smaller livestock from passing through.
Hot-Dip Galvanised steel construction: Galvanising helps protect against corrosion and is built to handle exposure to outdoor conditions and demanding rural environments.
Practical farm access: The 6ft opening provides additional access space for moving livestock and equipment while remaining practical for everyday paddock access.

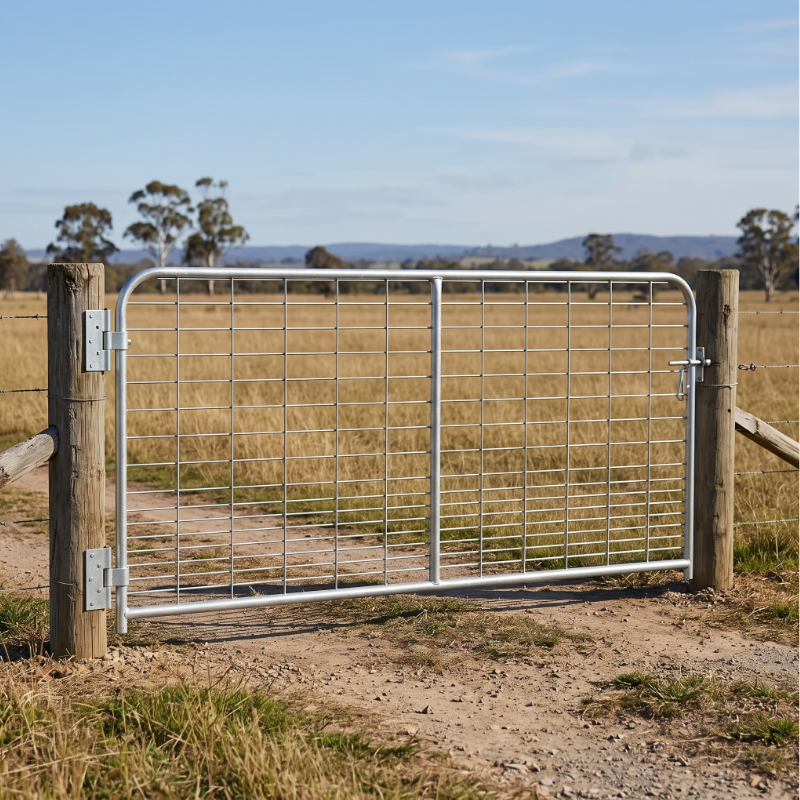

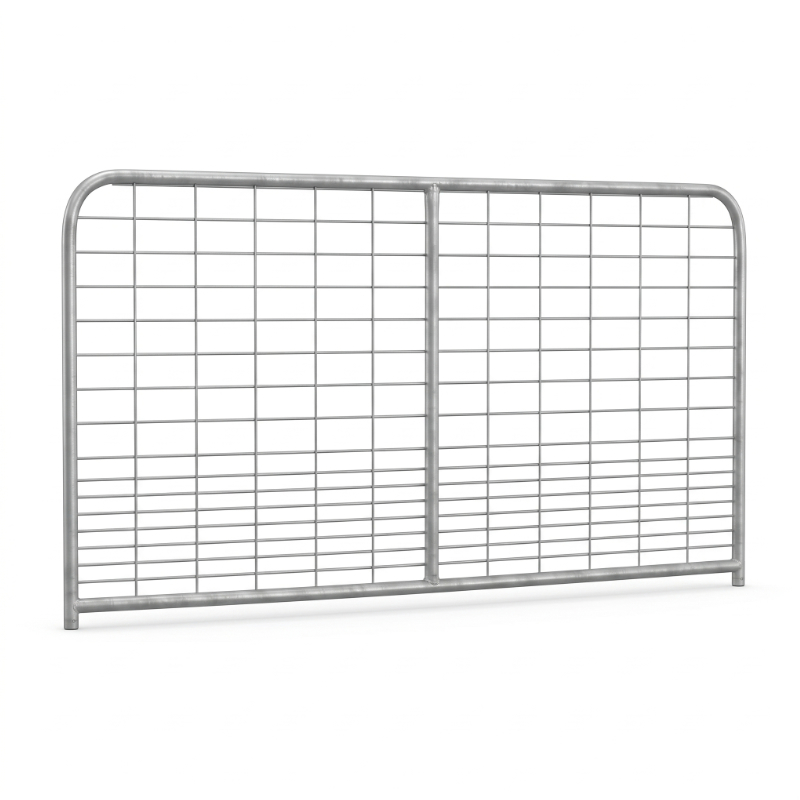

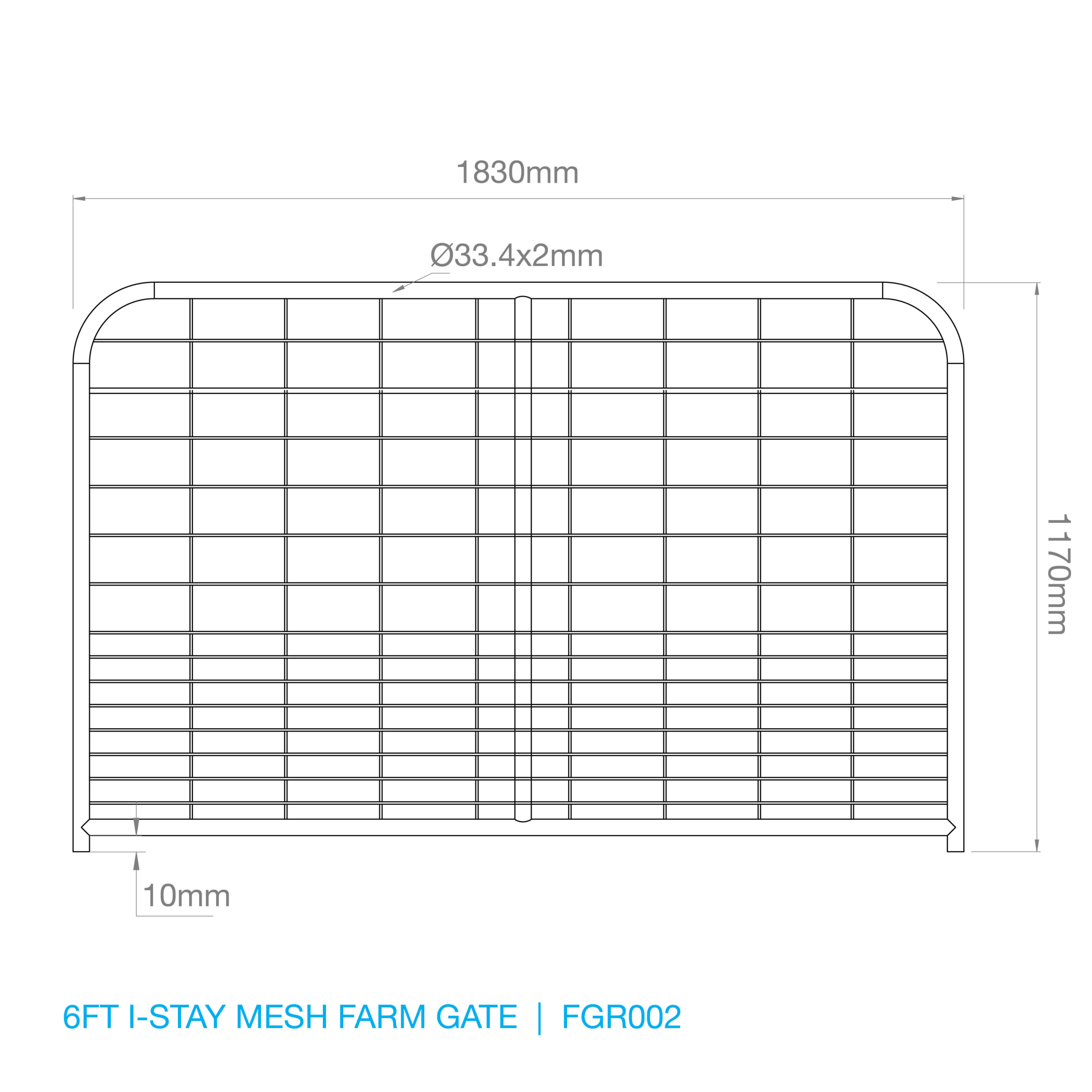

The FGR002 6ft I-Stay Farm Gate is designed for paddock entrances, livestock enclosures and general access points around farms and rural properties. The gate measures 1830mm wide x 1170mm high and is designed to suit a 6ft wide opening, allowing space for the hinges, latch and operating clearance required for installation. The additional width provides more room for moving livestock and equipment through the gateway compared with a smaller pedestrian-style gate. Its sturdy tubular steel frame incorporates an I-style stay for additional support across the gate, while the welded mesh helps contain livestock without blocking visibility through the entrance.
The FGR002 also features close-spaced mesh towards the bottom of the gate, helping prevent lambs and smaller livestock from passing through the lower section. This makes it a practical choice for livestock areas where larger openings close to ground level may be unsuitable. The hot-dip galvanised steel construction helps protect against corrosion and is built to handle exposure to rain, moisture and demanding outdoor farm conditions. For installation onto a suitable timber gate post, the FGR002 can be paired with the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009), which provides adjustable through-post mounting and allows the gate position to be levelled and aligned during installation.
Product FAQs
The 4ft measurement refers to the width of the opening the gate is designed to suit, rather than the physical width of the gate itself. The FGR001 measures approximately 1175mm wide x 1170mm high, allowing space within a 4ft opening for the hinge, latch and operating clearance required for installation.
Yes, the FGR001 is designed for farm, agricultural and livestock access applications. Its welded mesh provides a more enclosed barrier than an open farm gate. However, suitability will depend on the type and size of livestock being contained, so the 100 x 200mm mesh openings should be considered for your particular application.
The lower section uses closer-spaced mesh to help prevent lambs and smaller livestock from passing through the gate. This provides a more enclosed barrier closer to ground level while retaining visibility through the gate.
Yes. The steel gate has a hot-dip galvanised finish to provide corrosion resistance for outdoor conditions. This makes it suitable for ongoing use around farms, paddocks, livestock areas and other rural environments.
No, the gate does not include a hinge kit. For installation onto a suitable timber gate post, see the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009). The FGR009 uses adjustable through-post fittings designed for mounting compatible tubular farm gates to timber posts.
