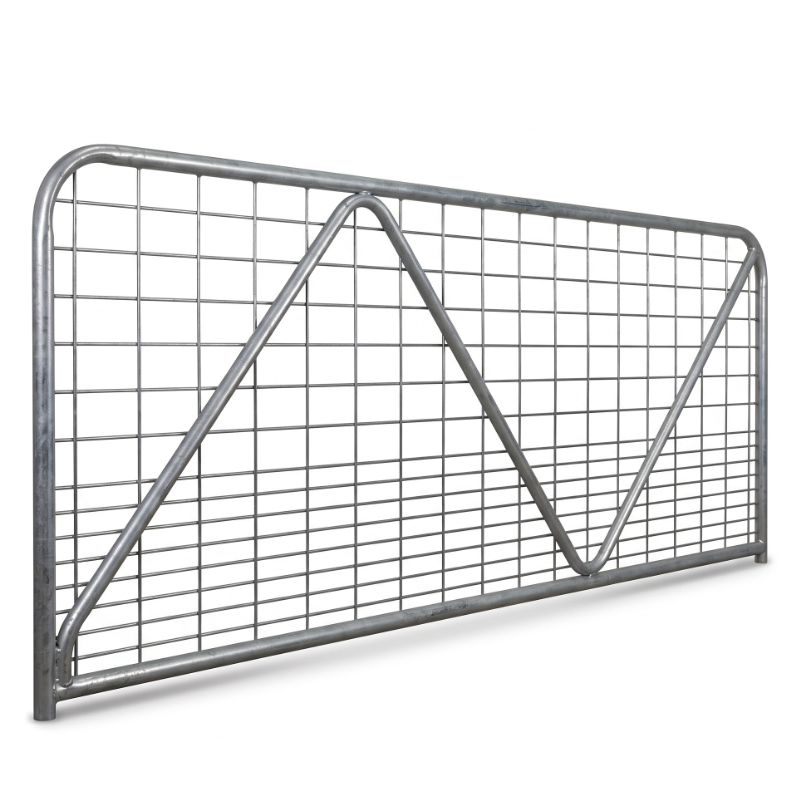

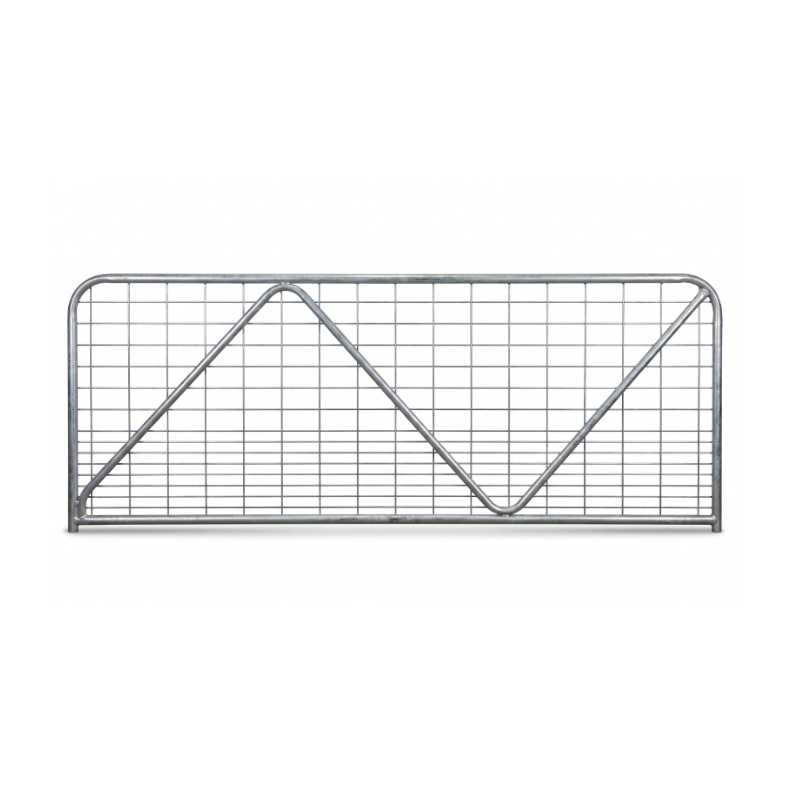

Galvanised steel 10ft mesh farm gate with N-style bracing and close-spaced lower mesh, designed for livestock enclosures, wider paddock entrances and general farm access.
Suits 10ft openings: Designed to fit a 10ft wide opening, providing practical access for paddock entrances, livestock areas and general farm access points.
Strong N-brace frame: Sturdy tubular steel frame with diagonal N-style bracing provides additional support across the wider gate span for regular farm use.
Welded mesh infill: Mesh construction creates a more enclosed barrier for managing livestock while maintaining clear visibility through the gate.
Close-spaced lower mesh: Smaller mesh spacing towards the bottom of the gate helps prevent lambs and smaller livestock from passing through.
Hot-Dip Galvanised steel construction: Galvanising helps protect against corrosion and is built to handle exposure to outdoor conditions and demanding rural environments.
Wider farm access: The 10ft opening provides additional clearance for moving livestock, equipment and vehicles between paddocks and other areas around the property.

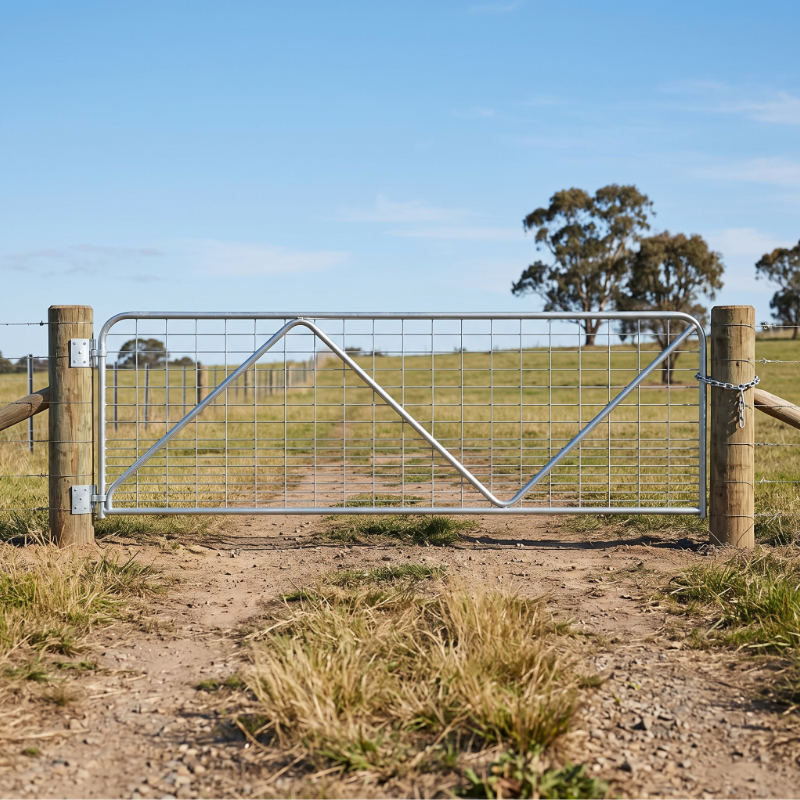

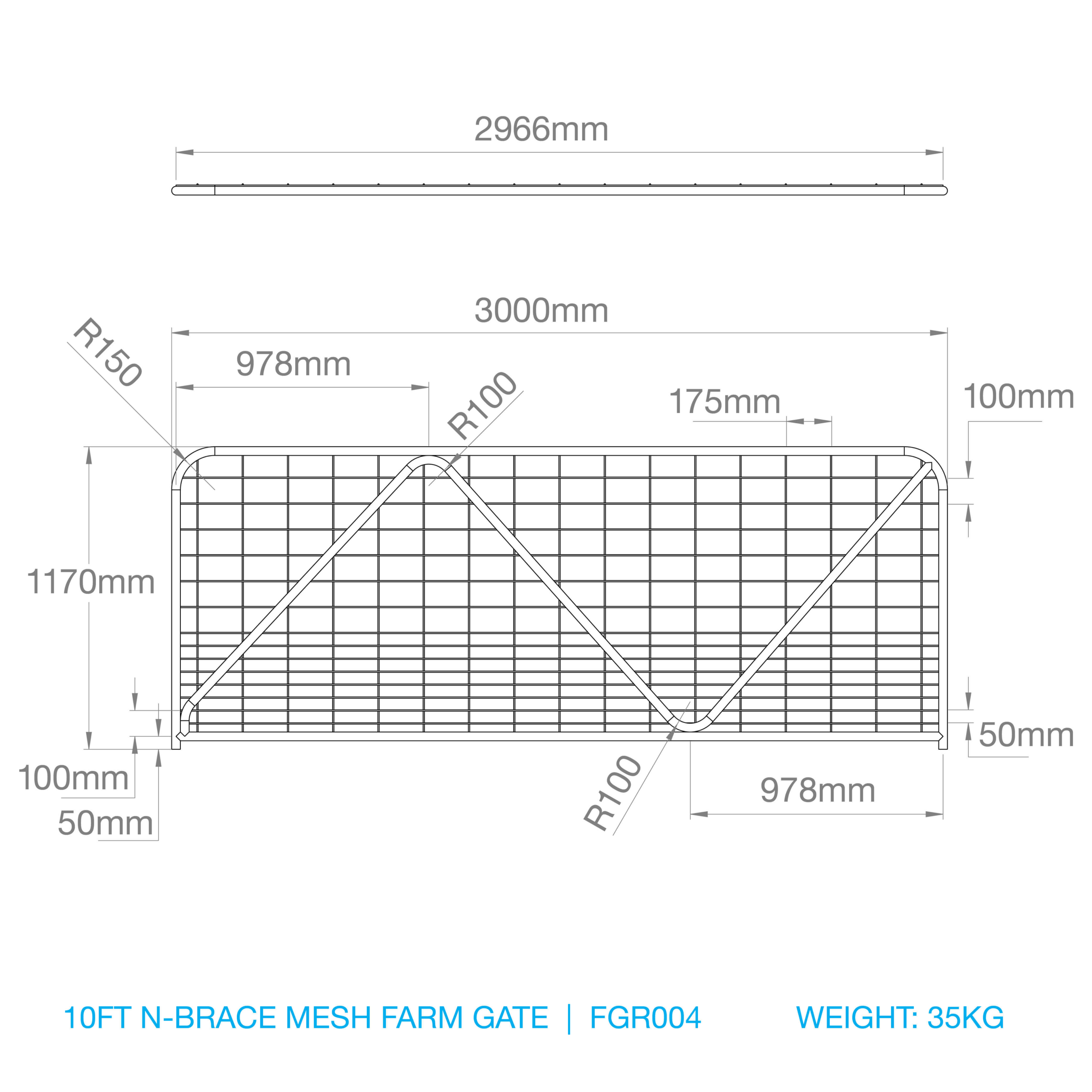

The FGR004 10ft N-Brace Mesh Farm Gate is designed for wider paddock entrances, livestock enclosures and general access points around farms and rural properties. The gate measures 3000mm wide x 1170mm high and is designed to suit a 10ft wide opening, allowing space for the hinges, latch and operating clearance required for installation. The wider opening provides useful clearance for moving livestock, equipment and vehicles between paddocks and work areas. Its sturdy tubular steel frame features N-style diagonal bracing for additional support across the wider span, while the welded mesh helps contain livestock without blocking visibility through the gate.
The FGR004 also features close-spaced mesh towards the bottom of the gate, which helps prevent lambs and smaller livestock from passing through the lower section. This provides additional containment closer to ground level and makes the gate useful across a range of livestock areas. The hot-dip galvanised steel construction helps protect against corrosion and is built to handle exposure to rain, moisture and demanding outdoor farm conditions. For installation onto a suitable timber gate post, the FGR004 can be paired with the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009), which provides adjustable through-post mounting and allows the gate position to be levelled and aligned during installation.
Product FAQs
The 10ft measurement refers to the width of the opening the gate is designed to suit, rather than the physical width of the gate itself. The FGR004 measures approximately 3000mm wide x 1170mm high, allowing space within a 10ft opening for the hinge, latch and operating clearance required for installation.
The N-style brace provides additional support across the gate frame, helping reinforce the wider 10ft span. This provides a sturdy gate structure suited to regular use around paddocks, livestock areas and general farm access points.
Yes, the FGR004 is designed for farm, agricultural and livestock access applications. Its welded mesh provides a more enclosed barrier than an open farm gate. Suitability will depend on the type and size of livestock being contained, so the mesh openings should be considered for your particular application.
The lower section uses closer-spaced mesh to help prevent lambs and smaller livestock from passing through the gate. This provides a more enclosed barrier closer to ground level while retaining visibility through the gate.
Yes. The steel gate has a hot-dip galvanised finish to help protect against corrosion when exposed to outdoor and rural conditions. This makes it suitable for ongoing use around paddocks, livestock areas and other farm access points.
No, a hinge kit is not included with the gate. For installation onto a suitable timber gate post, see the Heavy Duty Farm Gate Hinge Kit for Timber Posts (FGR009). It uses adjustable through-post fittings designed for mounting compatible tubular farm gates to timber posts.
