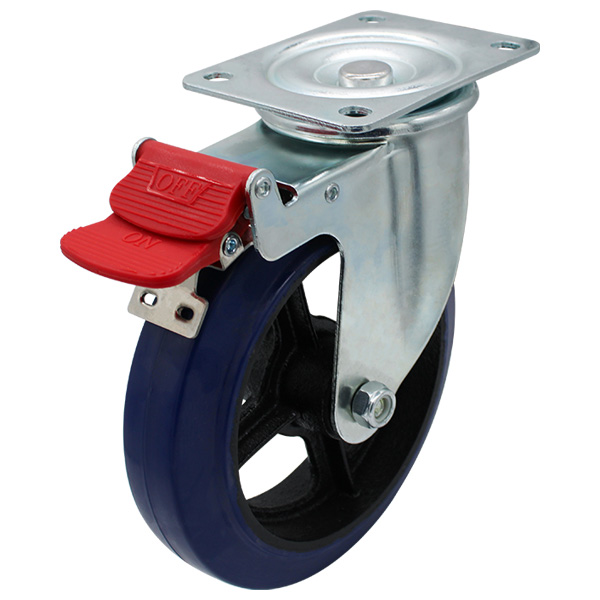

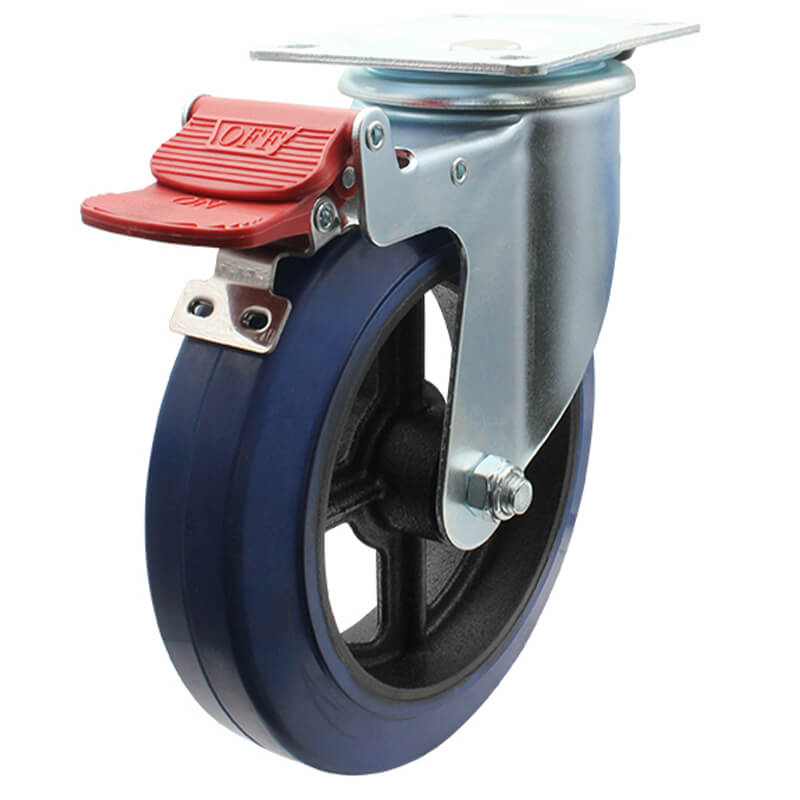

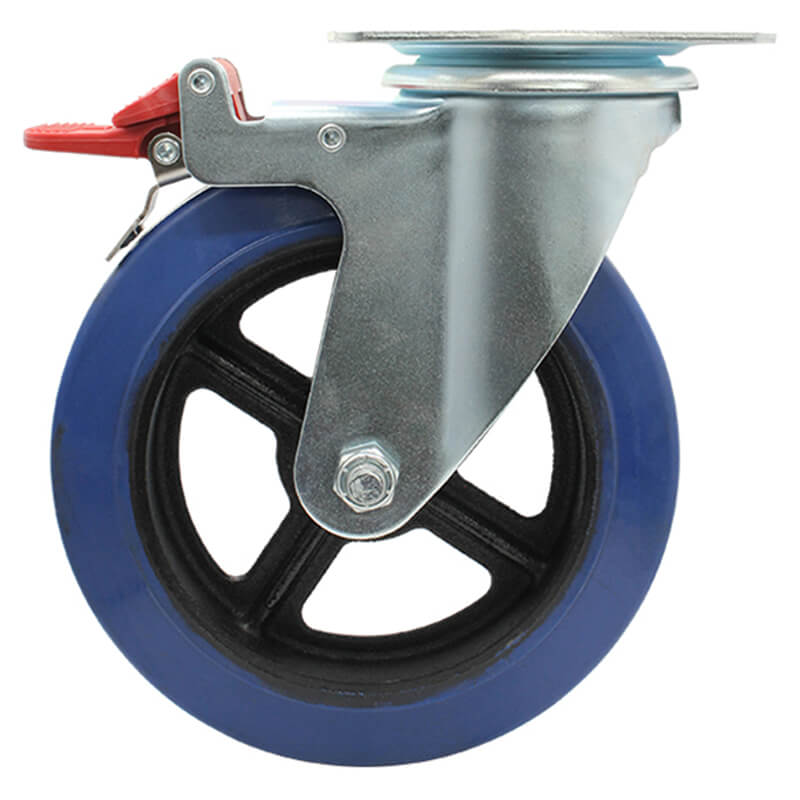

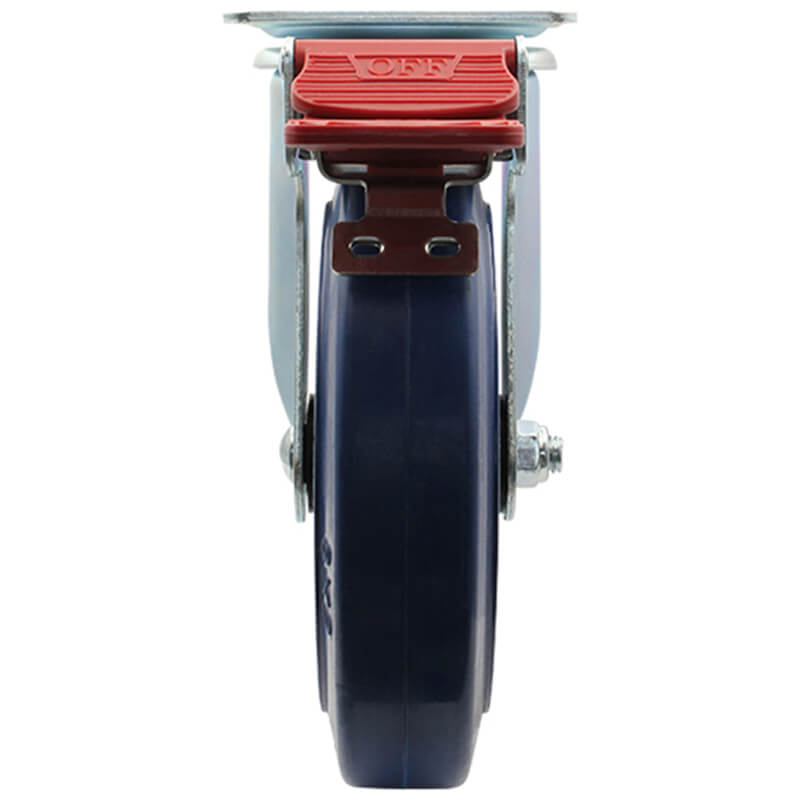

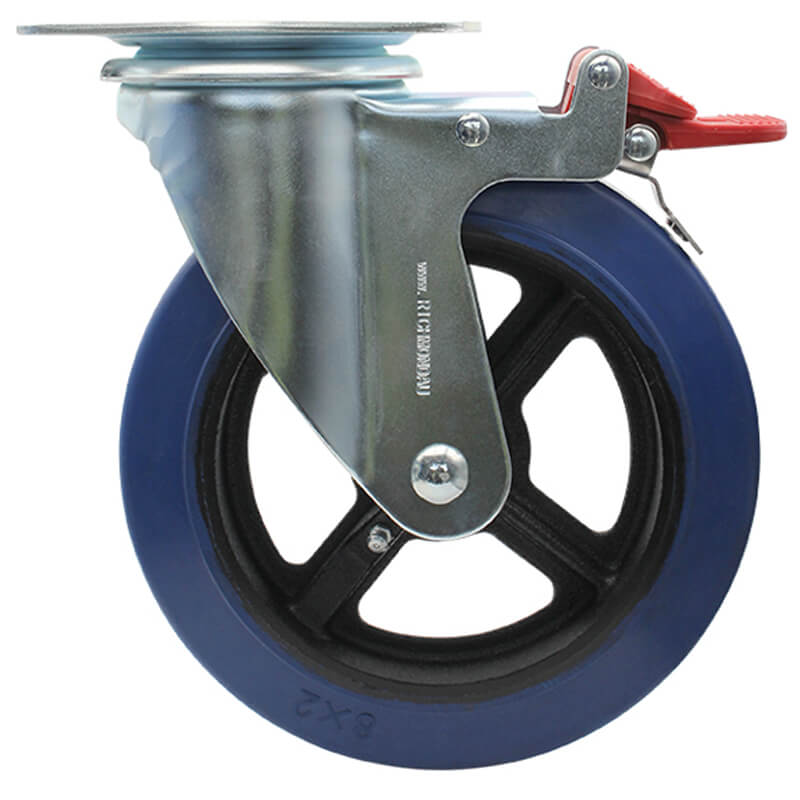

The S8040B manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with a rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 250kg. The S8040B uses roller bearings for wheel rotation and is baseplate mount. The swivel frame design of this castor allows the castor to swivel 360°. The diameter of the rubber wheel is 200mm, the wheel width is 50mm and can be ordered separately (RT8842). To order this castor without a brake, search for S8040.
200mm Rubber Tyred Cast Iron Centred Wheel, 250kg Capacity Swivel Brake Castor (S8040B)
Frame Type: Rigid
$87.88 ex. GST
$96.67 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S8040B manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with a rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 250kg. The S8040B uses roller bearings for wheel rotation and is baseplate mount. The swivel frame design of this castor allows the castor to swivel 360°. The diameter of the rubber wheel is 200mm, the wheel width is 50mm and can be ordered separately (RT8842). To order this castor without a brake, search for S8040.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S8040B |
|---|---|
| Wheel Diameter (mm) | 200 mm |
| Frame Type | Swivel Brake |
| Wheel Width (mm) | 50 mm |
| Wheel Type | Rubber Tyred Cast Iron Centred |
| Wheel Code | RT8842 |
| Wheel Bearing Type | Roller Bearing |
| Castor Height (mm) | 237 mm |
| Swivel Radius (mm) | 170 mm |
| Maximum Load Capacity (kg) | 250 kg |
| Recommended Load Capacity (kg) | 225 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
