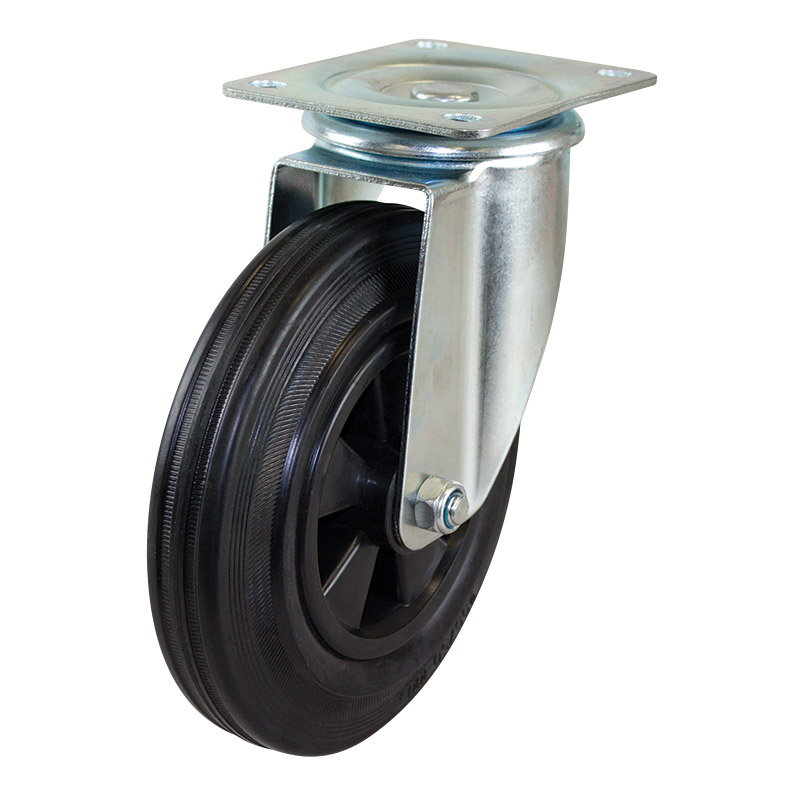

The S8046 from Richmond is a swivel frame castor and has a rubber tyred nylon wheel. This swivel castor is one of our 300 series plate range and has a top load capacity of 200kg. The S8046 is assembled with roller bearings on the castors axle and is plate mount. The swivel frame design of this castor allows the castor to swivel 360°. The diameter of the rubber tyred nylon wheel is 200mm, the wheel width is 45mm and you can order separately (Part Number: RN8875). To order this castor with a brake, search for S8046B.
200mm Rubber Tyred Nylon Centred Wheel, 200kg Capacity Swivel Castor (S8046)
$45.15 ex. GST
$49.67 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S8046 |
|---|---|
| Wheel Diameter (mm) | 200 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 45 mm |
| Wheel Type | Rubber Tyred Nylon Centred |
| Wheel Code | RN8875 |
| Wheel Bearing Type | Roller Bearing |
| Castor Height (mm) | 237 mm |
| Swivel Radius (mm) | 156 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
