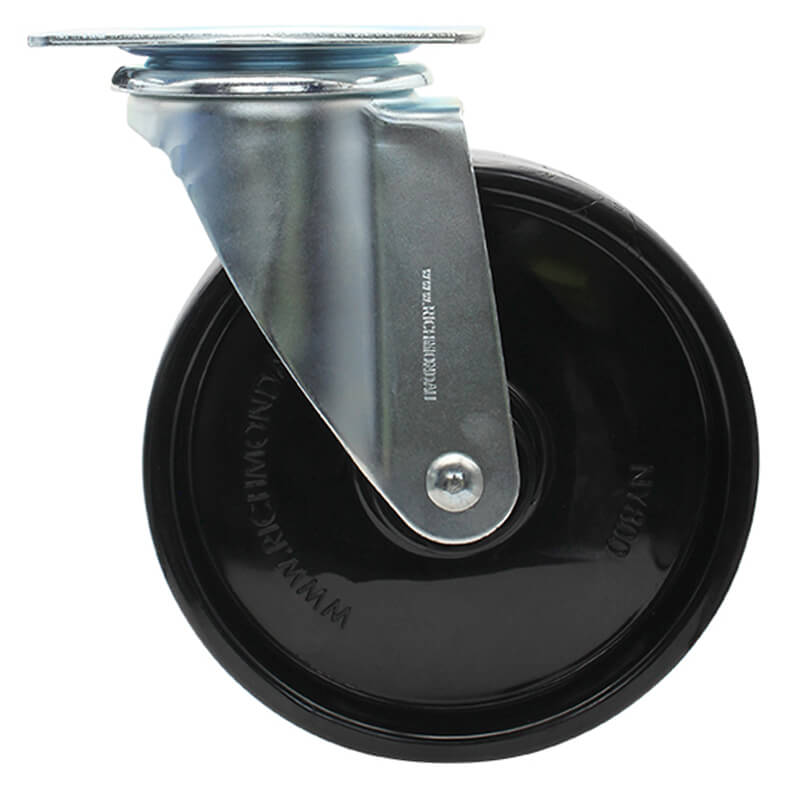

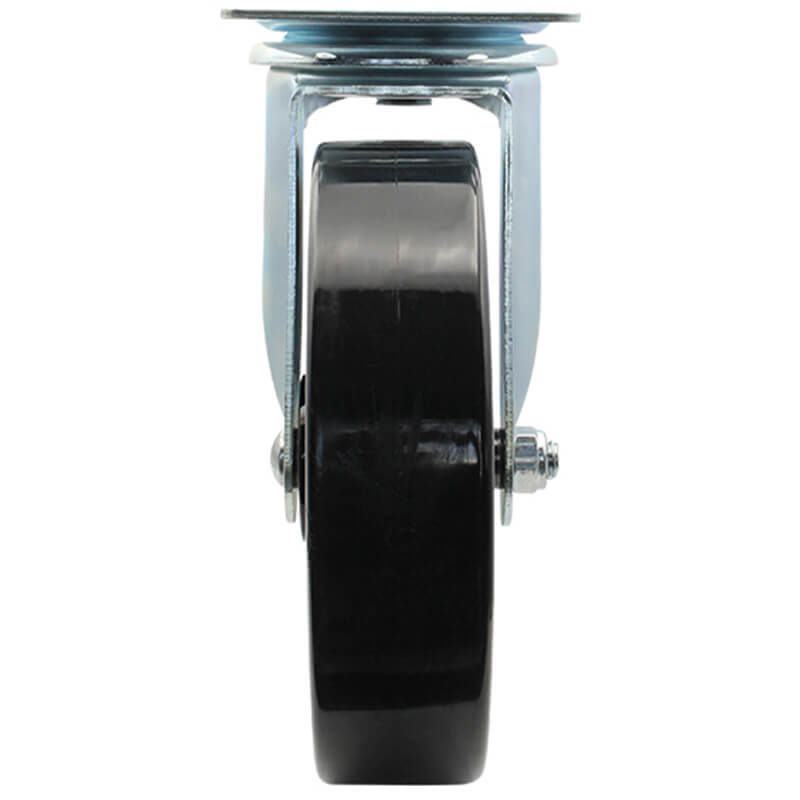

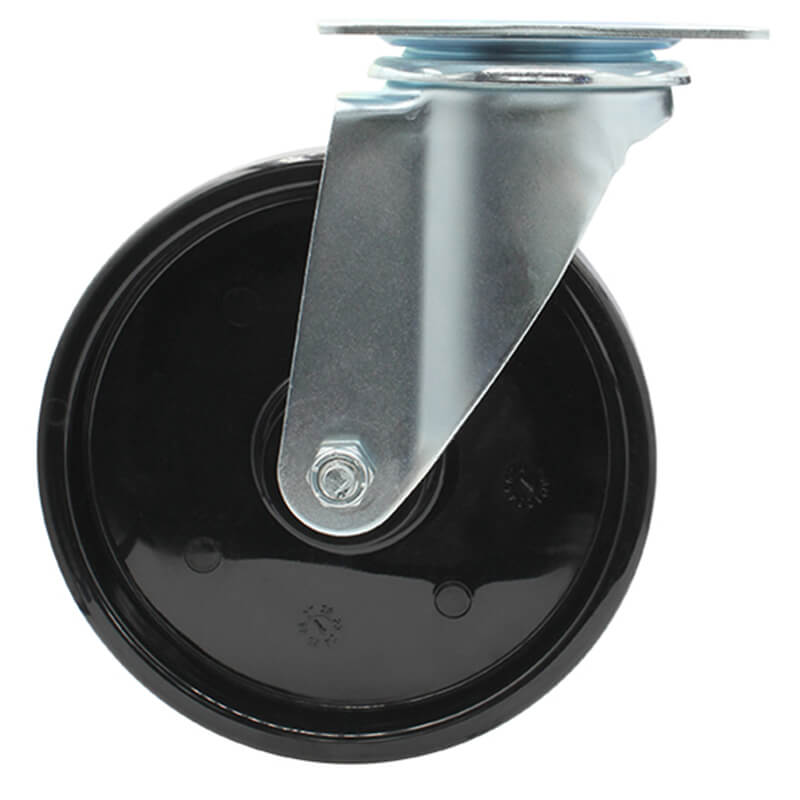

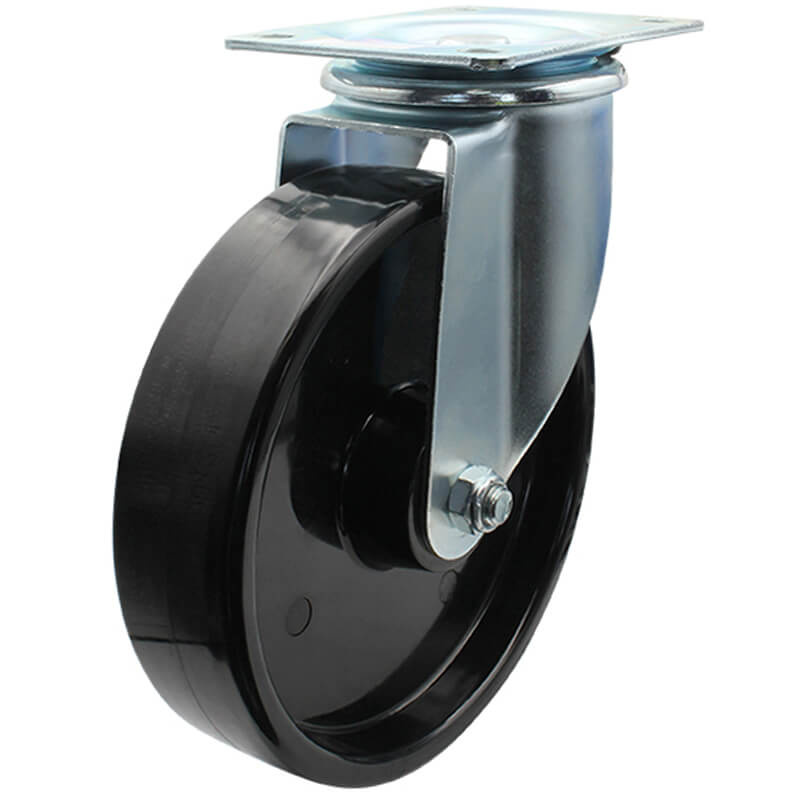

The S8032 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and has a nylon wheel. This swivel castor is part of our 300 series plate range and can safely take loads up to 300kg. The S8032 uses plain bearings for wheel rotation and is mounted with the baseplate. The swivel frame allows the castor to swivel 360°. The overall nylon wheel diameter is 200mm, the wheel width is 50mm and can be ordered separately (NY800).
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S8032 |
|---|---|
| Wheel Diameter (mm) | 200 |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 |
| Wheel Type | Nylon |
| Wheel Code | NY800 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 187 |
| Swivel Radius (mm) | 170 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 225 |
| Download CAD Drawing (STEP file) | Download |
|---|
