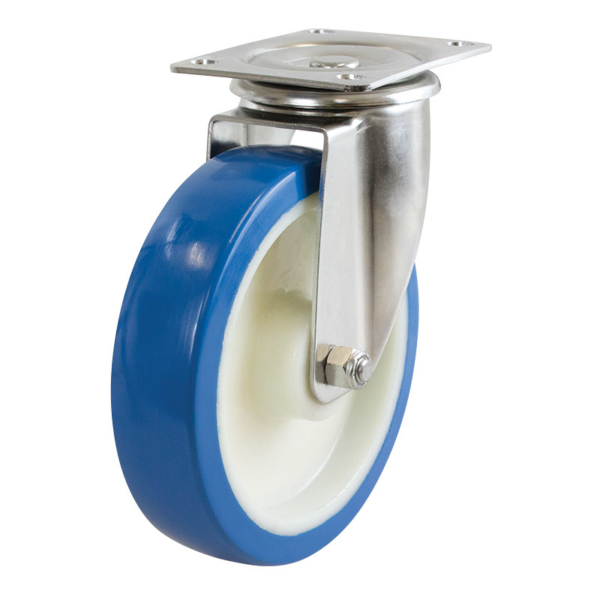

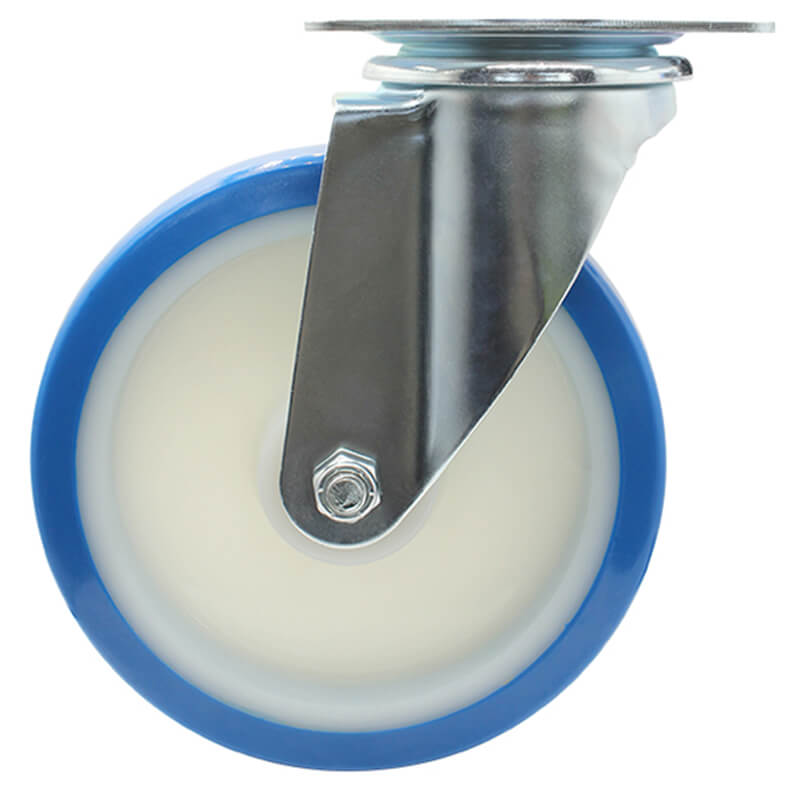

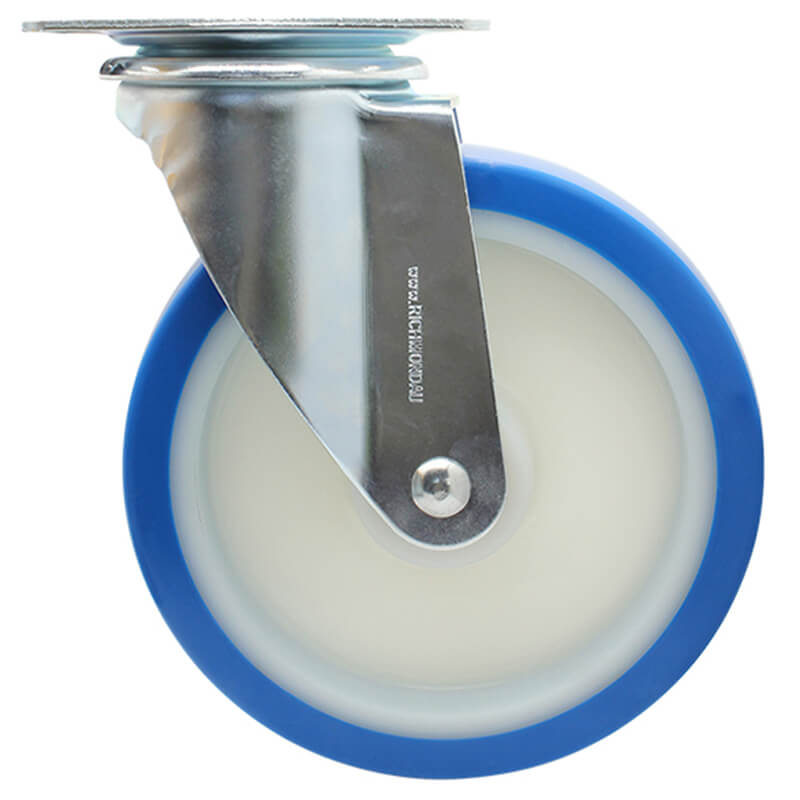

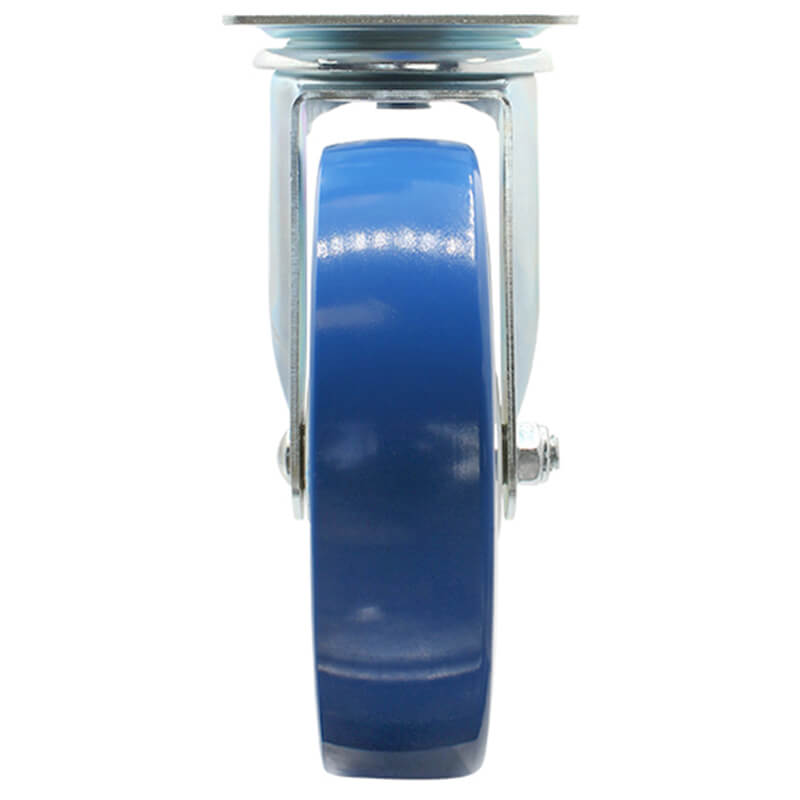

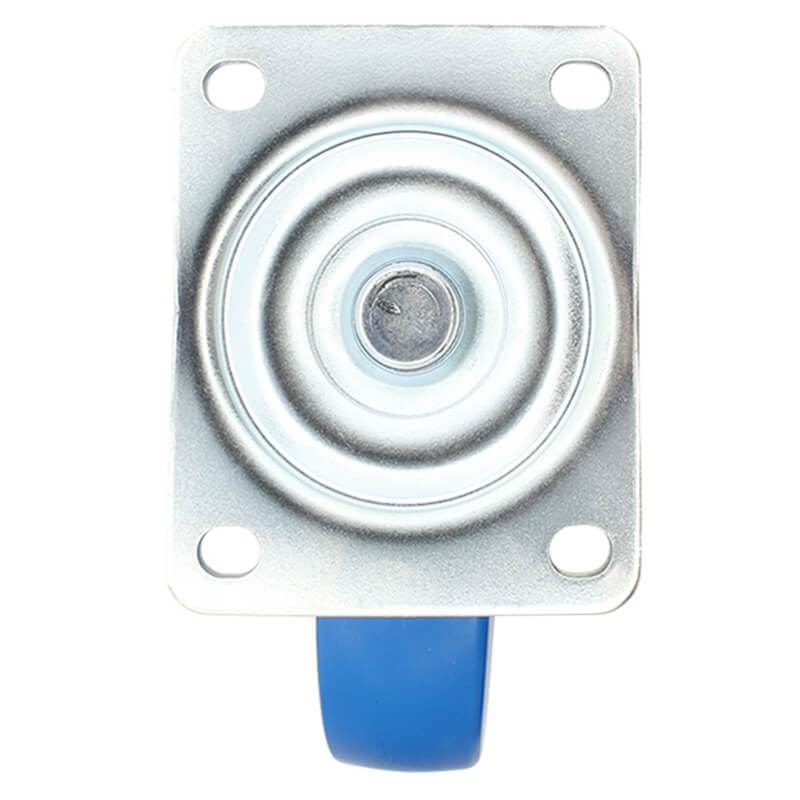

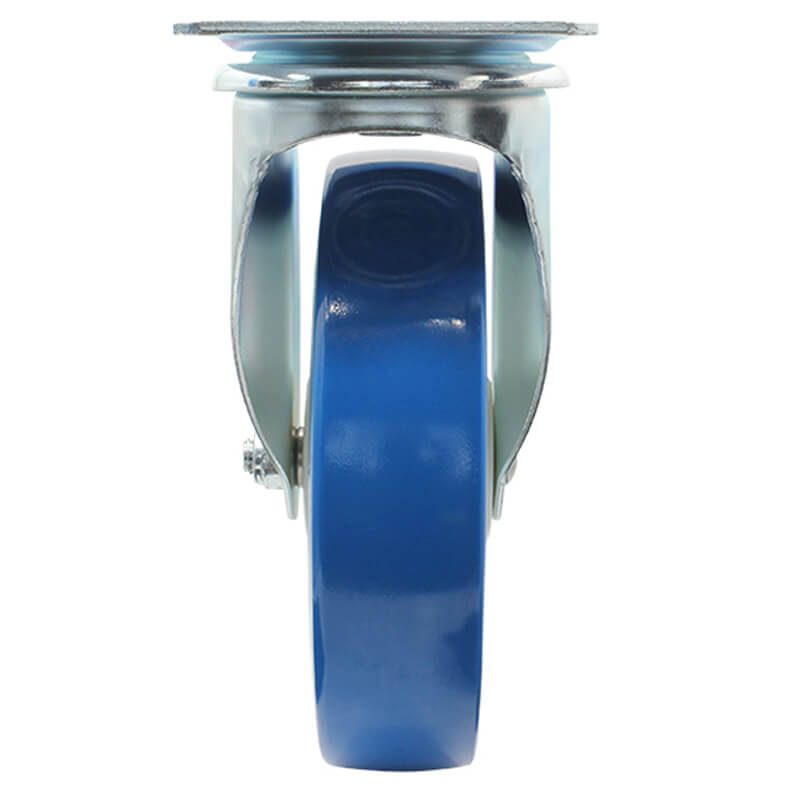

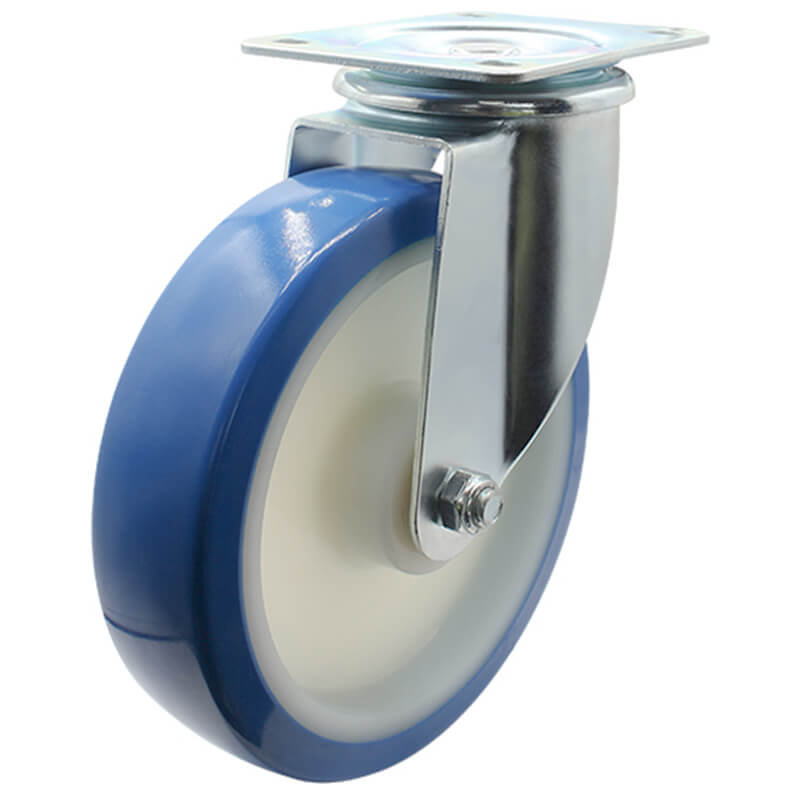

The S8054 by Richmond Rolling Solutions is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is in our 300 series plate range and can hold loads up to 250kg. The S8054 uses stainless steel roller bearings for wheel rotation and is mounted with the baseplate. This castors swivel frame allows for full 360° swivel rotation. The outside diameter of the rebound polyurethane wheel is 200mm, the wheel width is 50mm and can be ordered separately (RP8072). This model can also be ordered with a brake (part number S8054B).
200mm Rebound Polyurethane Wheel, 250kg Capacity Swivel Castor (S8054)
$86.32 ex. GST
$94.95 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S8054 |
|---|---|
| Wheel Diameter (mm) | 200 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 mm |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP8072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 237 mm |
| Swivel Radius (mm) | 156 mm |
| Maximum Load Capacity (kg) | 250 kg |
| Recommended Load Capacity (kg) | 225 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
