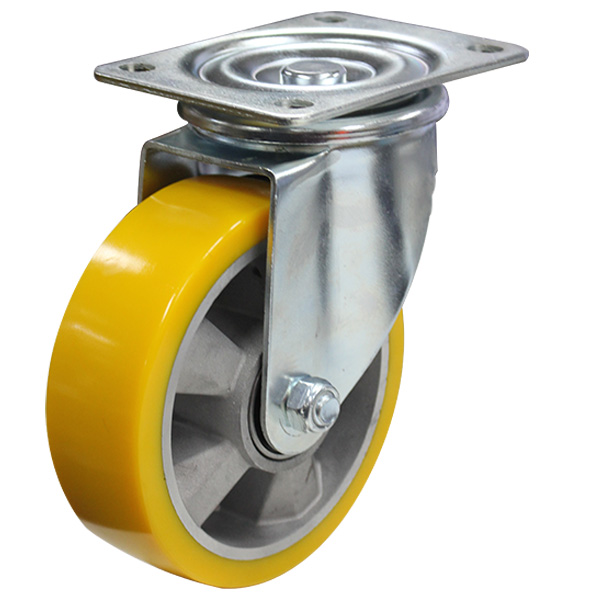

The S6024 from Richmond Wheel and Castor Co. is a swivel frame castor and features a polyurethane wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 300kg. The S6024 uses ball bearings for wheel rotation and is mounted with the baseplate. The swivel frame allows full swivel rotation to enable steering. The outside diameter of the polyurethane wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU607). To order this castor with a brake, search for S6024B.
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S6024 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 |
| Wheel Type | Crowned Polyurethane |
| Wheel Code | PU607 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 187 |
| Swivel Radius (mm) | 127 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 225 |
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
Addons for your 150mm Crowned Polyurethane Tyre on Aluminium Centre Wheel 300kg Capacity Castor (S6024). Click the product that you’re interested in for more info.
