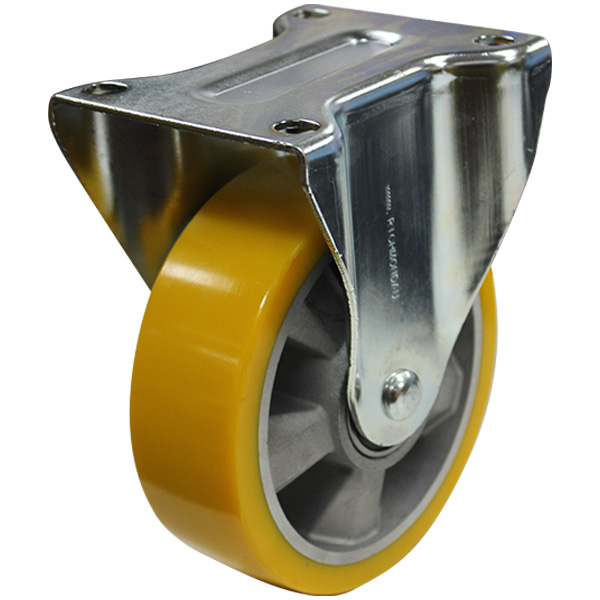

The R6025 from Richmond is a rigid frame castor and is fitted with a polyurethane wheel. This rigid castor is one of our 300 series plate range and can safely take loads up to 300kg. The R6025 uses ball bearings for wheel rotation and is mounted with the baseplate. This castors rigid frame allows for steering only when used with swivel castors. The outside diameter of the polyurethane wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU607).
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | R6025 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Rigid |
| Wheel Width (mm) | 50 |
| Wheel Type | Crowned Polyurethane |
| Wheel Code | PU607 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 187 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 225 |
