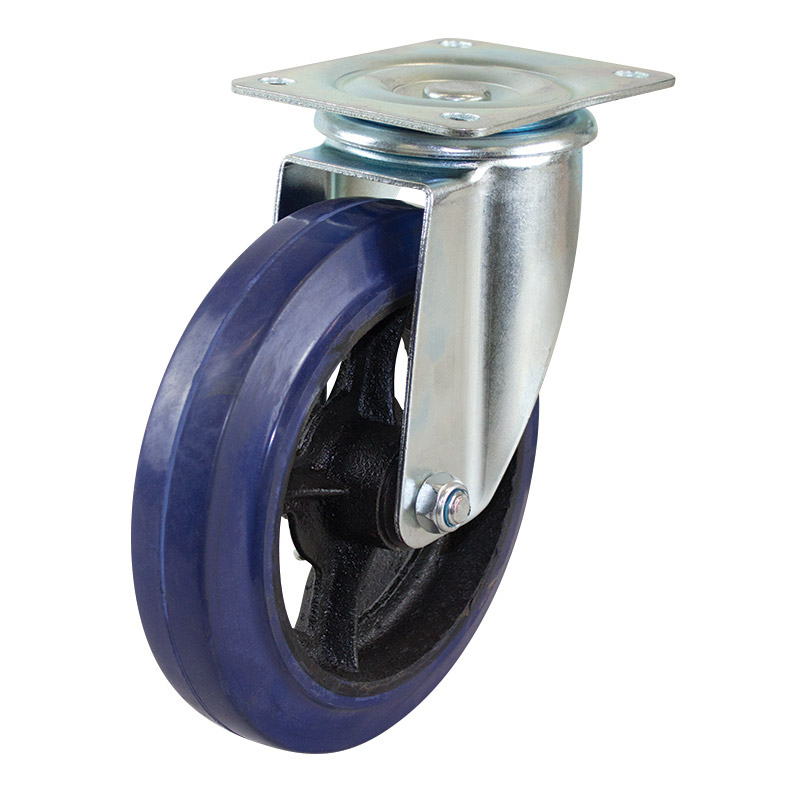

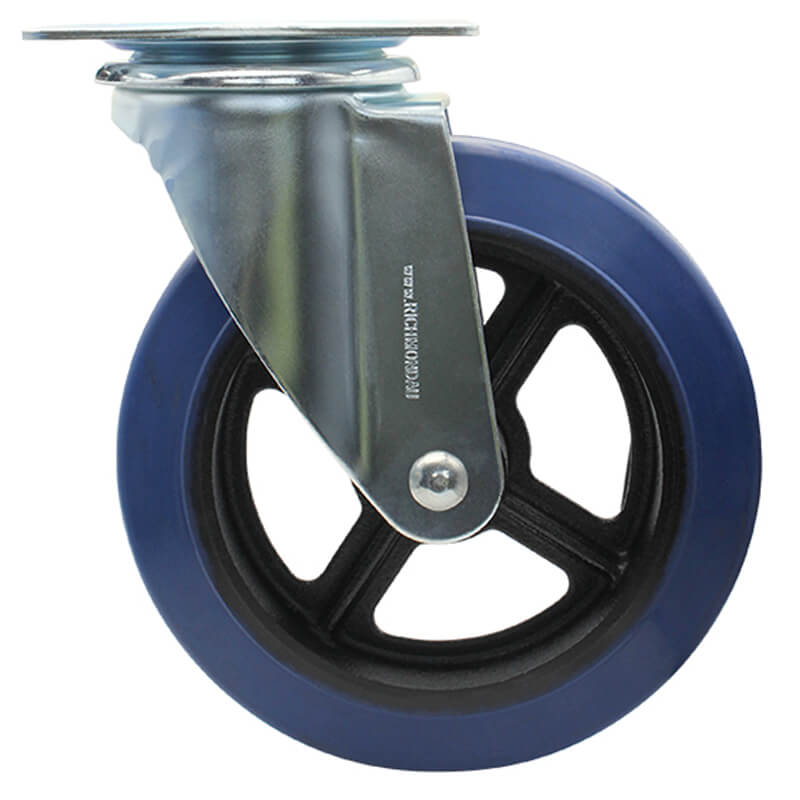

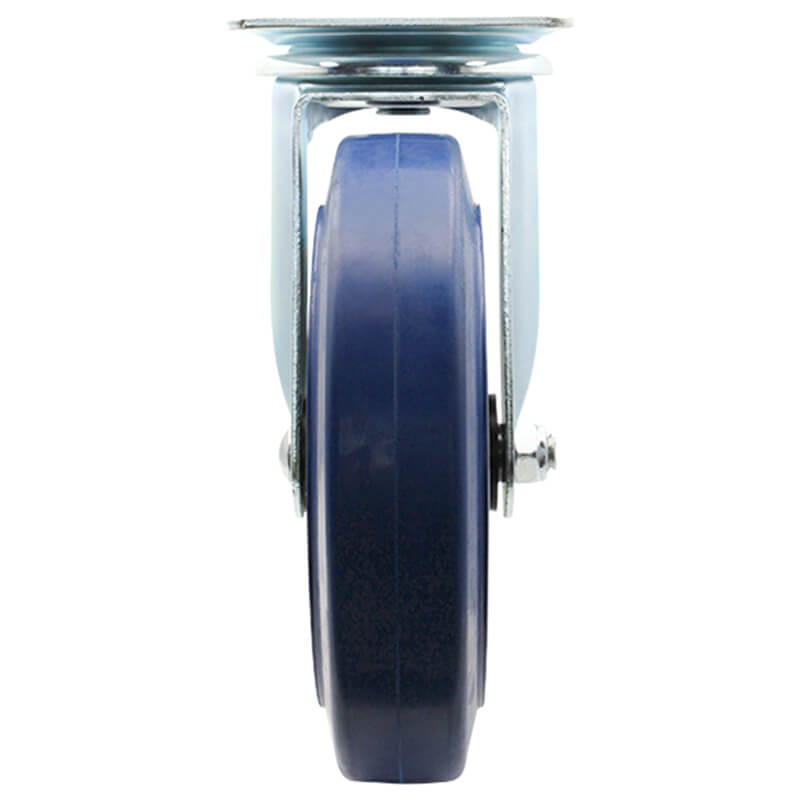

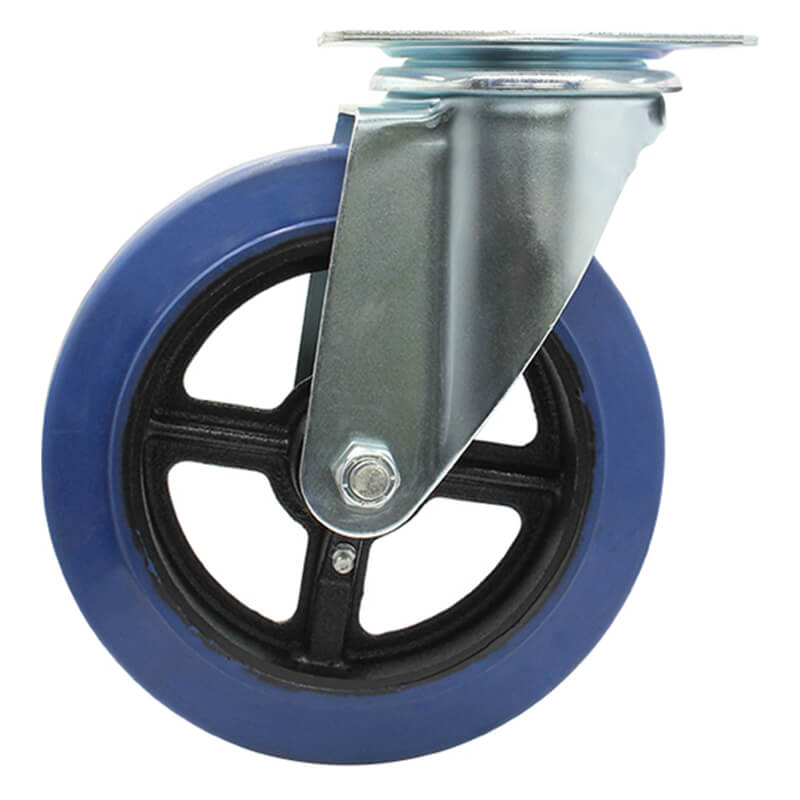

The S8040 manufactured by Richmond Rolling Solutions is a swivel frame castor and has a rubber wheel. This swivel castor is one of our 300 series plate range and can hold loads up to 250kg. The S8040 uses roller bearings for wheel rotation and is mounted with the baseplate. The swivel frame design of this castor permits the load to be steered. The rubber wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: RT8842). To order this castor with a brake, search for S8040B.
200mm Rubber Tyred Cast Iron Centred Wheel, 250kg Capacity Swivel Castor (S8040)
Frame Type: Swivel
$72.28 ex. GST
$79.51 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S8040 manufactured by Richmond Rolling Solutions is a swivel frame castor and has a rubber wheel. This swivel castor is one of our 300 series plate range and can hold loads up to 250kg. The S8040 uses roller bearings for wheel rotation and is mounted with the baseplate. The swivel frame design of this castor permits the load to be steered. The rubber wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: RT8842). To order this castor with a brake, search for S8040B.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S8040 |
|---|---|
| Wheel Diameter (mm) | 200 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 mm |
| Wheel Type | Rubber Tyred Cast Iron Centred |
| Wheel Code | RT8842 |
| Wheel Bearing Type | Roller Bearing |
| Castor Height (mm) | 237 mm |
| Swivel Radius (mm) | 156 mm |
| Maximum Load Capacity (kg) | 250 kg |
| Recommended Load Capacity (kg) | 225 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
