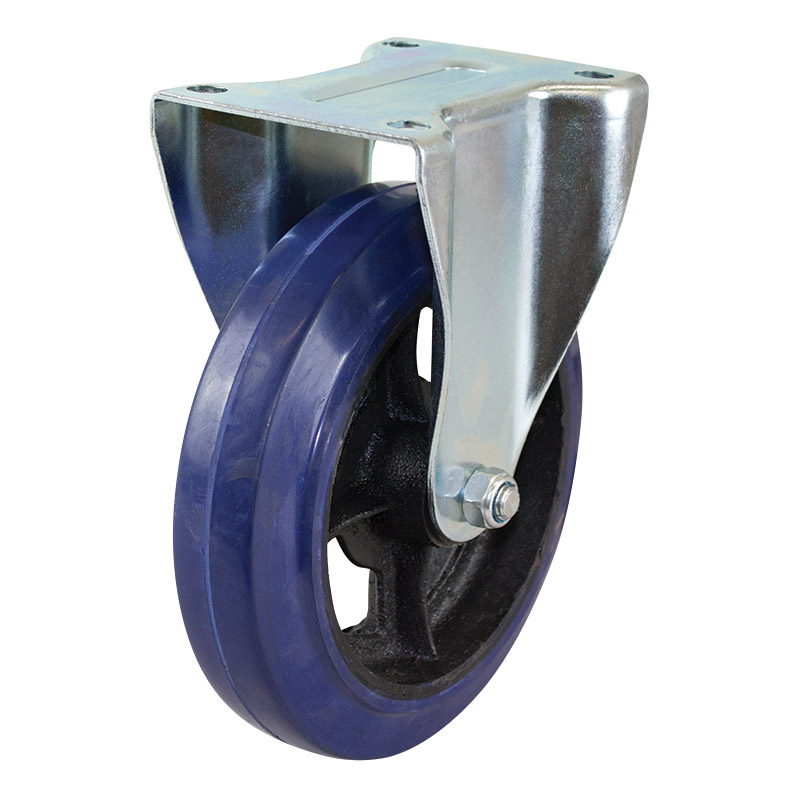

200mm Rubber Wheel 250kg Capacity Castor (R8041)

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

The R8041 manufactured by Richmond Wheel and Castor Co. is a rigid frame castor and uses a rubber wheel. This rigid castor is part of our 300 series plate range and has a top load capacity of 250kg. The R8041 is assembled with roller bearings on the castors axle and is baseplate mount. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The outside diameter of the rubber wheel is 200mm, the wheel width is 50mm and can be ordered separately (RT8842).

View Specifications View Specifications Shipping Information

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	R8041
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Rubber
Wheel Code	RT8842
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	237
Maximum Load Capacity (kg)	250
Recommended Load Capacity (kg)	225
