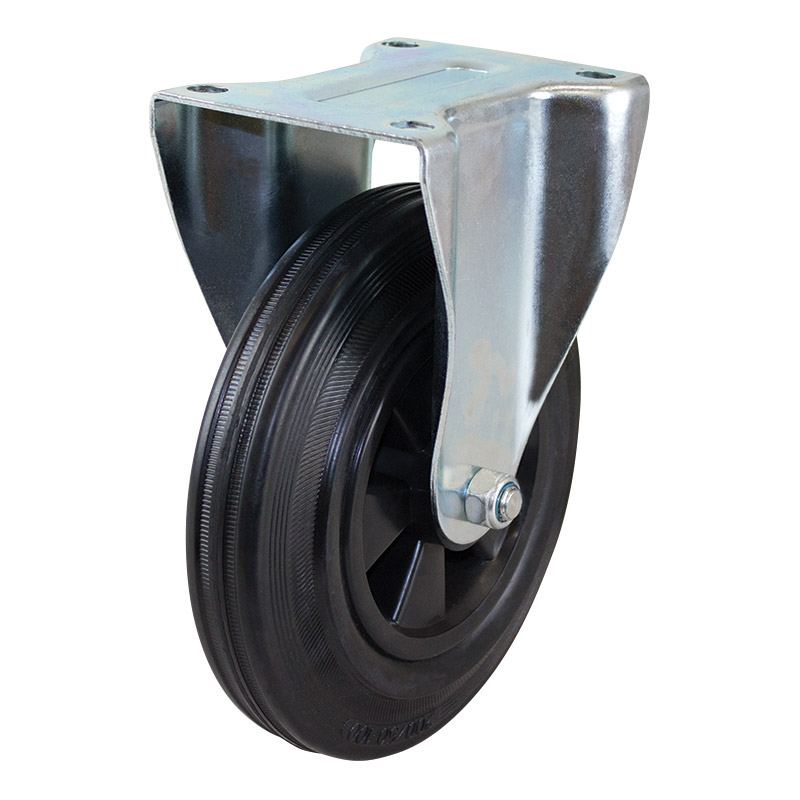

The R8047 manufactured by Richmond is a rigid frame castor and has a rubber tyred nylon wheel. This rigid castor is in our 300 series plate range and can safely take loads up to 200kg. The R8047 is assembled with roller bearings on the castors axle and is mounted with the baseplate. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall rubber tyred nylon wheel diameter is 200mm, the wheel width is 45mm and you can order separately (Part Number: RN8875).
200mm Rubber Tyred Nylon Centred Wheel, 200kg Capacity Rigid Castor (R8047)
$43.68 ex. GST
$48.05 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | R8047 |
|---|---|
| Wheel Diameter (mm) | 200 mm |
| Frame Type | Rigid |
| Wheel Width (mm) | 45 mm |
| Wheel Type | Rubber Tyred Nylon Centred |
| Wheel Code | RN8875 |
| Wheel Bearing Type | Roller Bearing |
| Castor Height (mm) | 237 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
