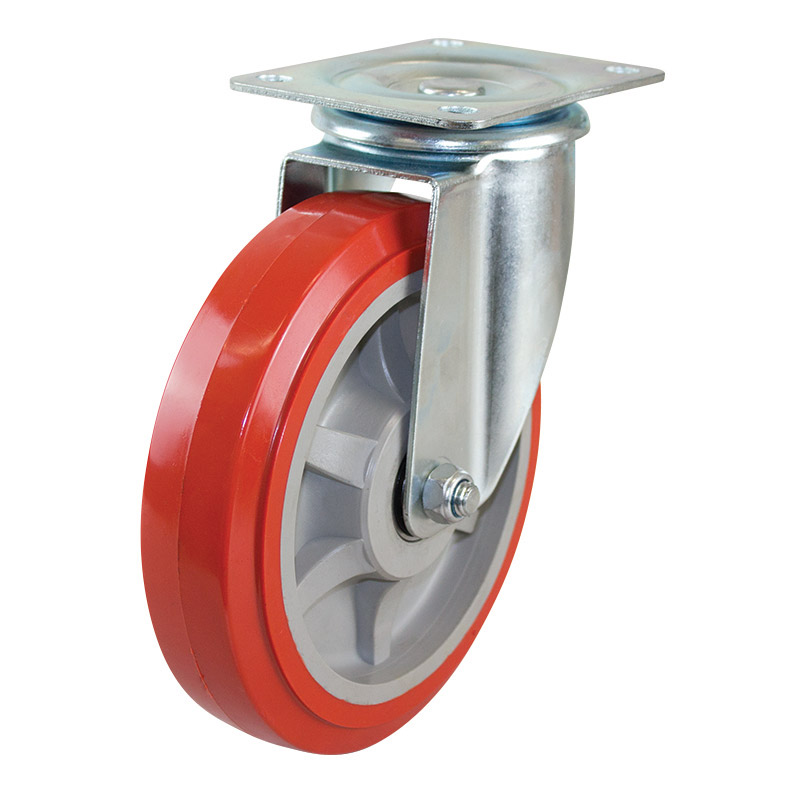

The S8044 by Richmond is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is one of our 300 series plate range and can safely take loads up to 300kg. The S8044 wheel is fitted with ball bearings and is mounted with the baseplate. The swivel frame of this castor allows the load to be steered. The outside diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU8071). For the same castor with a brake, see S8044B.
200mm Polyurethane Tyred Nylon Centred Wheel, 300kg Capacity Swivel Castor (S8044)
$73.84 ex. GST
$81.22 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S8044 |
|---|---|
| Wheel Diameter (mm) | 200 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 mm |
| Wheel Type | Polyurethane Tyred Nylon Centred |
| Wheel Code | PU8071 |
| Wheel Bearing Type | Rubber Sealed Deep Groove Ball Bearings |
| Castor Height (mm) | 237 mm |
| Swivel Radius (mm) | 156 mm |
| Maximum Load Capacity (kg) | 300 kg |
| Recommended Load Capacity (kg) | 225 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
