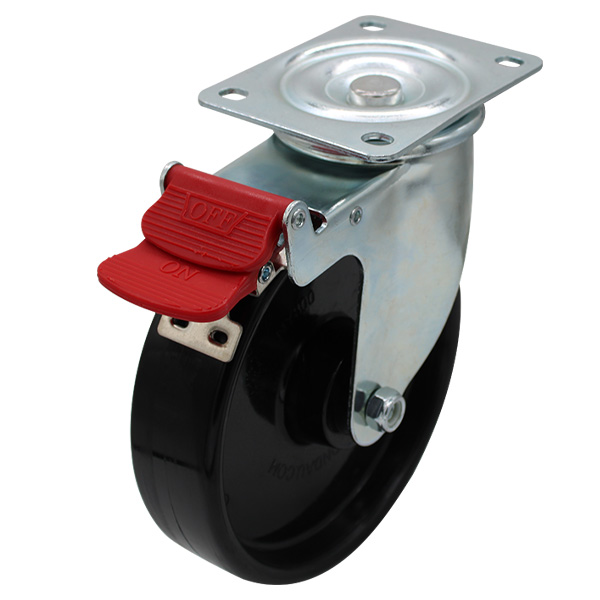

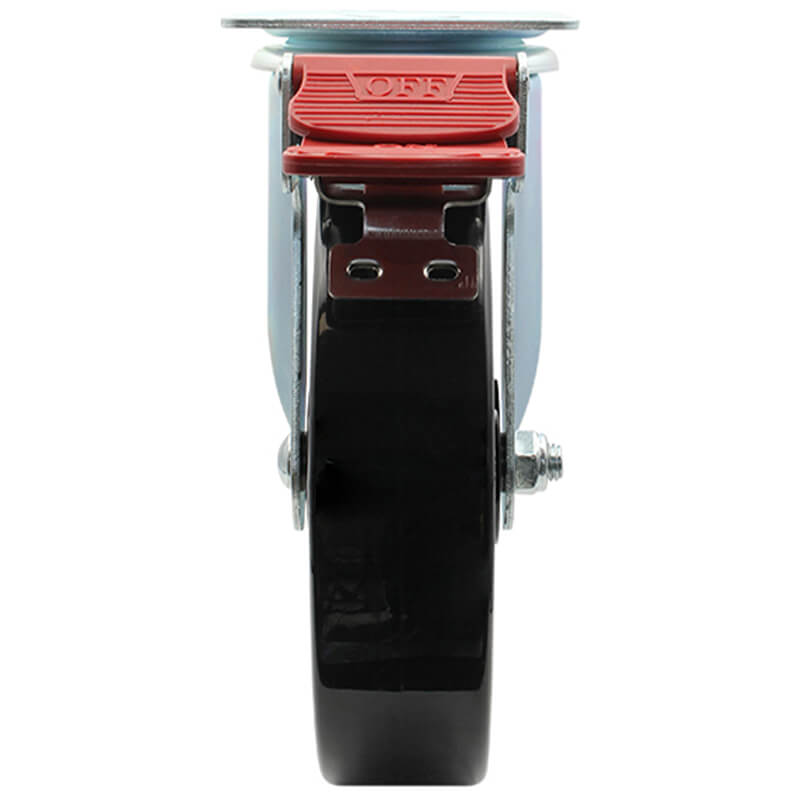

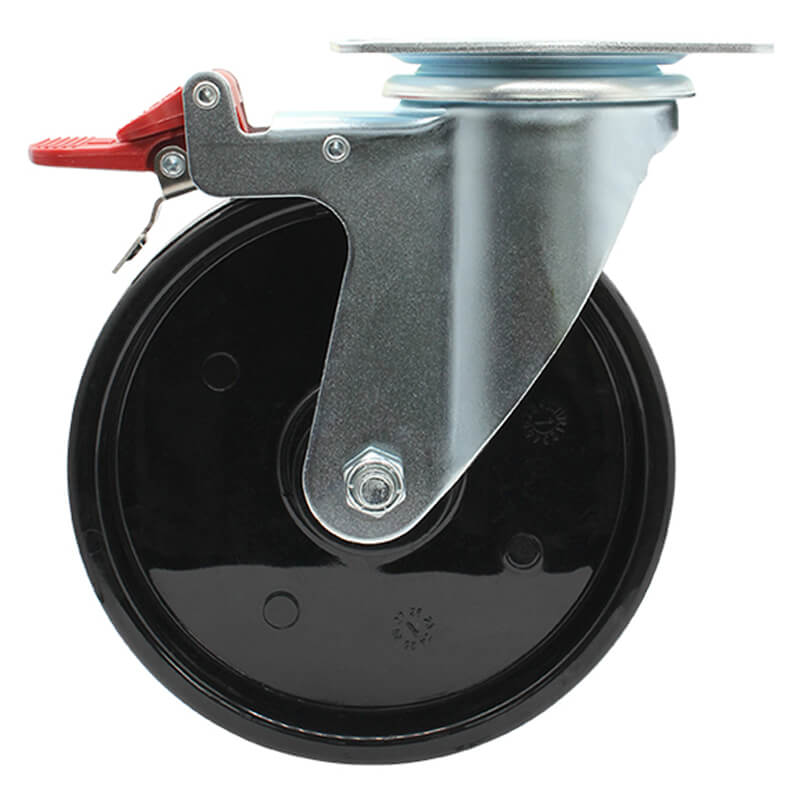

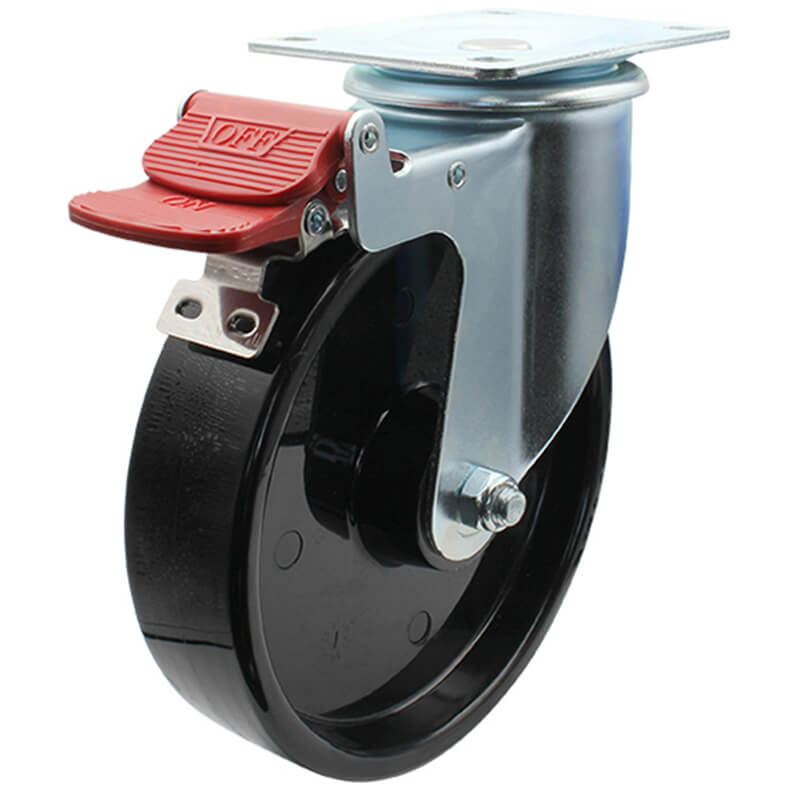

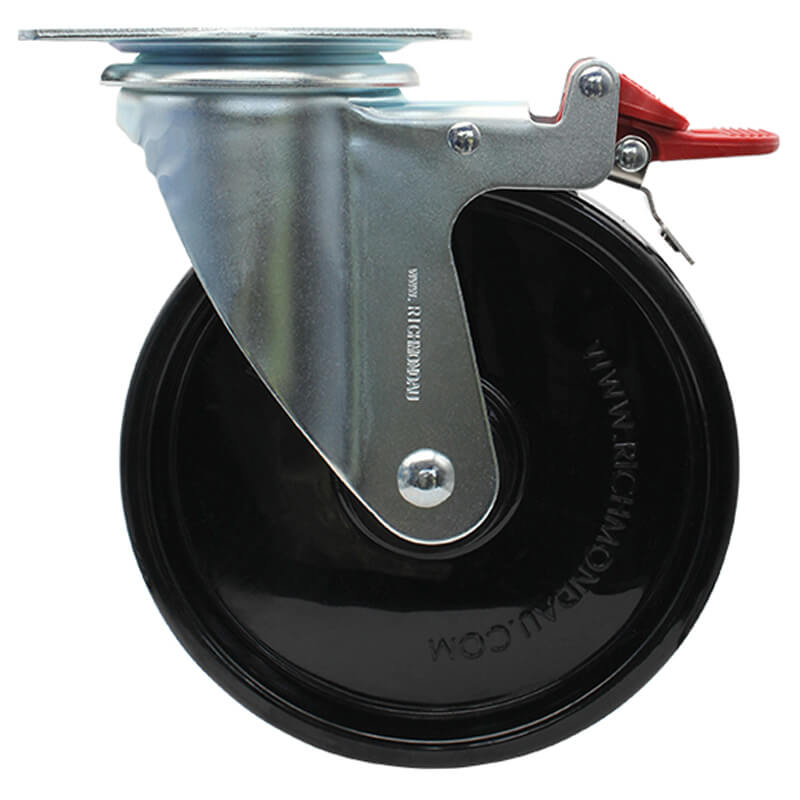

The S8032B manufactured by Richmond Rolling Solutions is a swivel frame castor and has a nylon wheel. This swivel castor is part of our 300 series plate range and can safely take loads up to 300kg. The S8032B uses plain bearings for wheel rotation and is mounted with the baseplate. The swivel frame allows the castor to swivel 360°. The overall nylon wheel diameter is 200mm, the wheel width is 50mm and can be ordered separately (NY800).
200mm Nylon Wheel, 300kg Capacity Swivel Brake Castor (S8032B)
$92.83 ex. GST
$102.11 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S8032B |
|---|---|
| Wheel Diameter (mm) | 200 mm |
| Frame Type | Swivel Brake |
| Wheel Width (mm) | 50 mm |
| Wheel Type | Nylon |
| Wheel Code | NY800 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 237 mm |
| Swivel Radius (mm) | 125 mm |
| Maximum Load Capacity (kg) | 300 kg |
| Recommended Load Capacity (kg) | 225 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
