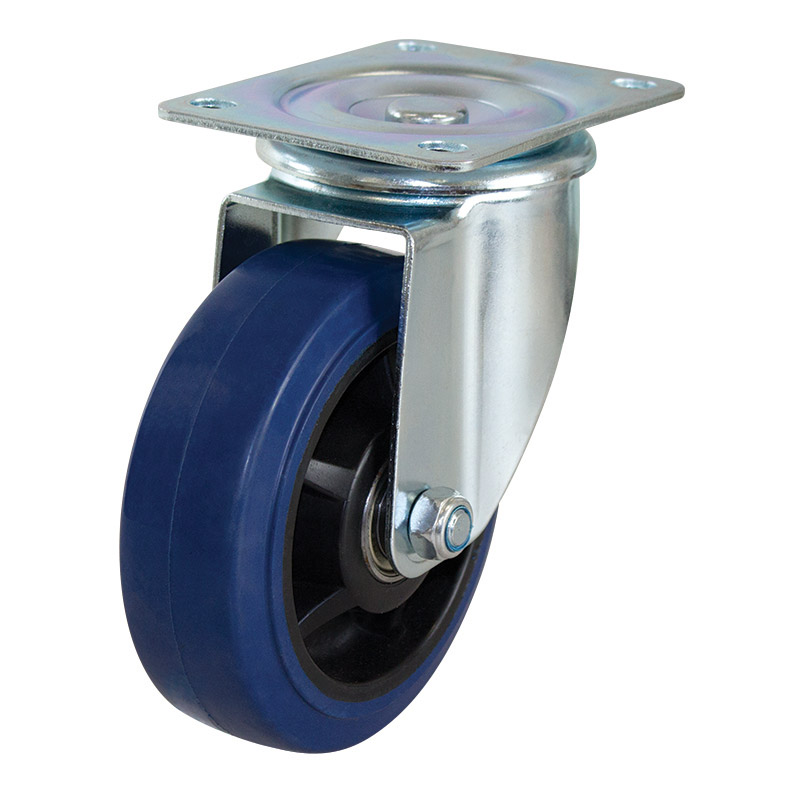

The S6042 by Richmond Rolling Solutions is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is part of our 300 series plate range and has a top load capacity of 225kg. The S6042 uses ball bearings for wheel rotation and is mounted with the baseplate. This castors swivel frame allows the castor to swivel 360°. The outside diameter of the rebound rubber wheel is 150mm, the wheel width is 45mm and can be ordered separately (RR6677). This model can also be ordered with a brake (part number S6042B).
150mm Rebound Rubber Wheel, 225kg Capacity Swivel Castor (S6042)
$63.44 ex. GST
$69.78 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S6042 |
|---|---|
| Wheel Diameter (mm) | 150 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 45 mm |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR6677 |
| Wheel Bearing Type | Steel Shielded Deep Groove Ball Bearings |
| Castor Height (mm) | 187 mm |
| Swivel Radius (mm) | 112 mm |
| Maximum Load Capacity (kg) | 225 kg |
| Recommended Load Capacity (kg) | 200 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
