150mm Polyurethane Tyre on Nylon Centre Wheel 300kg Capacity Castor (S6044)

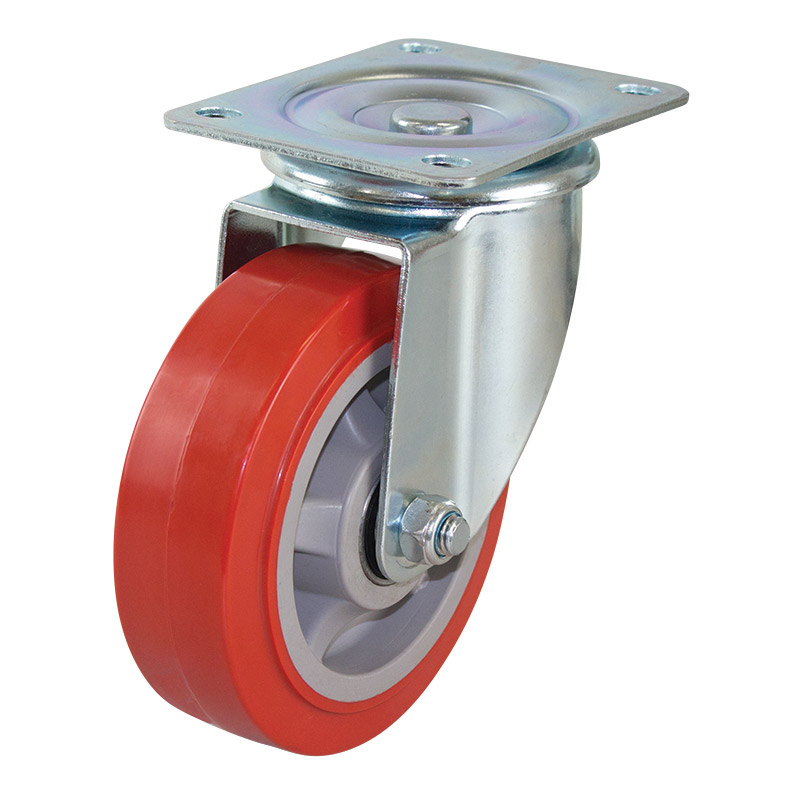

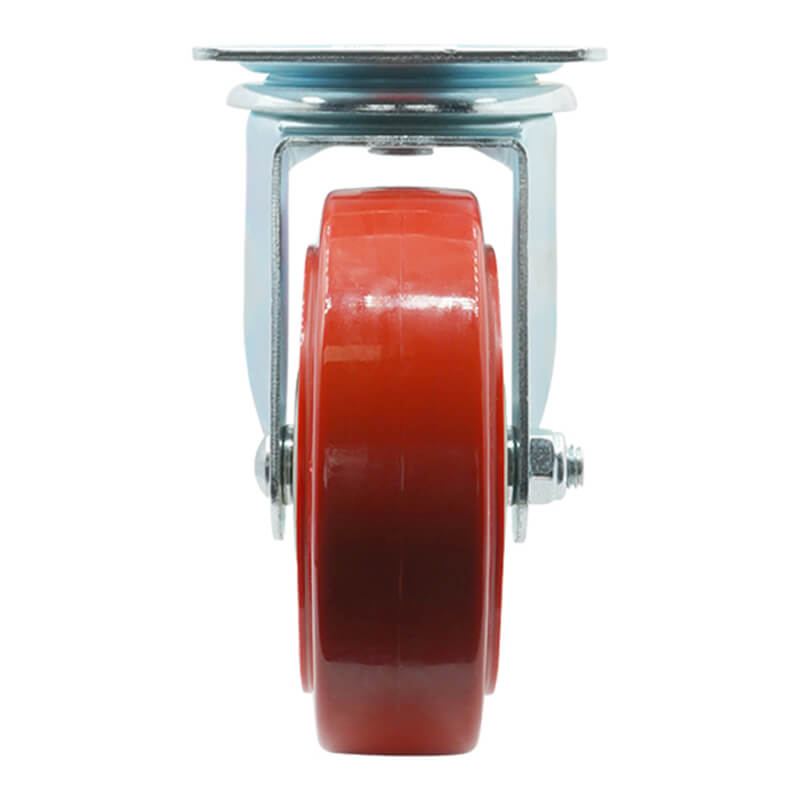

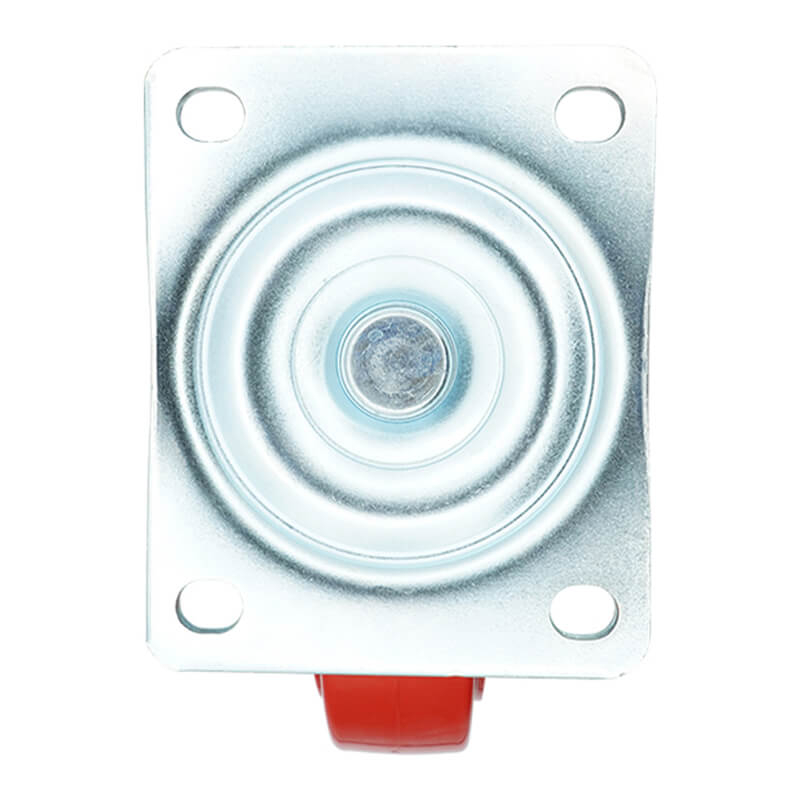

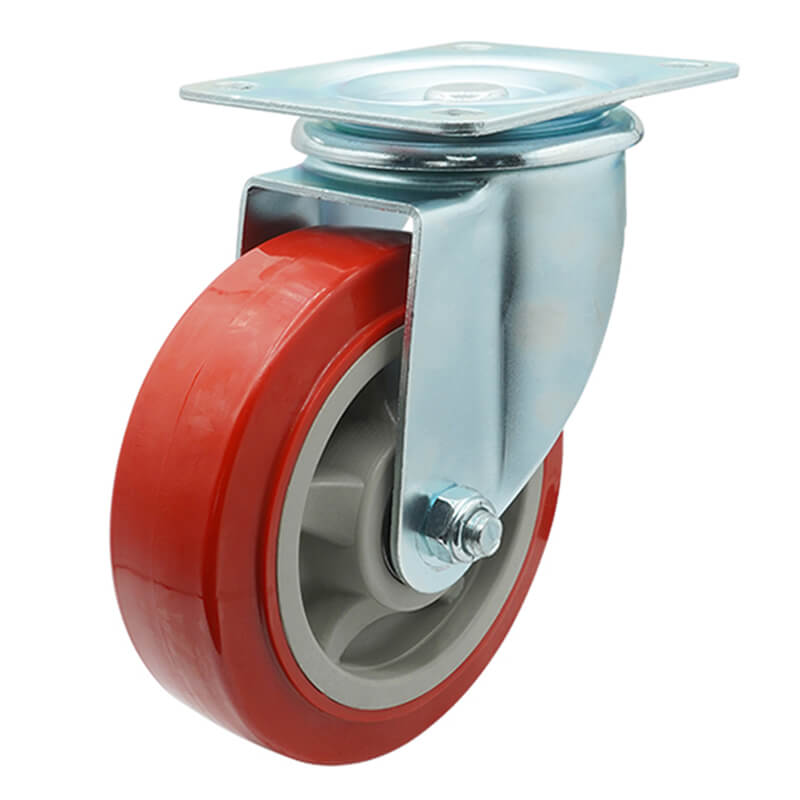

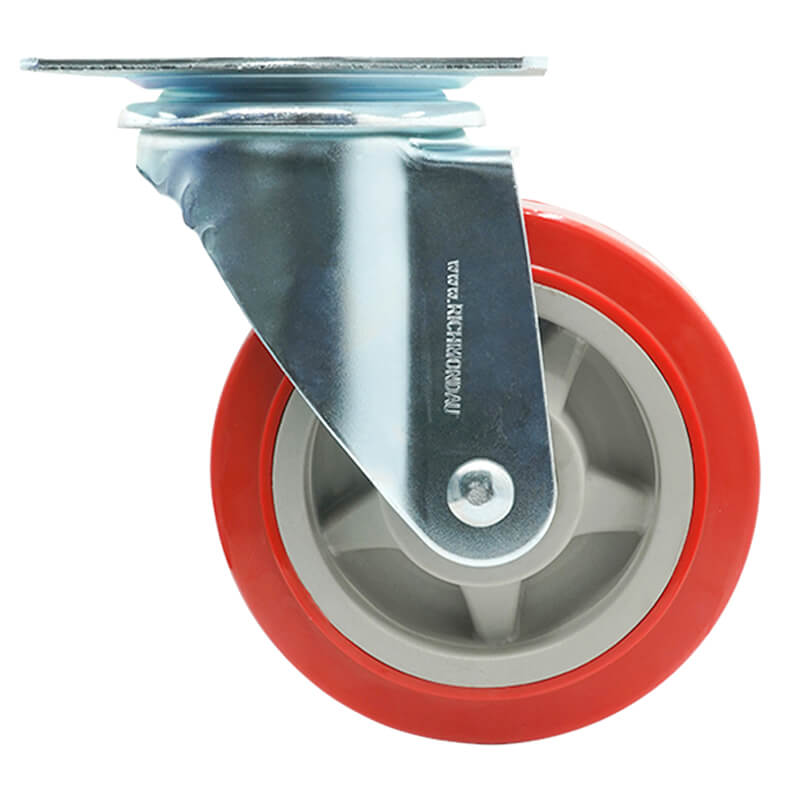

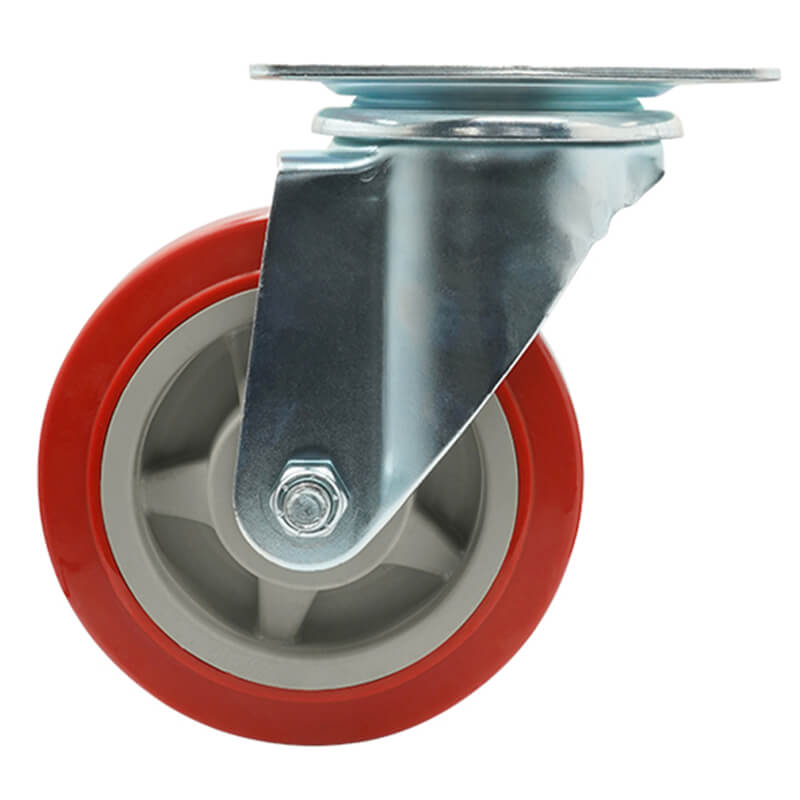

The S6044 from Richmond is a swivel frame castor and features a polyurethane wheel. This swivel castor is part of our 300 series plate range and can safely take loads up to 300kg. The S6044 wheel is fitted with ball bearings and is mounted with the baseplate. The swivel frame design of this castor allows the castor to swivel 360°. The outside diameter of the polyurethane wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU6071). This model can also be ordered with a brake (part number S6044B)

View Specifications View Specifications Shipping Information

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S6044
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Nylon Centred
Wheel Code	PU6071
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	187
Swivel Radius (mm)	112
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225

Download CAD Drawing (STEP file)	Download
