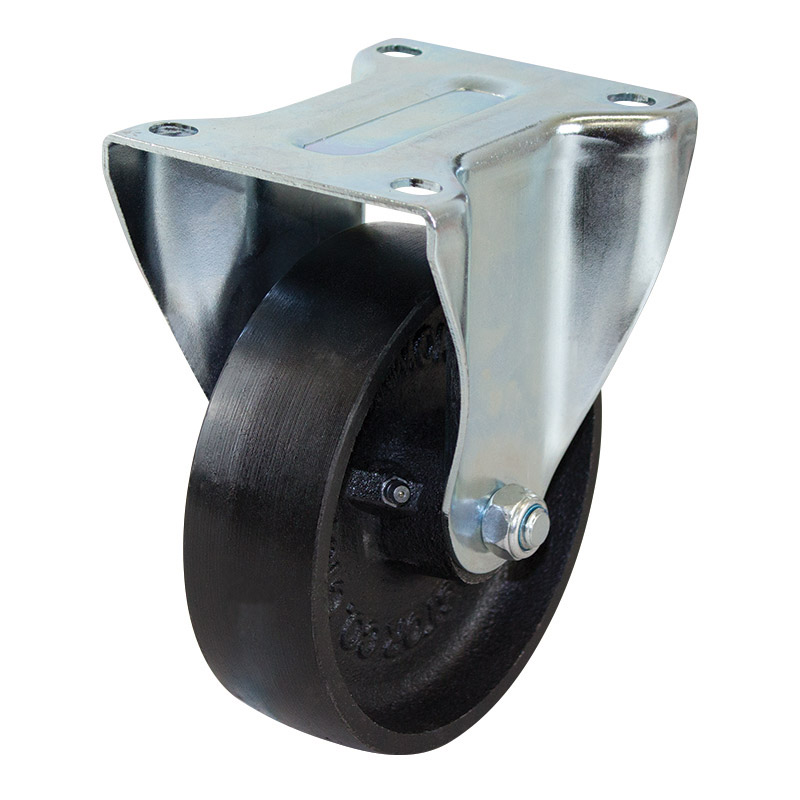

The R6051 from Richmond Rolling Solutions is a rigid frame castor and features a cast iron wheel. This rigid castor is in our 300 series plate range and can hold loads up to 300kg. The R6051 uses plain bearings for wheel rotation and is mounted with the baseplate. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The diameter of the cast iron wheel is 150mm, the wheel width is 45mm and can be ordered separately (Ci611).
150mm Cast Iron Wheel, 300kg Capacity Rigid Castor (R6051)
$85.80 ex. GST
$94.38 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | R6051 |
|---|---|
| Wheel Diameter (mm) | 150 mm |
| Frame Type | Rigid |
| Wheel Width (mm) | 45 mm |
| Wheel Type | Cast Iron |
| Wheel Code | Ci611 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 187 mm |
| Maximum Load Capacity (kg) | 300 kg |
| Recommended Load Capacity (kg) | 225 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Temperature range (°C) | -30° to 300° |
| Download CAD Drawing (STEP file) | Download |
|---|
