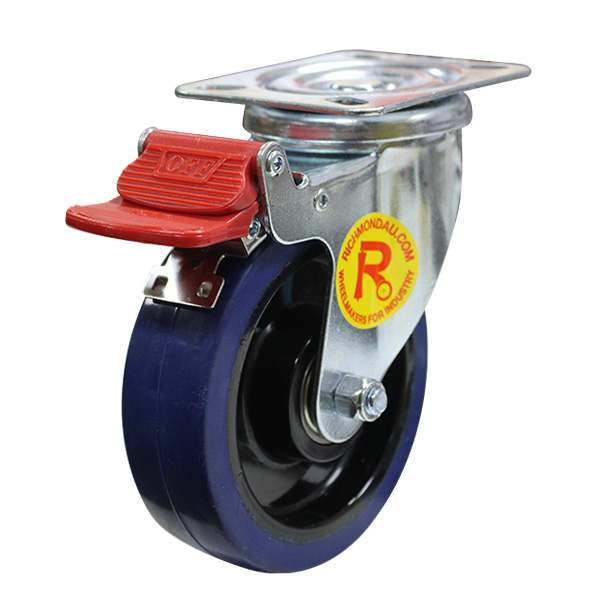

125mm Rebound Rubber Wheel 200kg Capacity Castor (S5042B)

The S5042B by Richmond Rolling Solutions is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 200kg. The S5042B is assembled with ball bearings on the castors axle and is plate mount. This castors swivel frame permits the load to be steered. The overall rebound rubber wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: RR5077). For the same castor without a brake, see S5042.

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code S5042B
Wheel Diameter (mm) 125
Frame Type Swivel with Brake
Wheel Width (mm) 35
Wheel Type Rebound Rubber
Wheel Code RR55077
Wheel Bearing Type Ball Bearing
Castor Height (mm) 157
Swivel Radius (mm) 125
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Download CAD Drawing (STEP file) Download
Swivel with Brake

Swivel with Brake
