125mm Rebound Polyurethane Wheel 200/150kg Capacity Castor (S5054B)

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

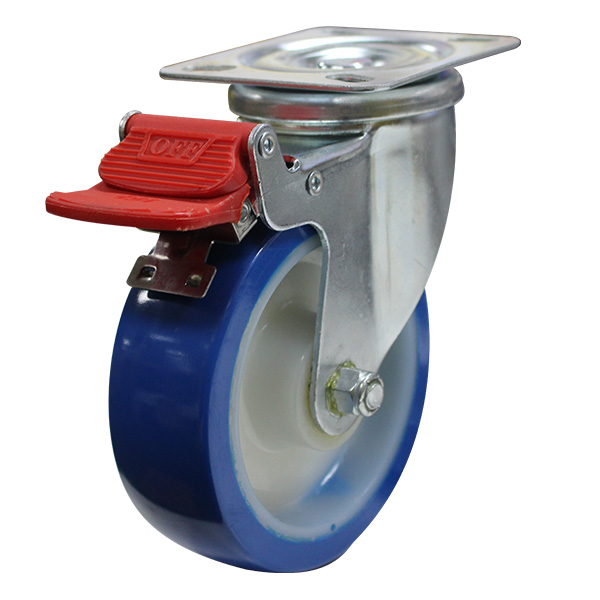

The S5054B by Richmond Wheel and Castor Co. is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 200kg. The S5054B is assembled with stainless steel roller bearings on the castors axle and is plate mount. The swivel frame design of this castor permits the load to be steered. The overall rebound polyurethane wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: RP5072). This model can also be ordered without a brake (part number S5054).

View Specifications View Specifications Shipping Information

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S5054B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Rebound Polyurethane
Wheel Code	RP5072
Wheel Bearing Type	Stainless Roller Bearing
Castor Height (mm)	157
Swivel Radius (mm)	125
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
