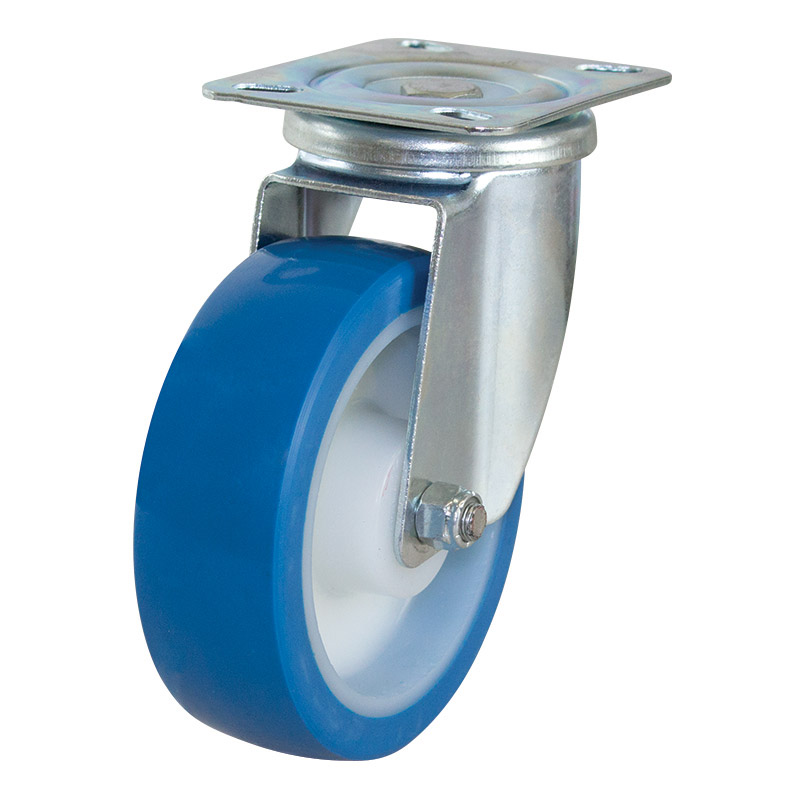

The S5054 from Richmond is a swivel frame castor and is fitted with a rebound polyurethane wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 200kg. The S5054 is assembled with stainless steel roller bearings on the castors axle and is mounted with the baseplate. The swivel frame allows the castor to swivel 360°. The diameter of the rebound polyurethane wheel is 125mm, the wheel width is 35mm and can be ordered separately (RP5072). For the same castor with a brake, see S5054B.
125mm Rebound Polyurethane Wheel, 200kg Capacity Swivel Castor (S5054)
Frame Type: Swivel
$53.04 ex. GST
$58.34 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S5054 from Richmond is a swivel frame castor and is fitted with a rebound polyurethane wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 200kg. The S5054 is assembled with stainless steel roller bearings on the castors axle and is mounted with the baseplate. The swivel frame allows the castor to swivel 360°. The diameter of the rebound polyurethane wheel is 125mm, the wheel width is 35mm and can be ordered separately (RP5072). For the same castor with a brake, see S5054B.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S5054 |
|---|---|
| Wheel Diameter (mm) | 125 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP5072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 157 mm |
| Swivel Radius (mm) | 112 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
