The S5044B from Richmond Rolling Solutions is a swivel frame castor and uses a polyurethane wheel. This swivel castor is part of our 300 series plate range and can hold loads up to 200kg. The S5044B wheel is fitted with roller bearings and is baseplate mount. The swivel frame of this castor permits the load to be steered. The polyurethane wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU5508). For the same castor without a brake, see S5044.

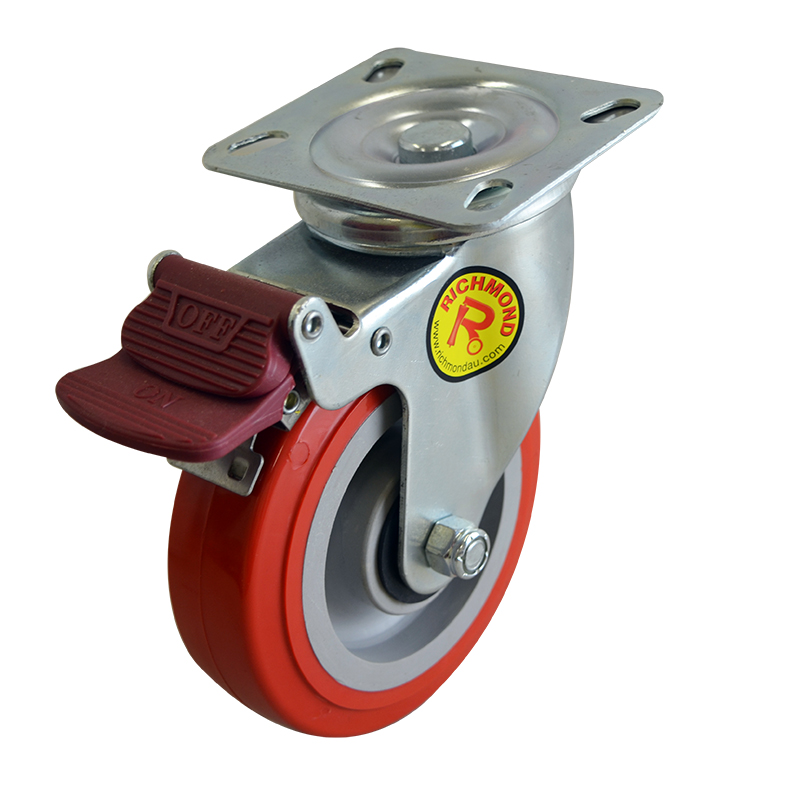

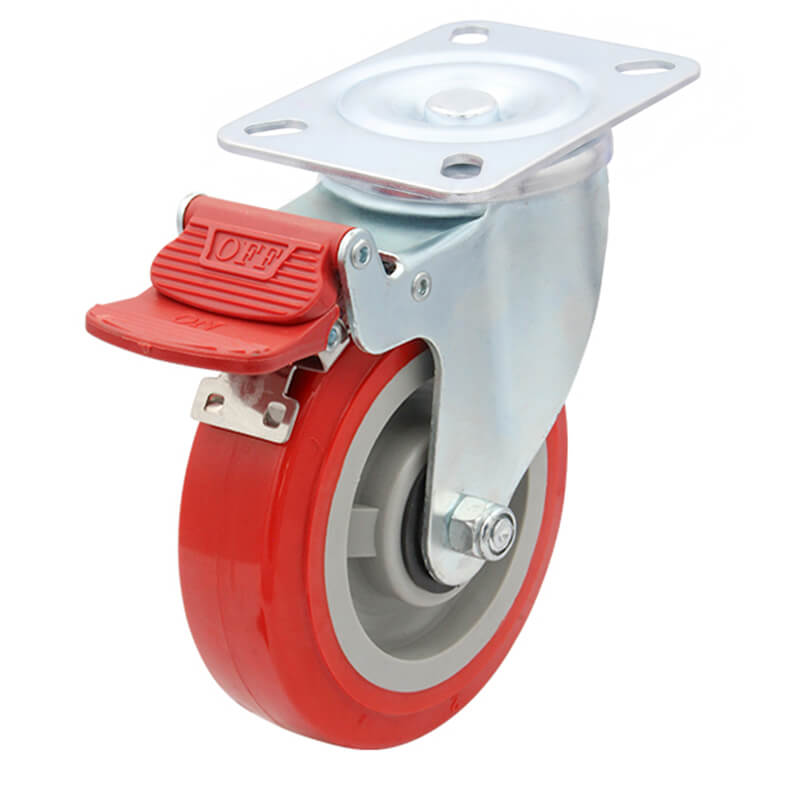

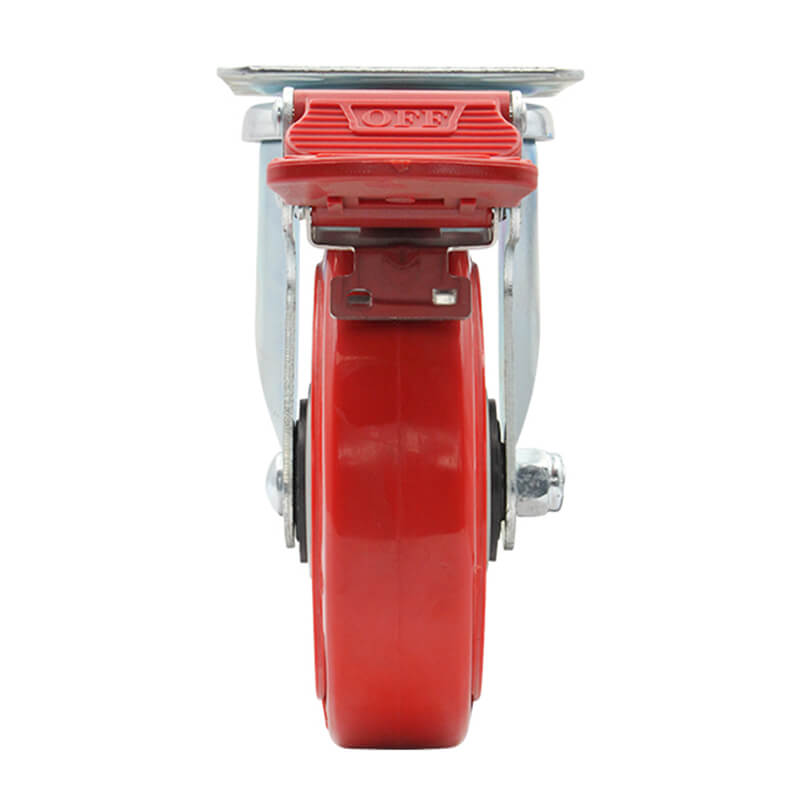

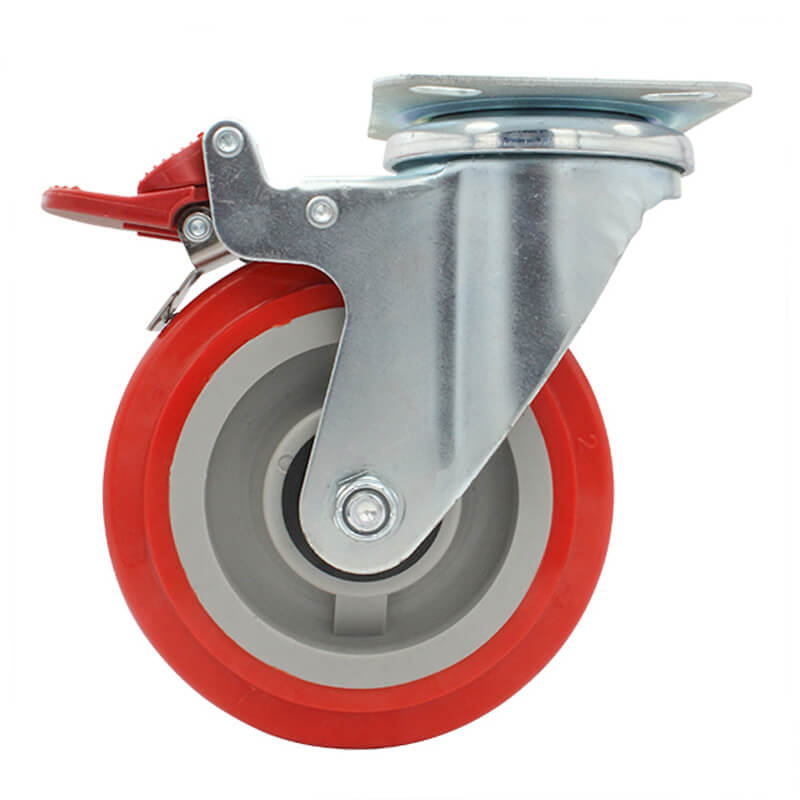

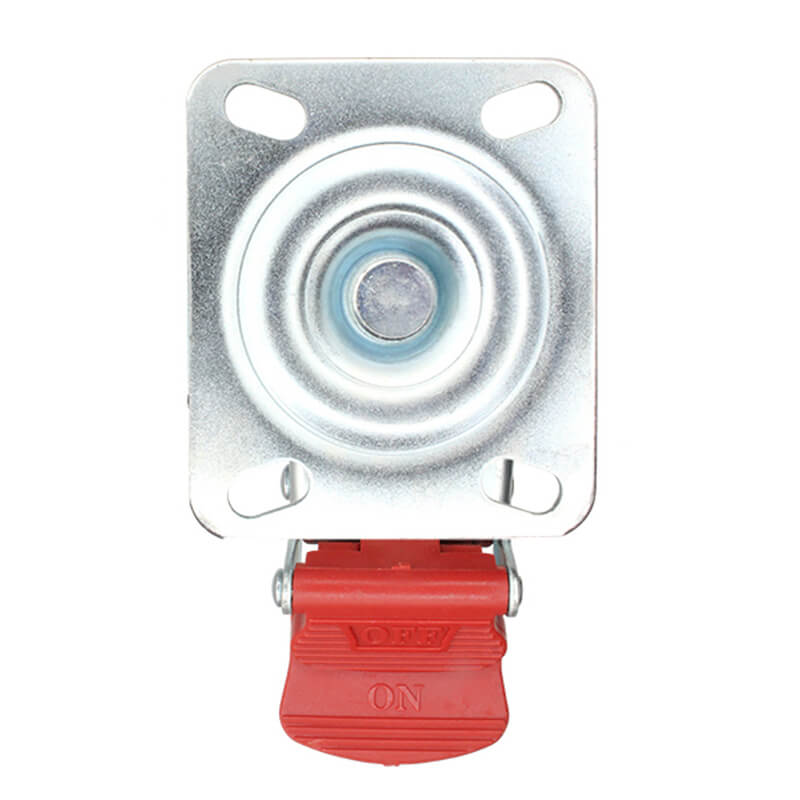

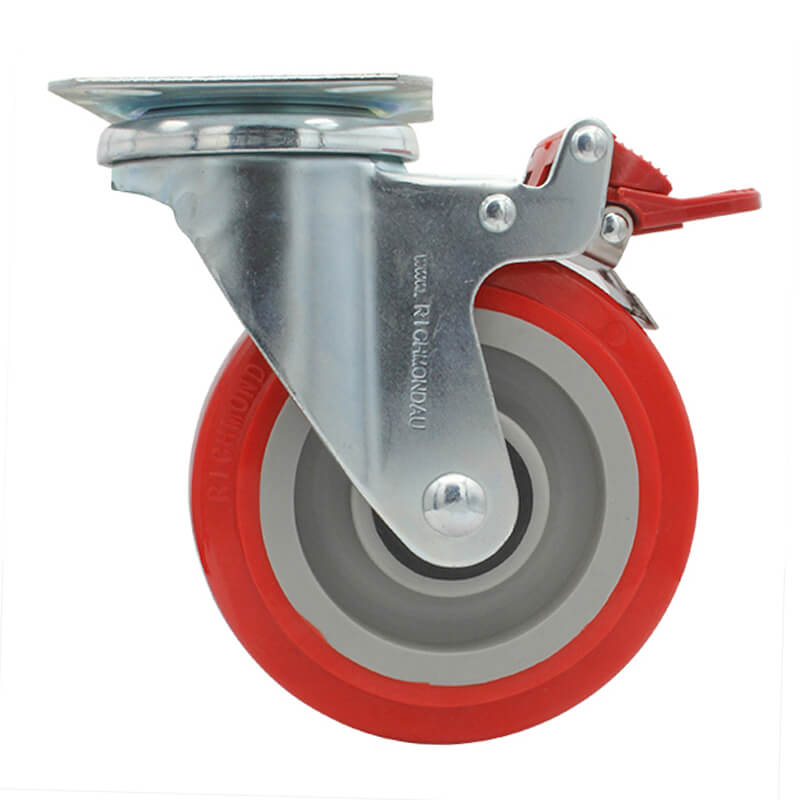

125mm Polyurethane Tyred Nylon Centred Wheel, 200kg Capacity Swivel Brake Castor (S5044B)
Frame Type: Swivel Brake
$64.48 ex. GST
$70.93 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S5044B from Richmond Rolling Solutions is a swivel frame castor and uses a polyurethane wheel. This swivel castor is part of our 300 series plate range and can hold loads up to 200kg. The S5044B wheel is fitted with roller bearings and is baseplate mount. The swivel frame of this castor permits the load to be steered. The polyurethane wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU5508). For the same castor without a brake, see S5044.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S5044B |
|---|---|
| Wheel Diameter (mm) | 125 mm |
| Frame Type | Swivel Brake |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Polyurethane Tyred Nylon Centred |
| Wheel Code | PU5508 |
| Wheel Bearing Type | Roller Bearing |
| Castor Height (mm) | 157 mm |
| Swivel Radius (mm) | 125 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
