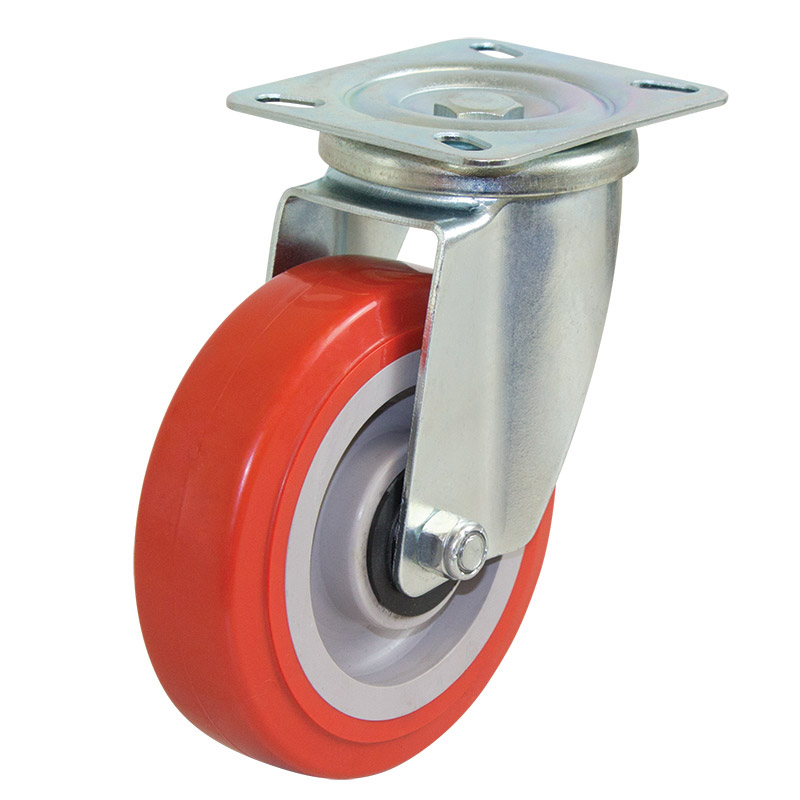

The S5044 from Richmond Rolling Solutions is a swivel frame castor and has a polyurethane wheel. This swivel castor is in our 300 series plate range and can safely take loads up to 200kg. The S5044 uses roller bearings for wheel rotation and is baseplate mount. The swivel frame design of this castor allows the load to be steered. The polyurethane wheel diameter is 125mm, the wheel width is 35mm and can be ordered separately (PU5508). For the same castor with a brake, see S5044B.

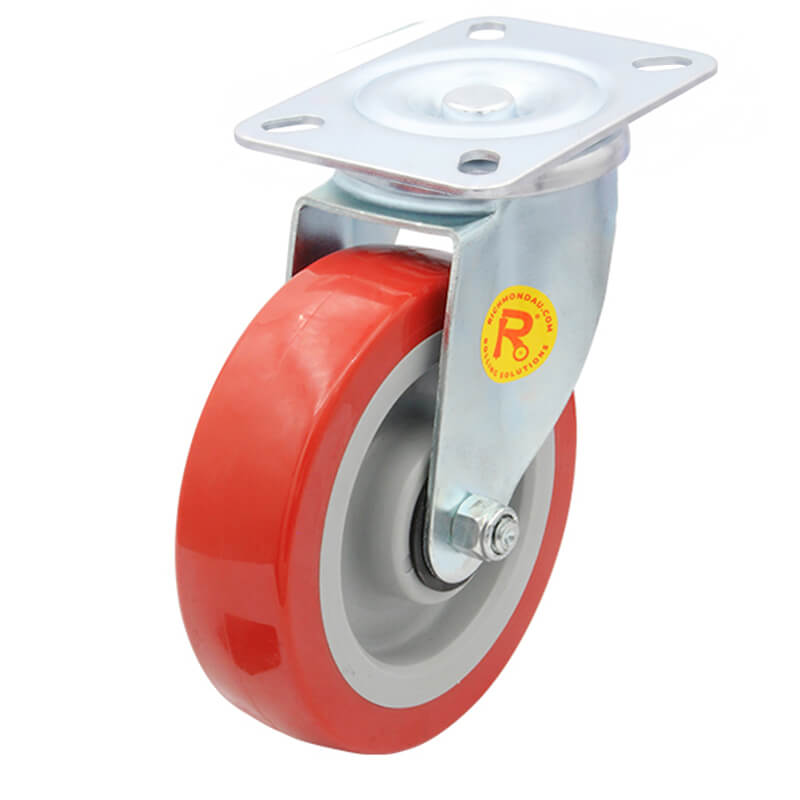

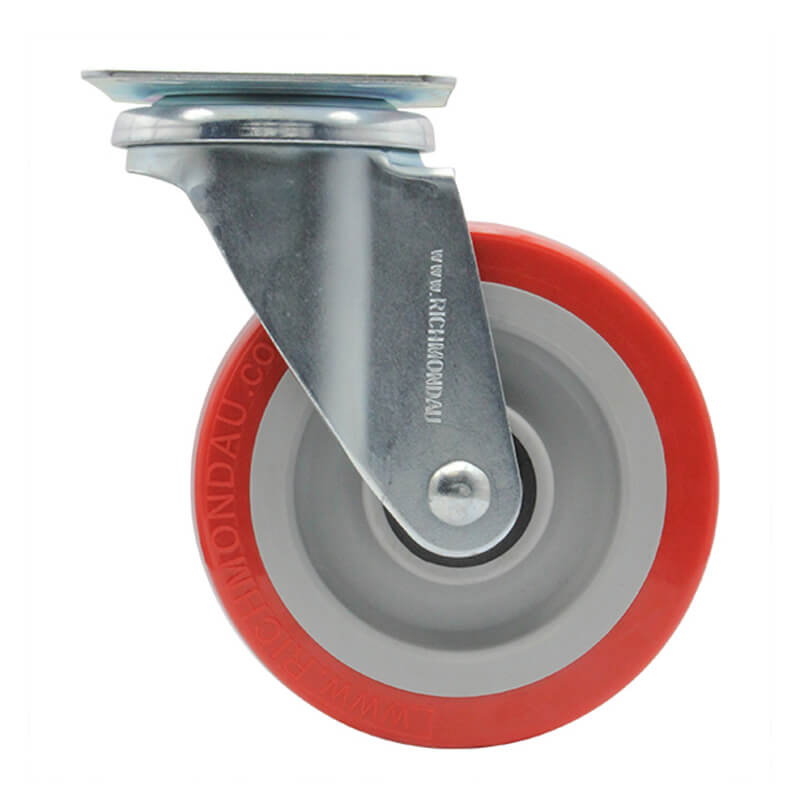

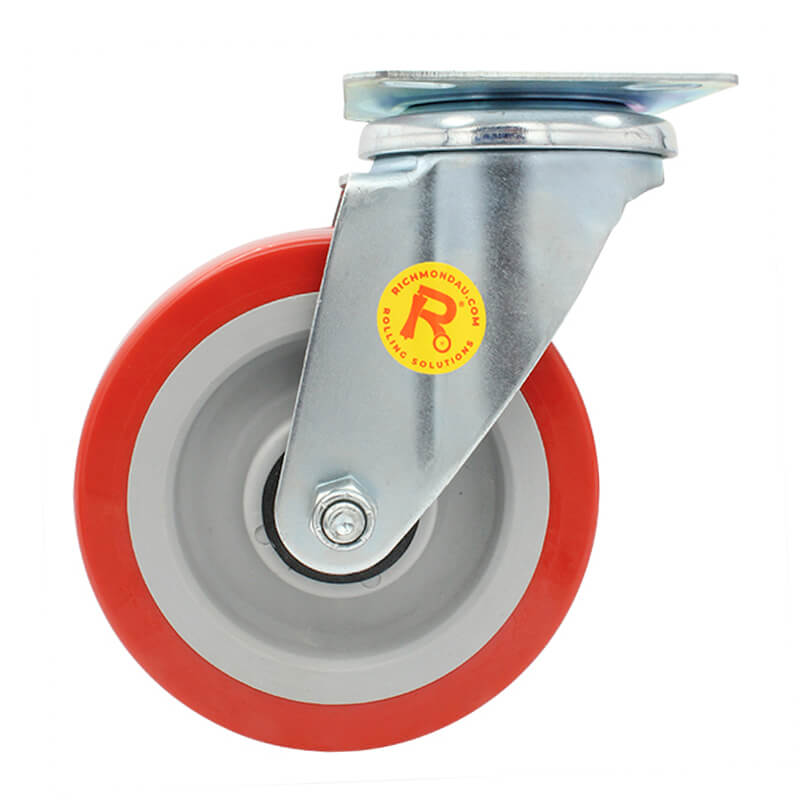

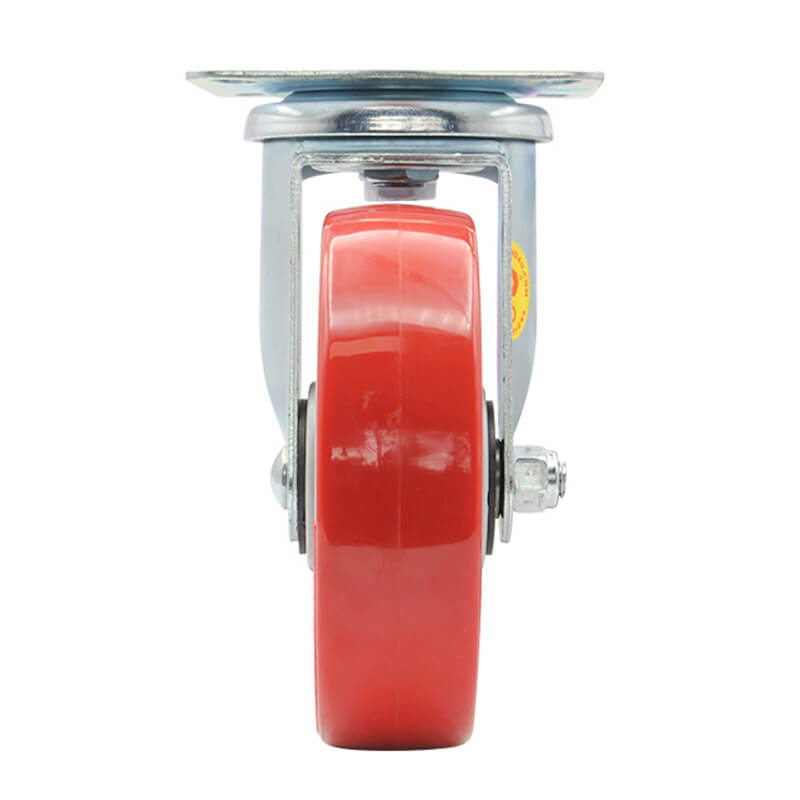

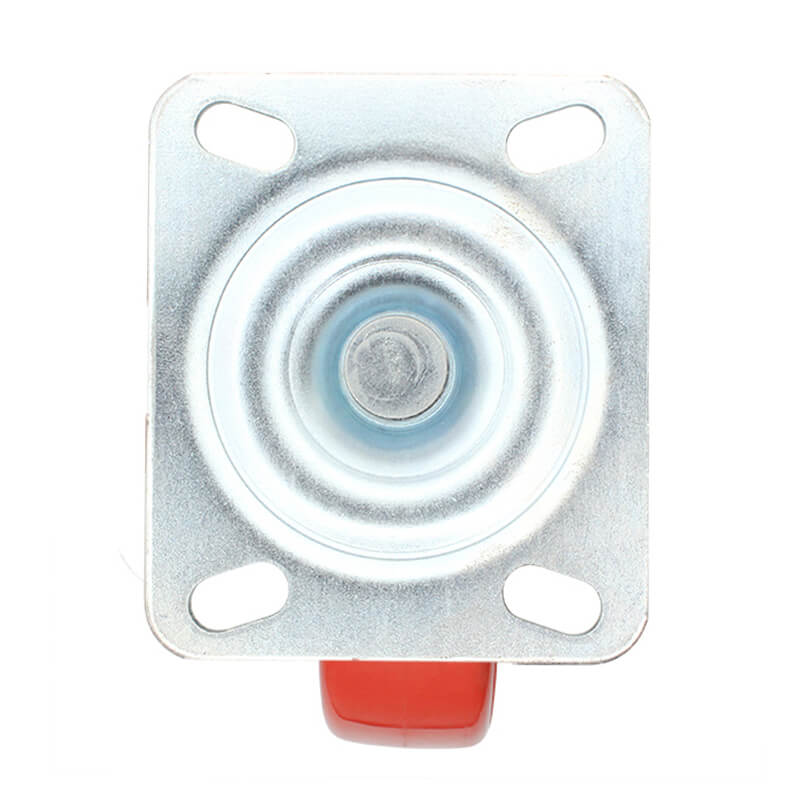

125mm Polyurethane Tyred Nylon Centred Wheel, 200kg Capacity Swivel Castor (S5044)
Frame Type: Swivel
$52.10 ex. GST
$57.31 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S5044 from Richmond Rolling Solutions is a swivel frame castor and has a polyurethane wheel. This swivel castor is in our 300 series plate range and can safely take loads up to 200kg. The S5044 uses roller bearings for wheel rotation and is baseplate mount. The swivel frame design of this castor allows the load to be steered. The polyurethane wheel diameter is 125mm, the wheel width is 35mm and can be ordered separately (PU5508). For the same castor with a brake, see S5044B.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S5044 |
|---|---|
| Wheel Diameter (mm) | 125 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Polyurethane Tyred Nylon Centred |
| Wheel Code | PU5508 |
| Wheel Bearing Type | Roller Bearing |
| Castor Height (mm) | 157 mm |
| Swivel Radius (mm) | 90 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
