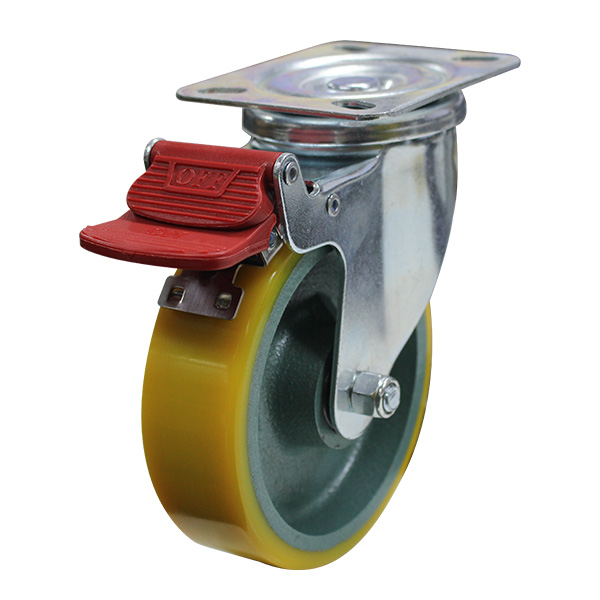

The S5048B by Richmond is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is part of our 300 series plate range and can hold loads up to 200kg. The S5048B is assembled with ball bearings on the castors axle and is mounted with the baseplate. The swivel frame permits the load to be steered. The overall polyurethane tyred cast iron wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU549). For the same castor without a brake, see S5048.
125mm Polyurethane Tyred Cast Iron Centred Wheel, 200kg Capacity Swivel Brake Castor (S5048B)
$53.25 ex. GST
$58.58 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S5048B |
|---|---|
| Wheel Diameter (mm) | 125 mm |
| Frame Type | Swivel Brake |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Polyurethane Tyred Cast Iron Centred |
| Wheel Code | PU549 |
| Wheel Bearing Type | Rubber Sealed Deep Groove Ball Bearings |
| Castor Height (mm) | 157 mm |
| Swivel Radius (mm) | 125 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
