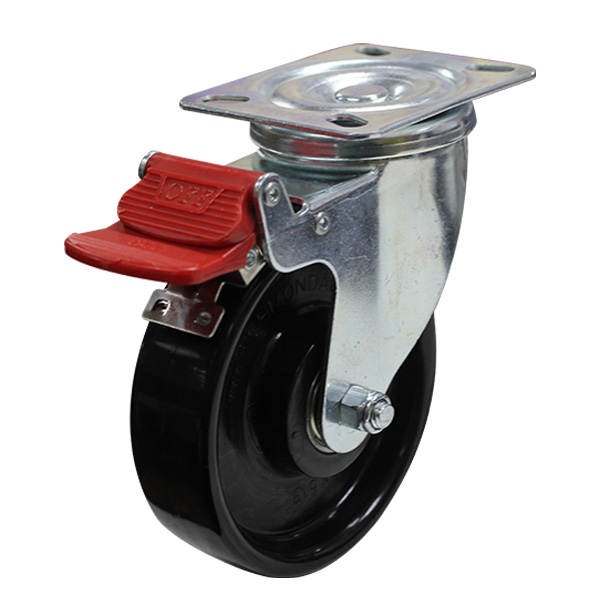

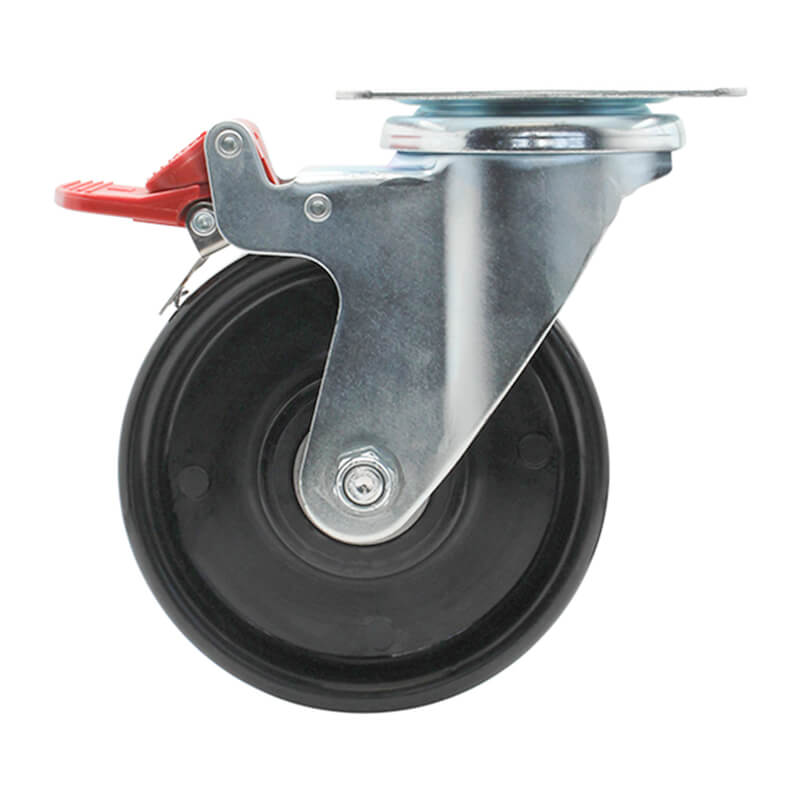

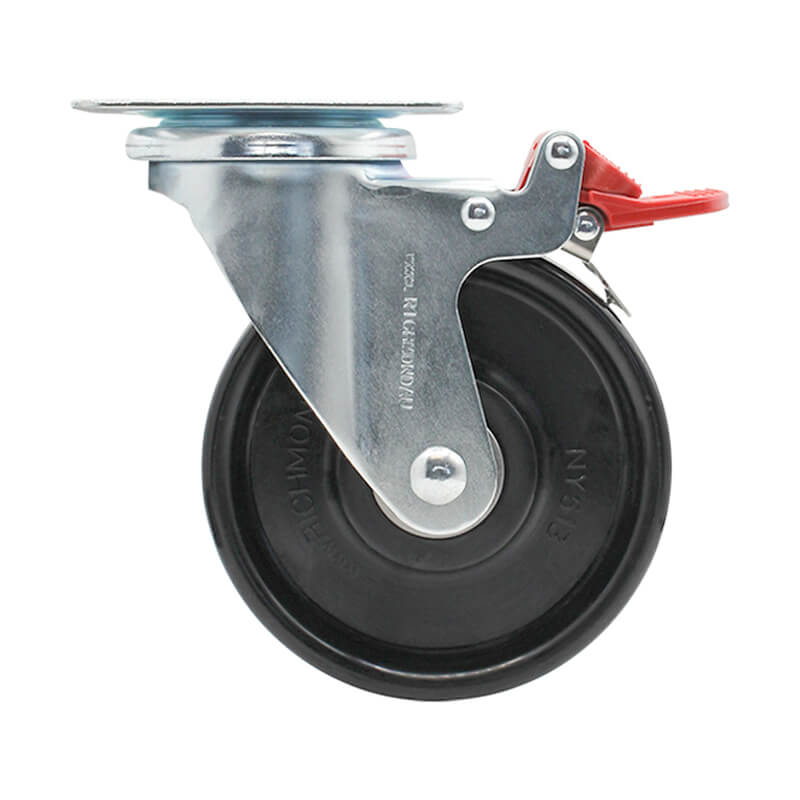

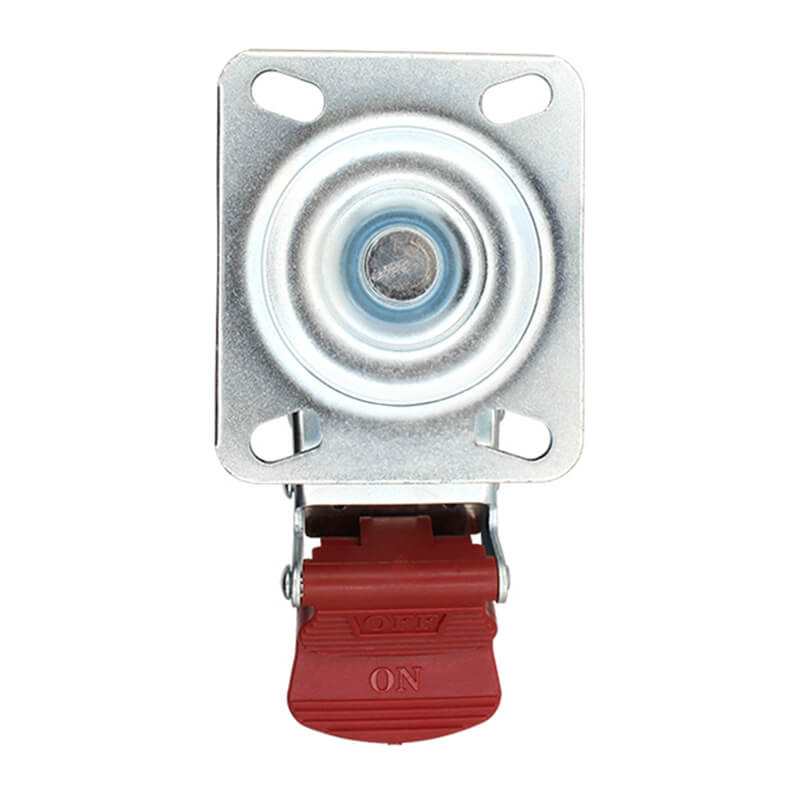

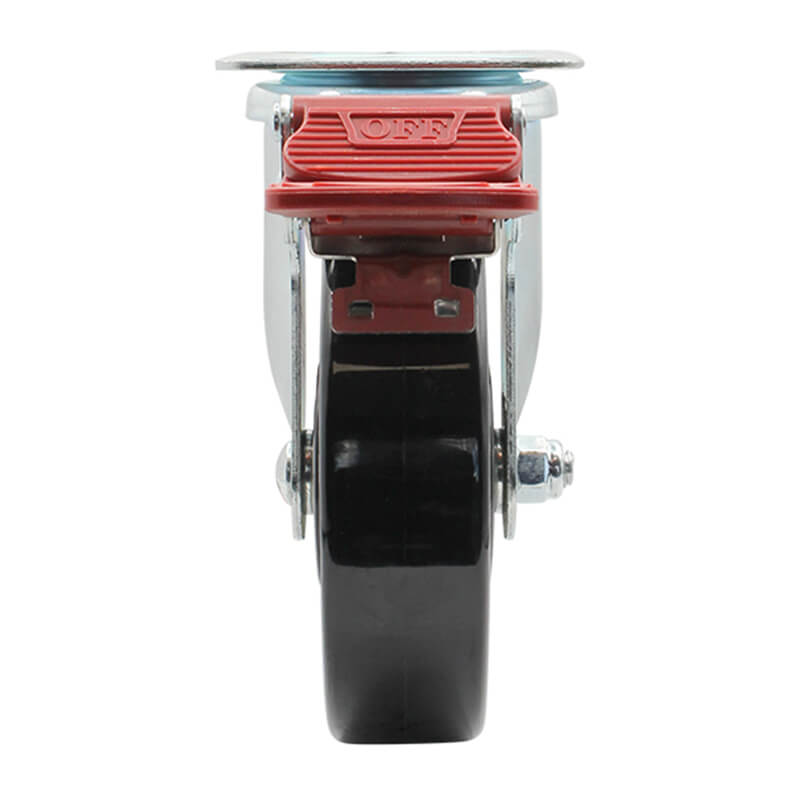

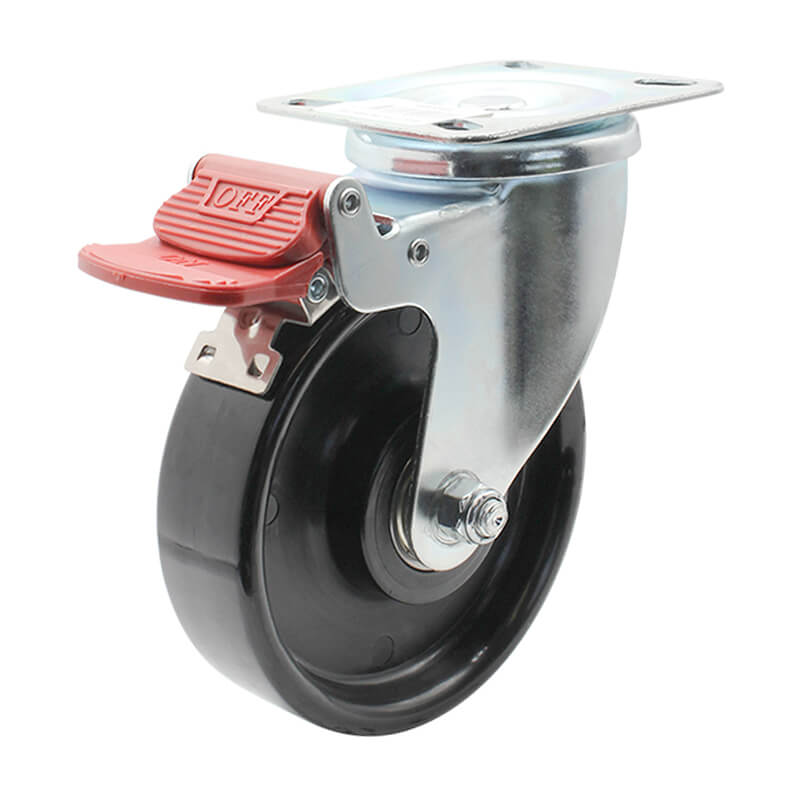

The S5034B by Richmond Rolling Solutions is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is one of our 300 series plate range and has a top load capacity of 200kg. The S5034B wheel is fitted with ball bearings and is baseplate mount. This castors swivel frame allows full swivel rotation to enable steering. The diameter of the nylon wheel is 125mm, the wheel width is 35mm and can be ordered separately (NY513). To order this castor without a brake, search for S5034.
125mm Nylon Wheel 200kg Capacity Castor (S5034B)
Frame Type: Swivel Brake
$63.02 ex. GST
$69.32 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S5034B by Richmond Rolling Solutions is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is one of our 300 series plate range and has a top load capacity of 200kg. The S5034B wheel is fitted with ball bearings and is baseplate mount. This castors swivel frame allows full swivel rotation to enable steering. The diameter of the nylon wheel is 125mm, the wheel width is 35mm and can be ordered separately (NY513). To order this castor without a brake, search for S5034.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S5034B |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY513 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 125 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
