125mm Nylon Wheel 200kg Capacity Castor (S5032B)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

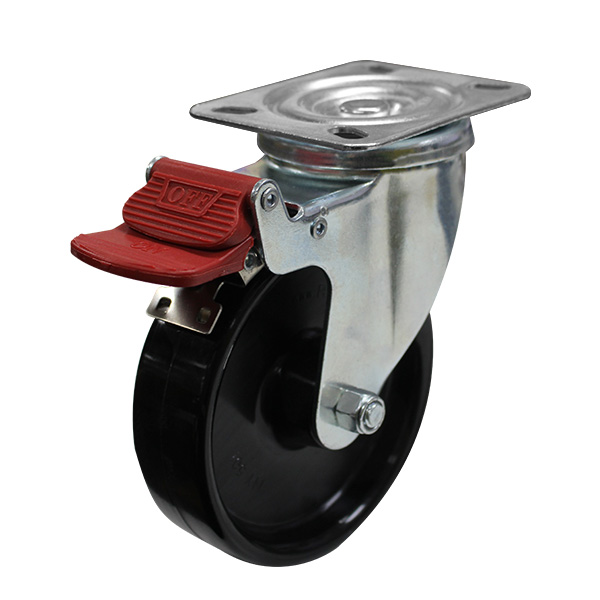

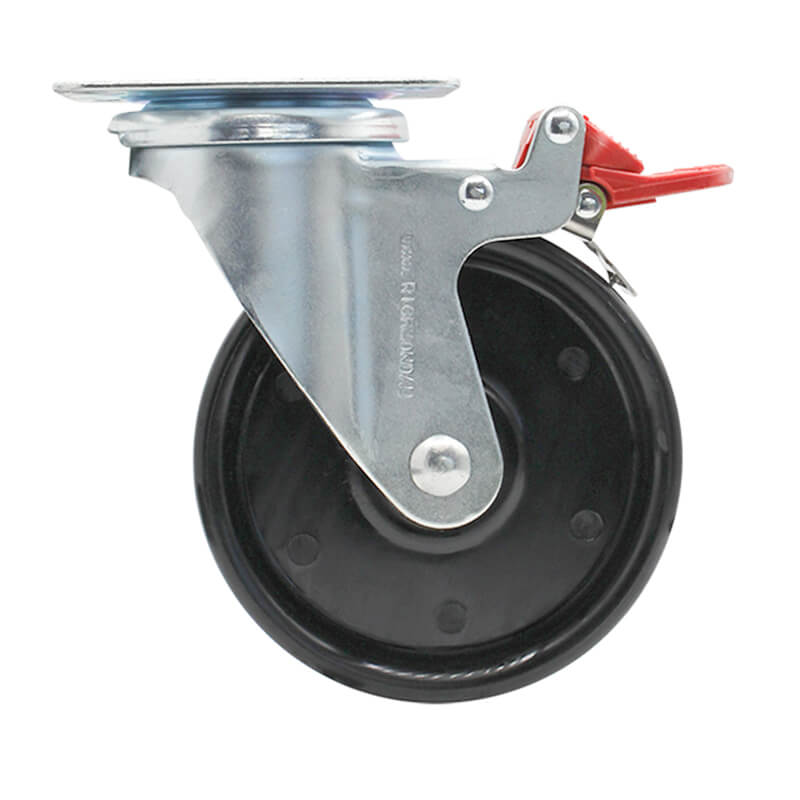

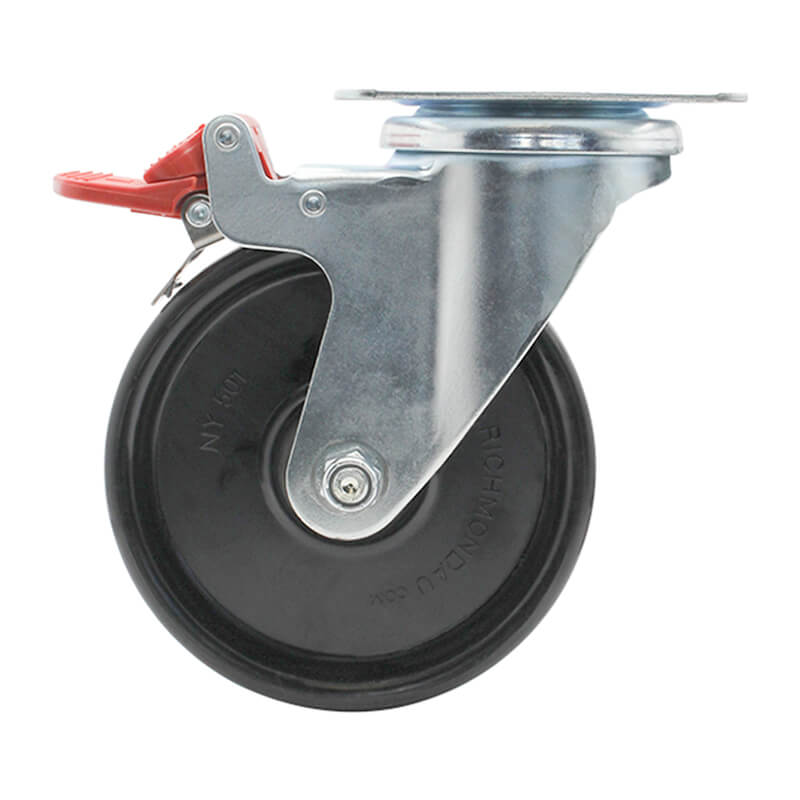

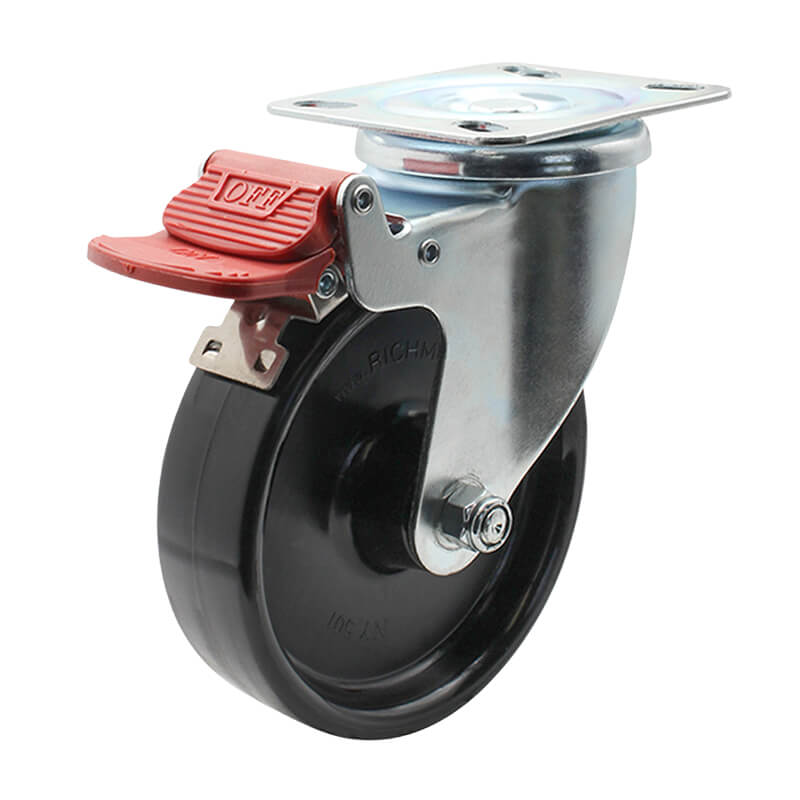

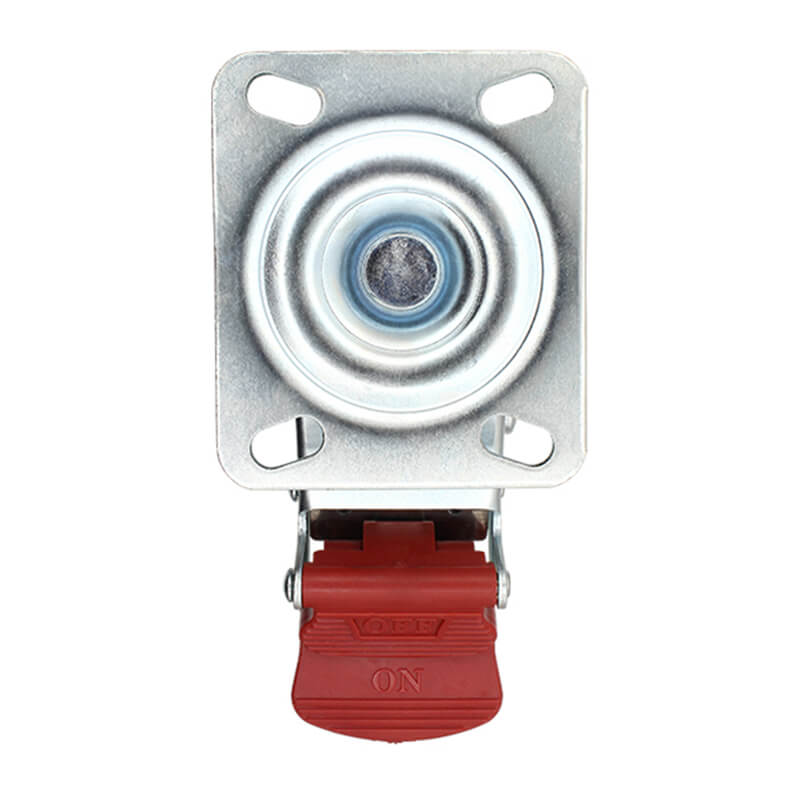

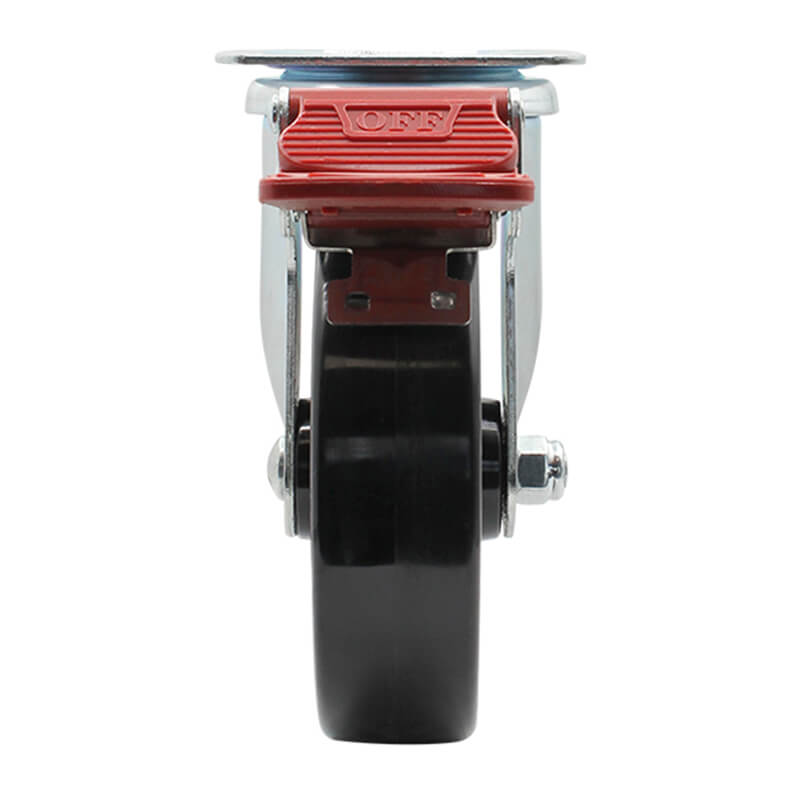

The S5032B from Richmond Wheel and Castor Co. is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our 300 series plate range and has a maximum capacity of 200kg. The S5032B uses plain bearings for wheel rotation and is baseplate mount. This castors swivel frame allows the load to be steered. The overall nylon wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501). To order this castor without a brake, search for S5032.

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code S5032B
Wheel Diameter (mm) 125
Frame Type Swivel with Brake
Wheel Width (mm) 35
Wheel Type Nylon
Wheel Code NY501
Wheel Bearing Type Plain Bore
Castor Height (mm) 157
Swivel Radius (mm) 125
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Download CAD Drawing (STEP file) Download
Swivel with Brake

Swivel with Brake
