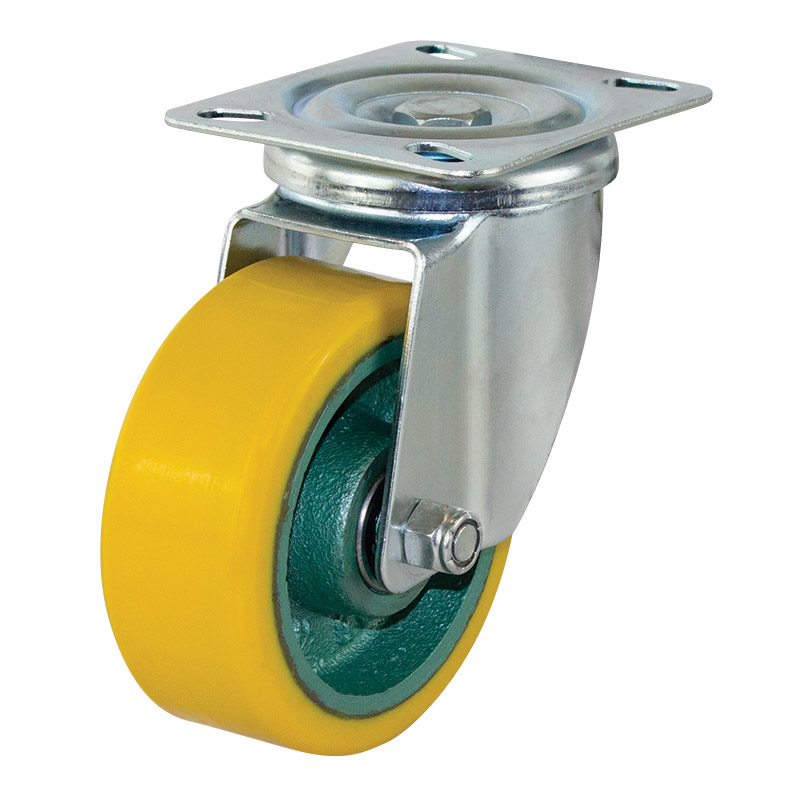

The S4048 from Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is part of our 300 series plate range and can hold loads up to 200kg. The S4048 is assembled with ball bearings on the castors axle and is mounted with the baseplate. The swivel frame permits the load to be steered. The outside diameter of the polyurethane tyred cast iron wheel is 100mm, the wheel width is 38mm and you can order separately (Part Number: PU449). To order this castor with a brake, search for S4048B.
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S4048 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 38 |
| Wheel Type | Poly Cast Iron |
| Wheel Code | PU449 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
