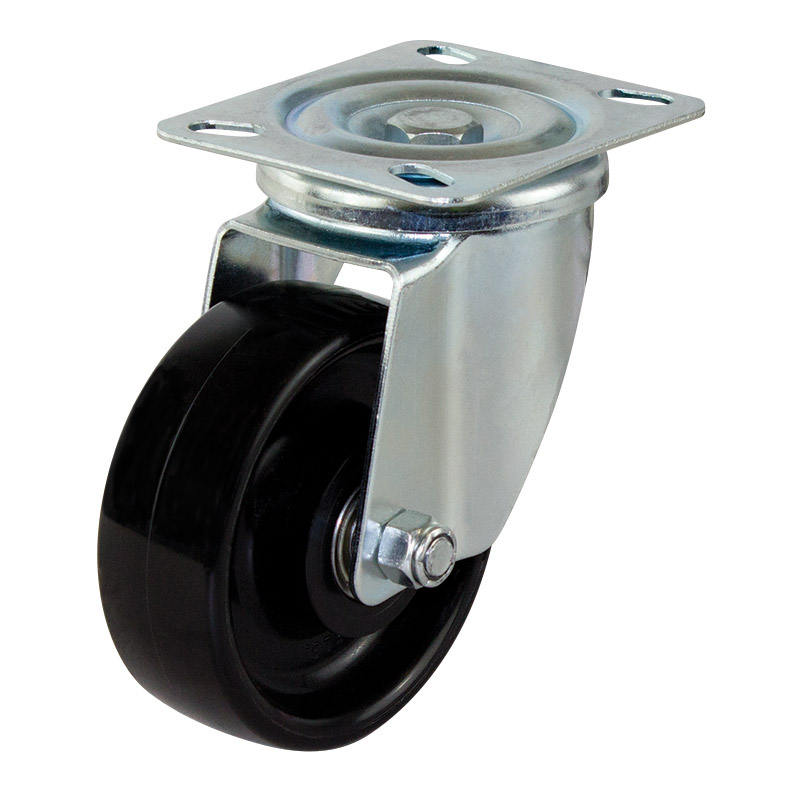

The S4034 from Richmond Rolling Solutions is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our 300 series plate range and can safely take loads up to 200kg. The S4034 is assembled with ball bearings on the castors axle and is baseplate mount. This castors swivel frame permits the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (NY413). For the same castor with a brake, see S4034B.
100mm Nylon Wheel, 200kg Capacity Swivel Castor (S4034)
Frame Type: Swivel
$28.62 ex. GST
$31.48 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S4034 from Richmond Rolling Solutions is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our 300 series plate range and can safely take loads up to 200kg. The S4034 is assembled with ball bearings on the castors axle and is baseplate mount. This castors swivel frame permits the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (NY413). For the same castor with a brake, see S4034B.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S4034 |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Nylon |
| Wheel Code | NY413 |
| Wheel Bearing Type | Steel Shielded Deep Groove Ball Bearings |
| Castor Height (mm) | 130 mm |
| Swivel Radius (mm) | 90 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
