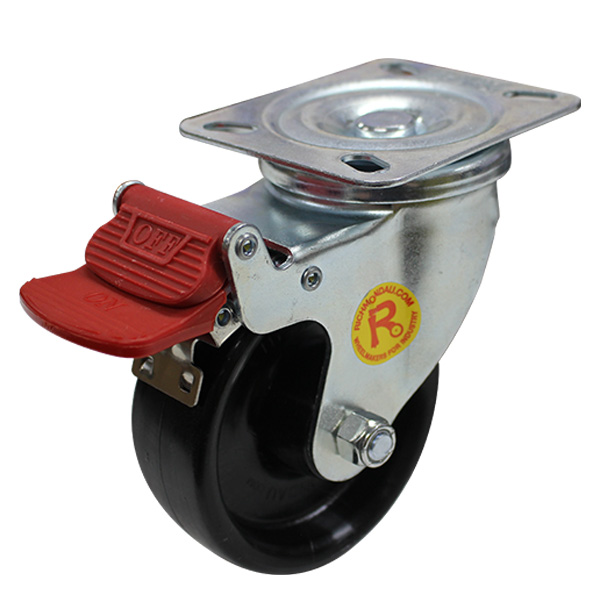

100mm Nylon Wheel 200kg Capacity Castor (S4032B)

The S4032B by Richmond Rolling Solutions is a swivel frame castor and has a nylon wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 200kg. The S4032B is assembled with plain bearings on the castors axle and is plate mount. This castors swivel frame allows the castor to swivel 360°. The outside diameter of the nylon wheel is 100mm, the wheel width is 35mm and can be ordered separately (NY401). For the same castor without a brake, see S4032.

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code S4032B
Wheel Diameter (mm) 100
Frame Type Swivel with Brake
Wheel Width (mm) 35
Wheel Type Nylon
Wheel Code NY401
Wheel Bearing Type Plain Bore
Castor Height (mm) 130
Swivel Radius (mm) 125
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Download CAD Drawing (STEP file) Download
Swivel with Brake
