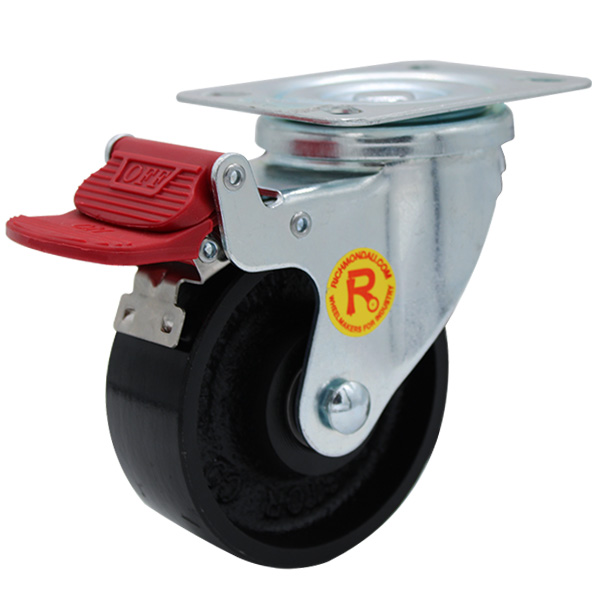

The S4052B by Richmond Rolling Solutions is a swivel frame castor and features a cast iron wheel. This swivel castor is in our 300 series plate range and has a top load capacity of 200kg. The S4052B wheel is fitted with ball bearings and is baseplate mount. The swivel frame of this castor allows the castor to swivel 360°. The overall cast iron wheel diameter is 100mm, the wheel width is 38mm and can be ordered separately (Ci400). For the same castor without a brake, see S4052.
100mm Cast Iron Wheel, 200kg Capacity Swivel Brake Castor (S4052B)
$52.72 ex. GST
$57.99 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S4052B |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Swivel Brake |
| Wheel Width (mm) | 38 mm |
| Wheel Type | Cast Iron |
| Wheel Code | Ci400 |
| Wheel Bearing Type | Rubber Sealed Deep Groove Ball Bearings |
| Castor Height (mm) | 130 mm |
| Swivel Radius (mm) | 125 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |

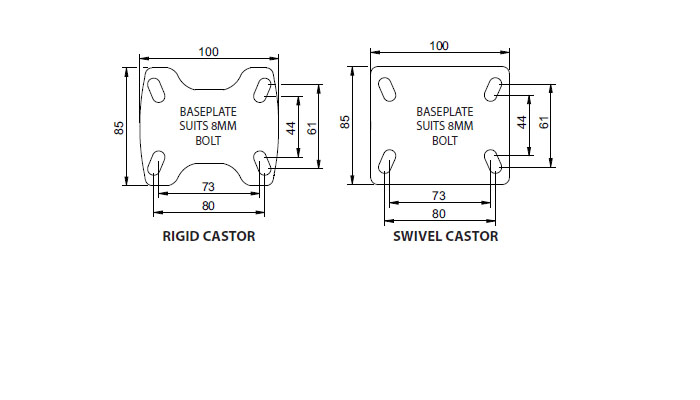

| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
