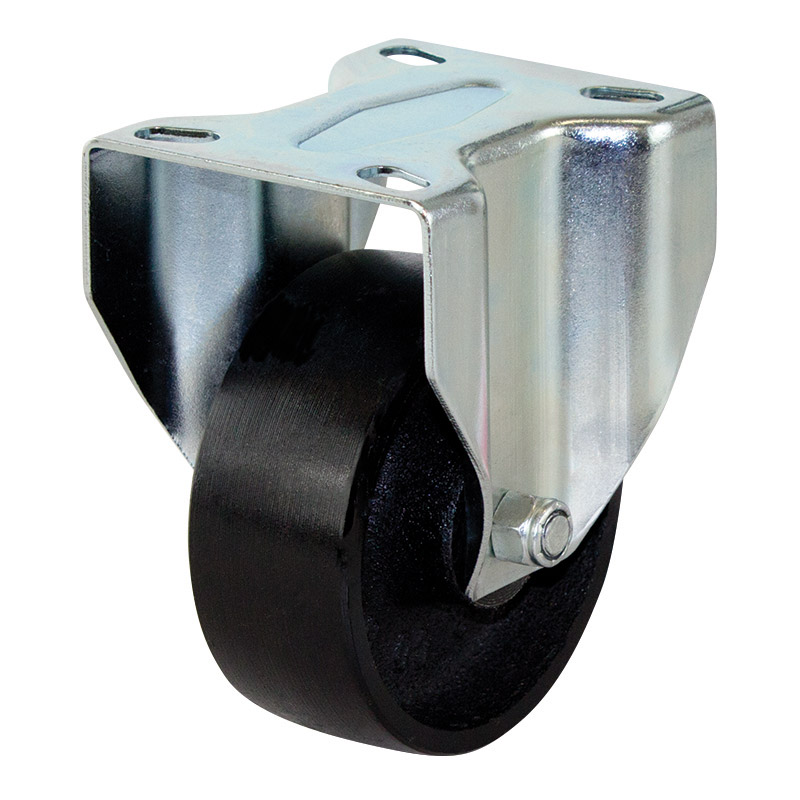

The R4051 from Richmond Wheel and Castor Co. is a rigid frame castor and is fitted with a cast iron wheel. This rigid castor is one of our 300 series plate range and can hold loads up to 200kg. The R4051 is assembled with plain bearings on the castors axle and is plate mount. The rigid frame allows for steering only when used with swivel castors. The diameter of the cast iron wheel is 100mm, the wheel width is 38mm and can be ordered separately (Ci421).
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | R4051 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Rigid |
| Wheel Width (mm) | 38 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci421 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 130 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Temperature range (°C) | -30° to 300° |
| Download CAD Drawing (STEP file) | Download |
|---|
