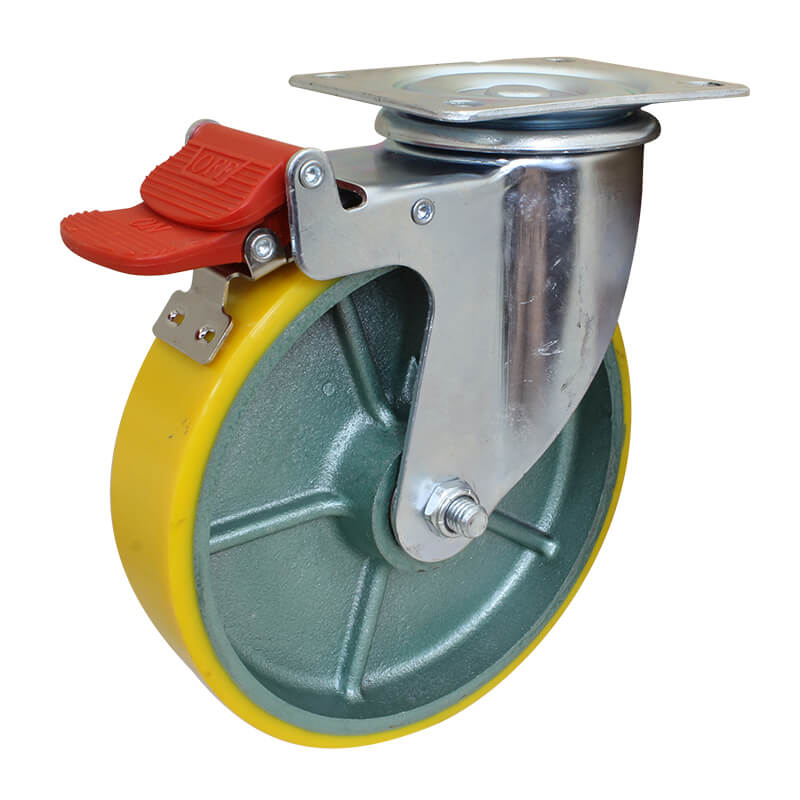

The S8048B from Richmond Rolling Solutions is a swivel frame castor and uses a polyurethane wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 300kg. The S8048B is assembled with ball bearings on the castors axle and is mounted with the baseplate. This castors swivel frame allows the castor to swivel 360°. The outside diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and can be ordered separately (PU849). This model can also be ordered without a brake (part number S8048).
200mm Polyurethane Wheel, 300kg Capacity Swivel Brake Castor (S8048B)
Frame Type: Swivel Brake
$110.01 ex. GST
$121.01 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S8048B from Richmond Rolling Solutions is a swivel frame castor and uses a polyurethane wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 300kg. The S8048B is assembled with ball bearings on the castors axle and is mounted with the baseplate. This castors swivel frame allows the castor to swivel 360°. The outside diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and can be ordered separately (PU849). This model can also be ordered without a brake (part number S8048).
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S8048B |
|---|---|
| Wheel Diameter (mm) | 200 mm |
| Frame Type | Swivel Brake |
| Wheel Width (mm) | 50 mm |
| Wheel Type | Polyurethane |
| Wheel Code | PU849 |
| Wheel Bearing Type | Rubber Sealed Deep Groove Ball Bearings |
| Castor Height (mm) | 237 mm |
| Swivel Radius (mm) | 170 mm |
| Maximum Load Capacity (kg) | 300 kg |
| Recommended Load Capacity (kg) | 225 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |

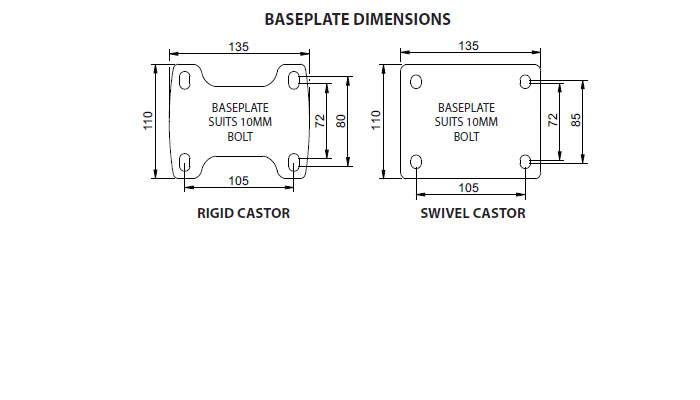

| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
