Fixed load skate designed for moving machinery and equipment up to 2500kg across smooth industrial floors in workshops, warehouses, and maintenance environments.
2500kg load capacity: Suitable for moving machinery, equipment, and heavy industrial components.
Two nylon rollers: Large diameter rollers help distribute load weight and allow smooth movement under load.
Fixed skate design: Ideal for straight line movement and commonly used alongside steerable load skates.
Rubber topped platform: Improves load grip and helps protect equipment during transport.
Heavy duty steel construction: Designed for regular use in industrial, workshop, and warehouse environments.
Description

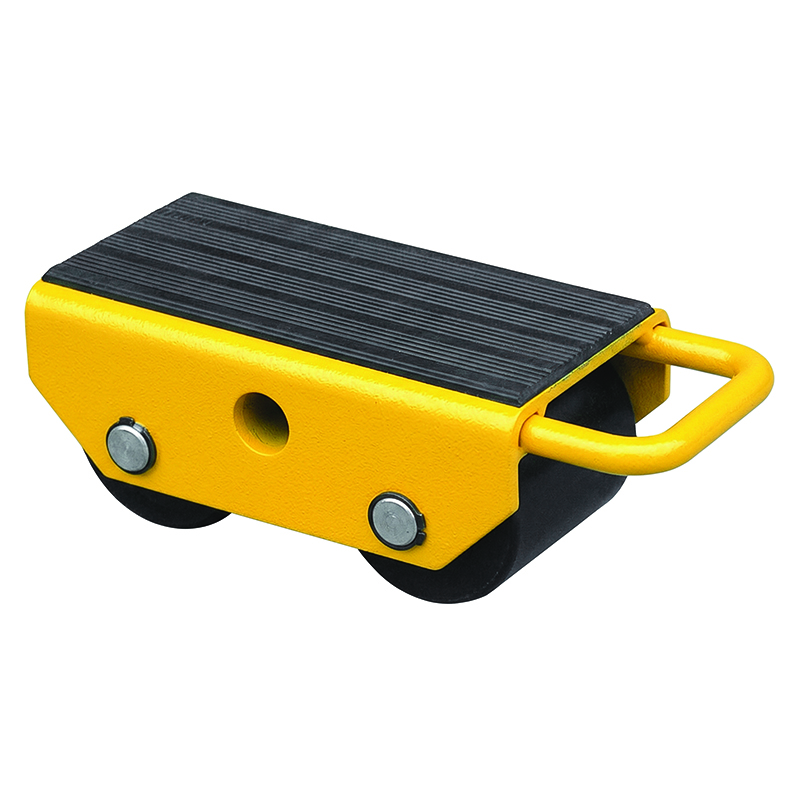

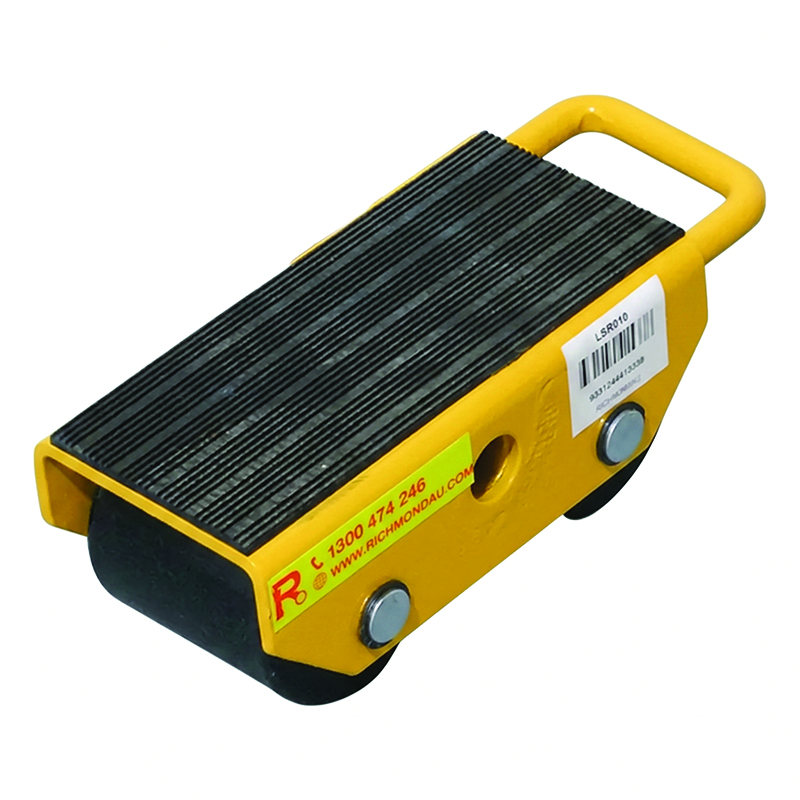

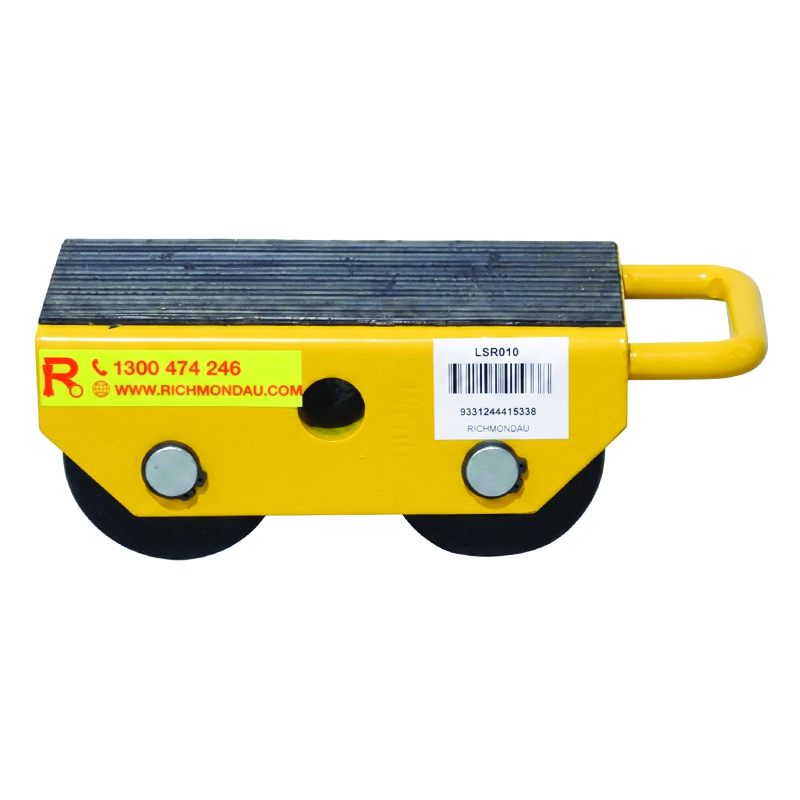

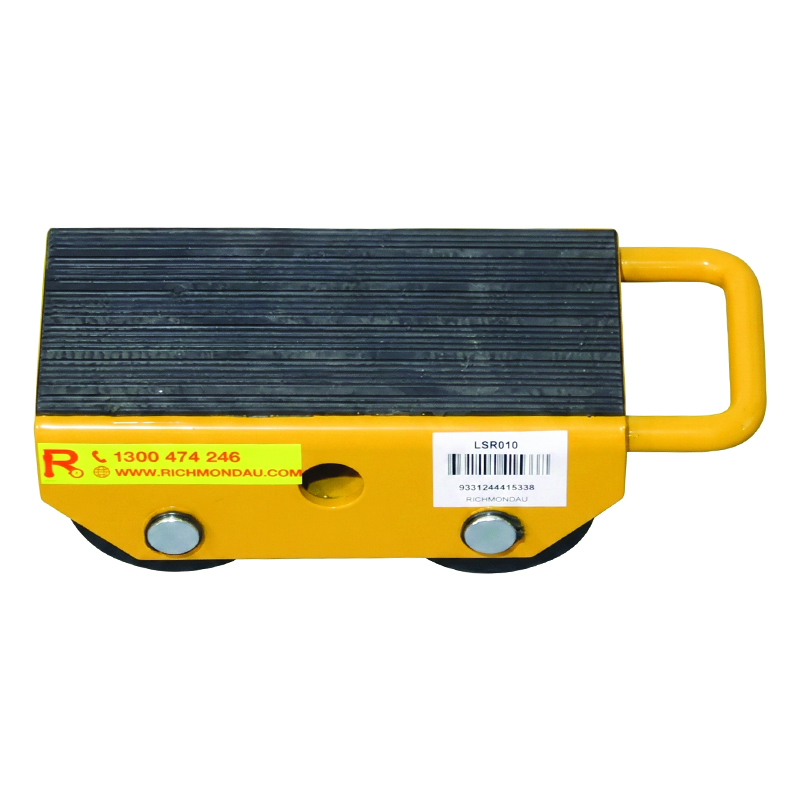

The 2.5 Tonne Fixed Load Skate is designed for moving machinery and equipment across smooth, level industrial floors. With a load capacity of 2500kg, this skate features a durable steel frame and two large diameter nylon rollers that help distribute weight evenly while allowing loads to move smoothly during transport. The rubber topped platform improves stability and helps protect the underside of equipment while it is being relocated.
This fixed skate is commonly used with steerable load skates to help guide and support heavy loads during machinery installation, relocation, or maintenance tasks. The low profile design allows the skate to be positioned easily once the load is raised slightly using a roller crowbar or jack. Integrated carry handles make it easier to move and place the skate during setup, making it suitable for workshops, factories, warehouses, and other industrial environments.
Product FAQs
The LSR010 is designed to move heavy loads up to 2.5 tonnes in a straight line. It’s ideal for machinery relocation, equipment installation, and static load positioning on smooth indoor floors.
No. This is a fixed load skate with a rigid, non-turning design. It’s intended to be used as a rear support skate in a three-point load moving system, with a steerable front skate such as the LSR012.
While technically possible, it’s not recommended. For directional control and load stability, the LSR010 should be used in conjunction with a steerable skate for safe and effective movement.
The LSR010 uses heavy-duty nylon wheels, offering low rolling resistance and excellent durability on clean, level surfaces such as factory concrete or epoxy-coated floors.
It must be used on smooth, flat, indoor surfaces. It is not suitable for use on uneven, sloped, or rough terrain, as the fixed design offers no ability to compensate for surface irregularities.
No. The LSR010 platform does not feature integrated load-securing hardware or a non-slip top. Richmond recommends securing loads with ratchet straps and placing anti-slip material between the load and the skate.
LSR011 is an entry-level 1 tonne skate with four swivel castors for light, low-risk repositioning.
LSR010 is fixed and supports heavier loads (2.5 tonnes), but offers no steering.
LSR012 is a steerable unit with a turntable and handle attachment point, ideal as the front component in a three-point system with the LSR010 as the rear support.
This model is commonly used by machinery installers, riggers, and maintenance technicians needing a reliable fixed skate to support medium-weight loads during plant relocations or refits.
