The WBT1600 Electric Wheelie Bin Tipper provides a powered solution for lifting and emptying standard 80L, 120L, 140L and 240L wheelie bins weighing up to 150kg into larger waste containers, skips and processing equipment.
Suits 80L, 120L, 140L and 240L wheelie bins: the bin caddy is designed around standard wheelie bin widths, allowing compatible bin sizes to be loaded without adjustment.
Electric powered lifting and tipping: reduces the manual handling involved in lifting and emptying loaded wheelie bins.
1600mm tipping height: designed for emptying bins into larger waste containers, skips and other suitable receptacles.
150kg lifting capacity: designed to lift loaded wheelie bins weighing up to 150kg.
Fast tipping cycle: approximately 7 seconds to tip, with a complete tipping cycle of approximately 13 seconds.
Rechargeable battery operation: powered by two 12V 58Ah gel lead-acid batteries for cordless operation around the workplace.
3–6 hour average battery runtime: provides extended operation between charges, depending on load, frequency of use and operating conditions.
Powder coated steel frame: durable construction designed for regular commercial and industrial use.
Galvanised steel bin caddy: provides a durable support area for the wheelie bin throughout the lifting and tipping cycle.
125mm non-marking rubber wheels: allows the unit to be repositioned while helping protect finished floors.
Built-in safety features: includes an emergency stop, overload protection, upper and lower limit switches, anti-slip braking and protective guarding to support safe, controlled operation during the lifting and tipping cycle.
Description

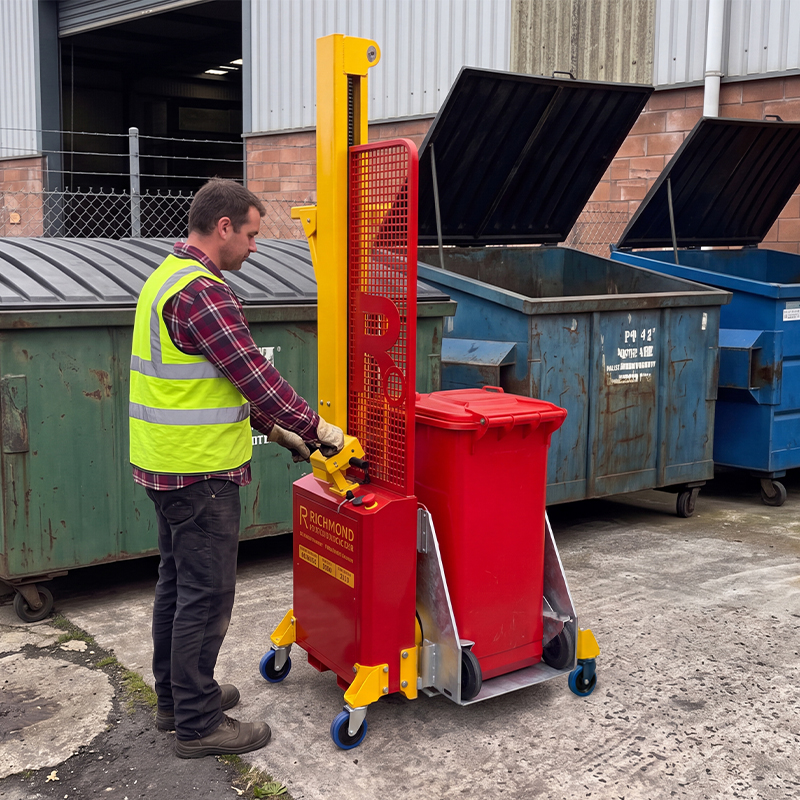

The WBT1600 Electric Wheelie Bin Tipper is designed to make routine waste handling safer, faster and easier in workplaces where smaller wheelie bins need to be emptied into larger waste containers. Rather than manually lifting or handling a loaded bin, the operator positions the wheelie bin within the galvanised steel caddy and uses the powered lifting system to raise and tip the bin.
The bin tipper has a maximum lifting capacity of 150kg and is compatible with standard 80L, 120L, 140L and 240L wheelie bins. The caddy is designed to accommodate the standard widths of each compatible bin size, allowing operators to move between bin sizes without having to adjust the machine. The unit reaches a tipping height of 1600mm and completes the full lift, tip and return cycle in approximately 13 seconds, with the tipping movement itself taking approximately 7 seconds.
Battery-powered operation allows the unit to be used without requiring a permanent power connection during operation. Two 12V 58Ah gel lead-acid batteries provide an average operating runtime of approximately 3–6 hours, depending on load, operating frequency, battery condition and working environment.

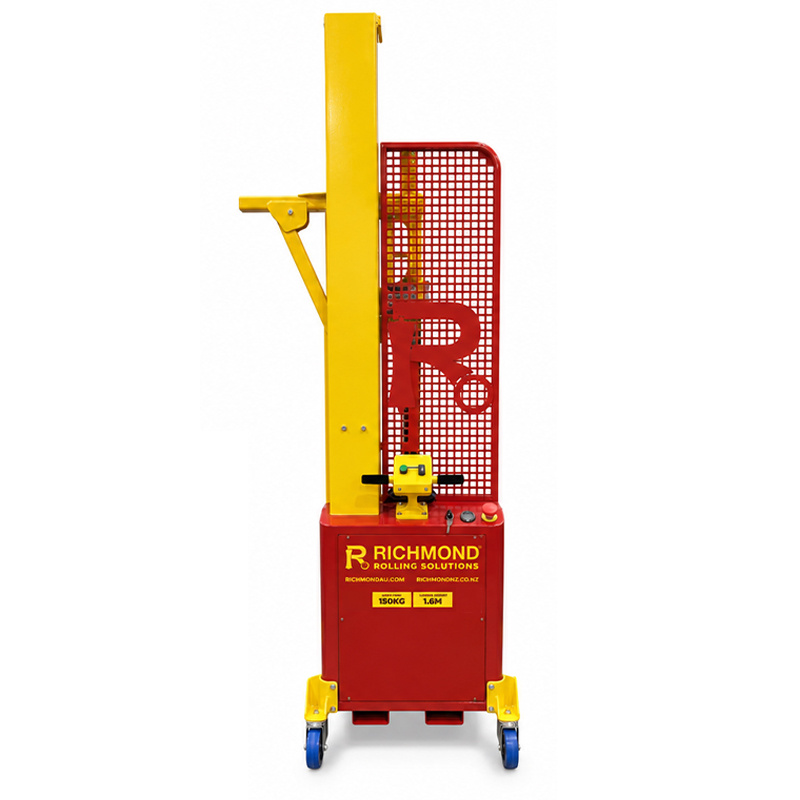

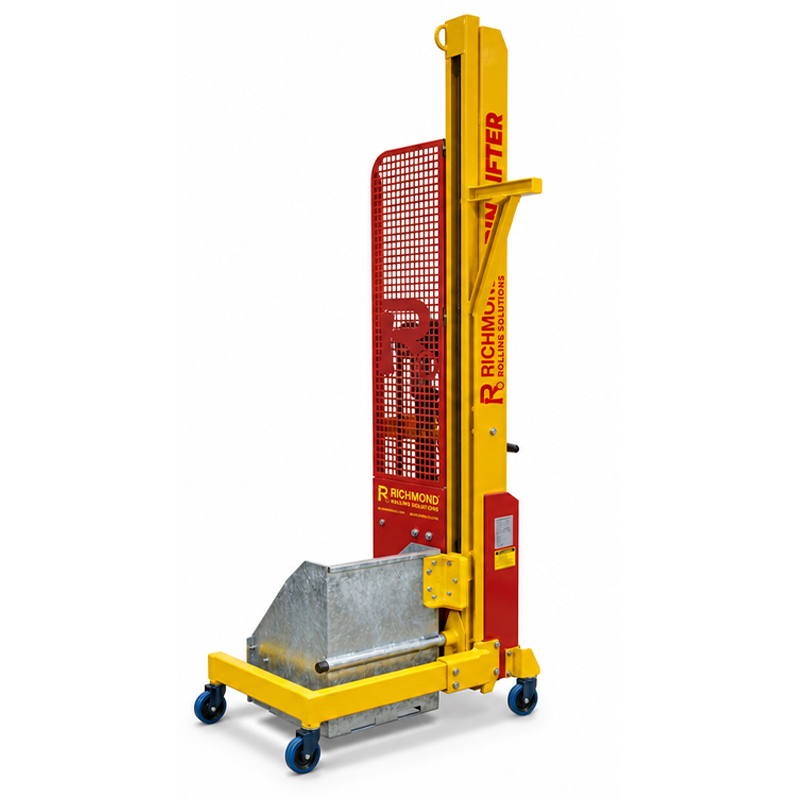

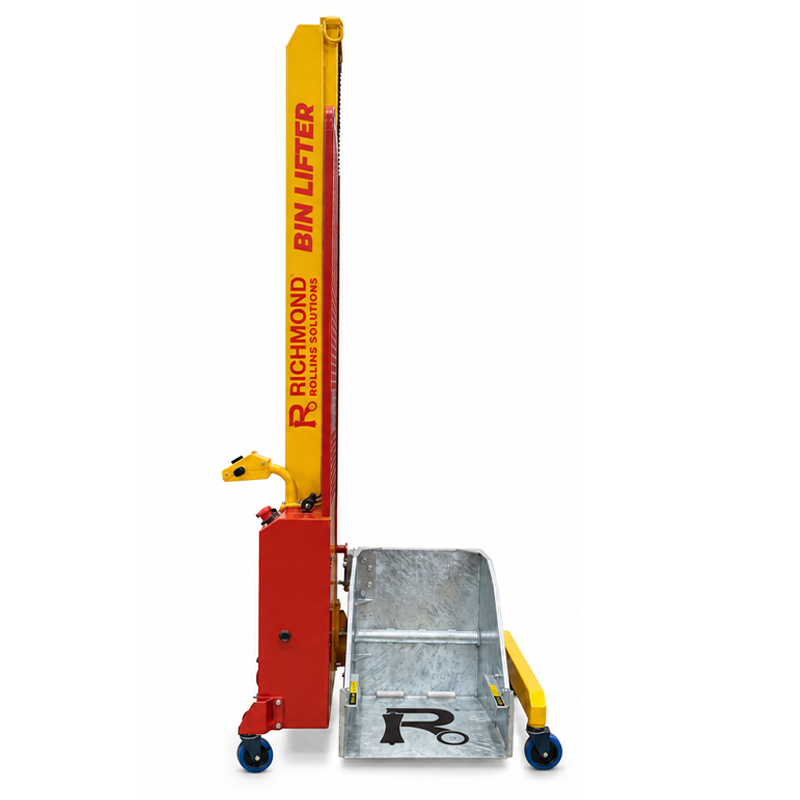

The WBT1600 is constructed with a powder coated steel frame and galvanised steel bin caddy, with 125mm non-marking rubber wheels allowing the unit to be repositioned around the workplace. A range of integrated safety features, including two-hand controls, emergency stop, overload protection, limit switches, braking and guarding, are incorporated into the design to support controlled operation.
This makes the WBT1600 a practical option for a wide range of workplaces where wheelie bins need to be emptied regularly, including warehouses and distribution centres, manufacturing and food production facilities, schools and universities, recycling and waste processing sites, commercial buildings, large retail facilities, councils and other industrial or public environments.
Product FAQs
The WBT1600 is designed for use with standard 80L, 120L, 140L and 240L wheelie bins.
No. The bin caddy is designed around the standard widths of compatible 80L, 120L, 140L and 240L wheelie bins, allowing different bin sizes to be loaded without adjusting the caddy.
The WBT1600 has a maximum lifting capacity of 150kg.

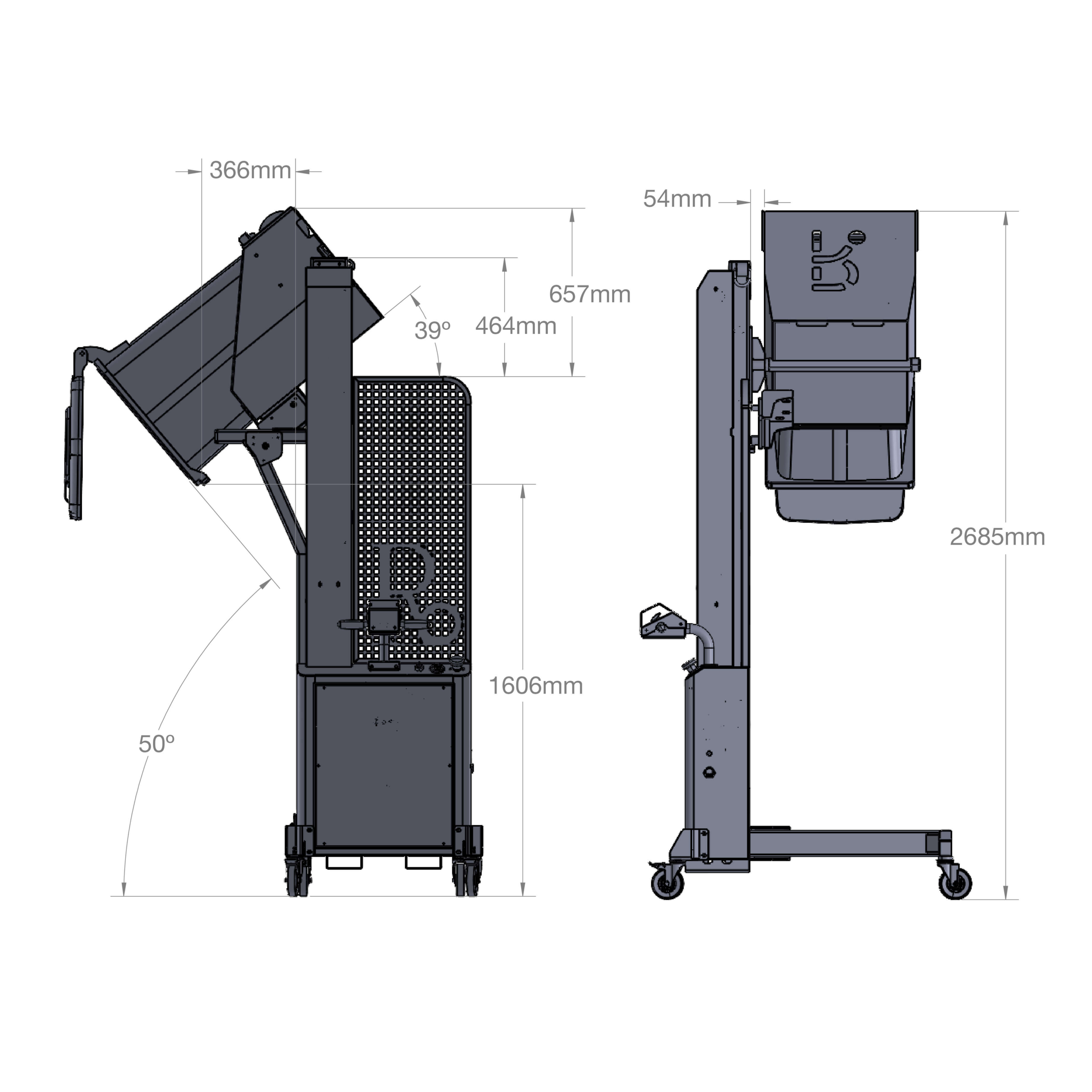

The unit has a tipping height of 1600mm (1.6m). The maximum overall height of the machine during the tipping cycle is approximately 2700mm, which should be considered when assessing overhead clearance.
The tipping movement takes approximately 7 seconds, with a complete lift, tip and return cycle taking approximately 13 seconds.
Average battery runtime is approximately 3–6 hours depending on the load, operating frequency, battery condition and working environment.
A full recharge takes approximately 8 hours.
No. The unit operates from its rechargeable onboard batteries, allowing it to be moved and used away from a fixed power connection.
Yes. The WBT1600 is suitable for indoor and outdoor applications and has an IP53 rating. Appropriate operating and storage conditions should still be followed.
Yes. The unit is fitted with 125mm non-marking rubber wheels so it can be repositioned around the workplace. The braking system should be engaged before operating the lifting mechanism.

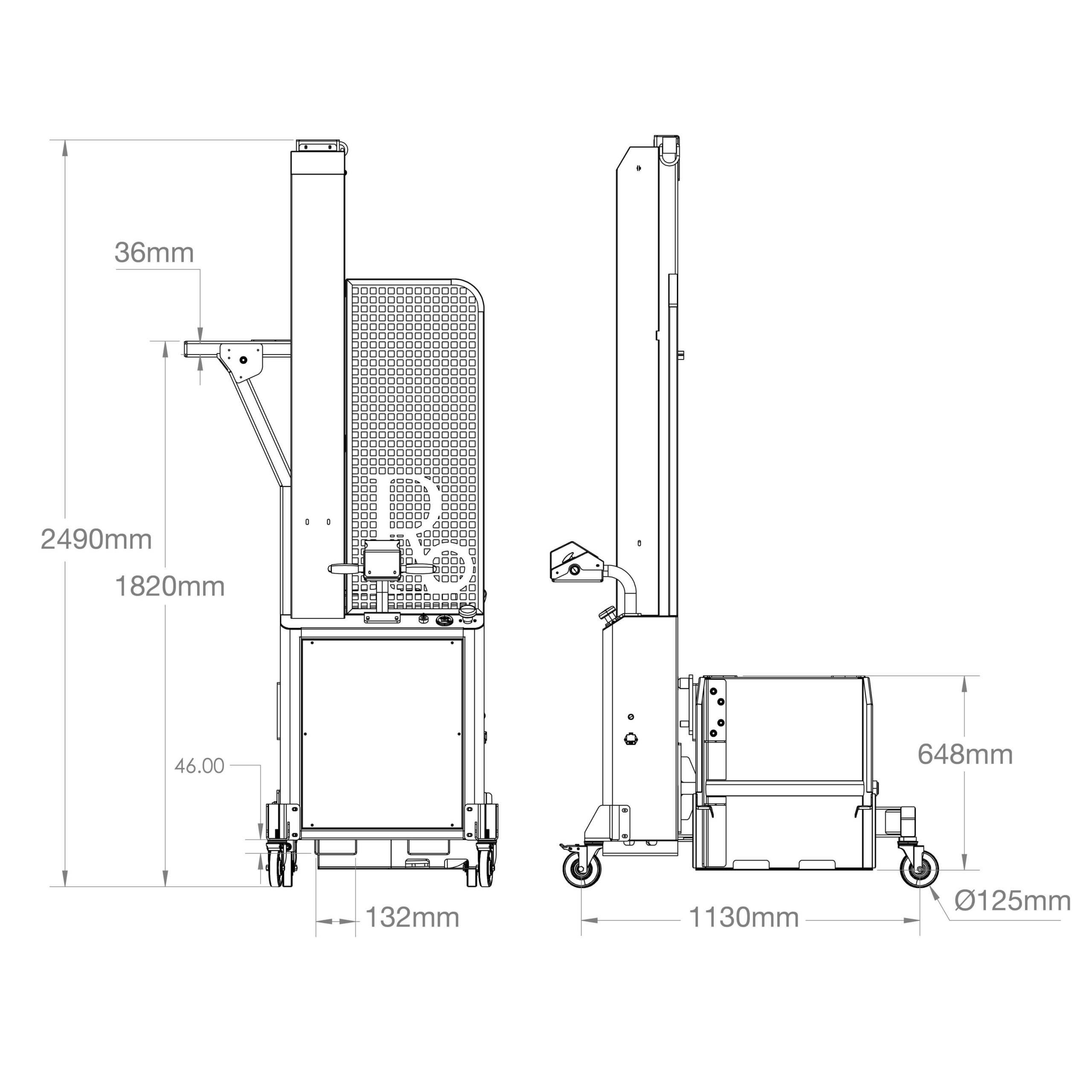

The bin tipper measures approximately 2490mm high when lowered and reaches an overall height of approximately 2700mm during the tipping cycle.

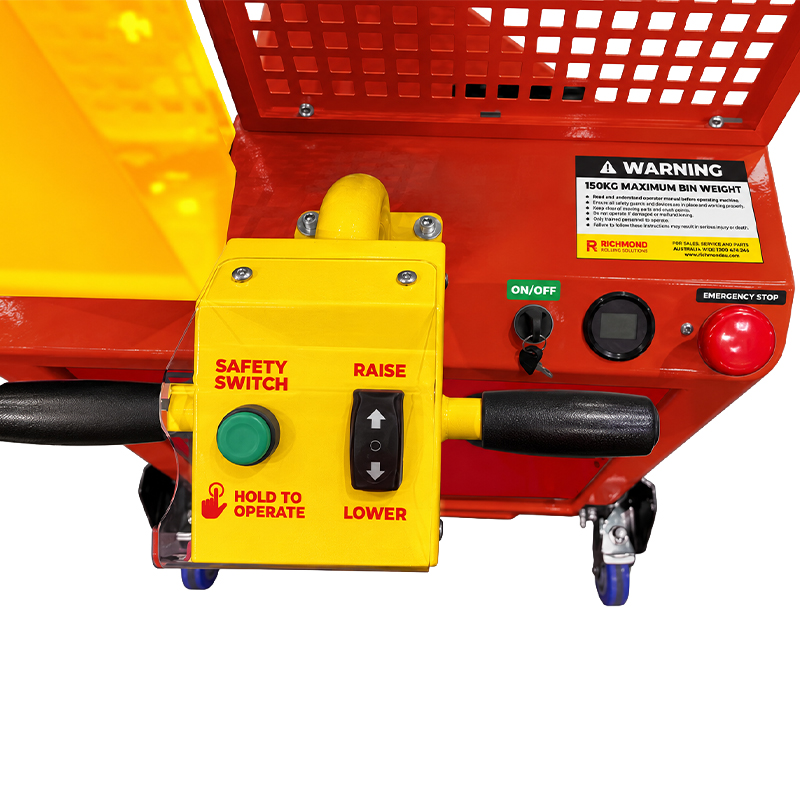

Safety features include an emergency stop, two-hand controls, overload protection, limit switches, an anti-slip brake and protective guarding/barrier.
Electric bin tippers are suited to workplaces that regularly transfer waste or materials from smaller wheelie bins into larger containers. Common applications include warehouses, factories, schools, recycling facilities, food production sites and commercial waste areas.
Load Capacity (kg)
150
Tipping Height (mm)
1600
Tipping Time (s)
7
Tipping Cycle Time (s)
13
Suits Bin Sizes (L)
80/120/140/240
Bin Adjustment Required
No
Battery Type
Gel Lead-Acid
Battery
2 x 12V 58Ah
Average Battery Runtime (h)
3-Jun
Charge Time (h)
8

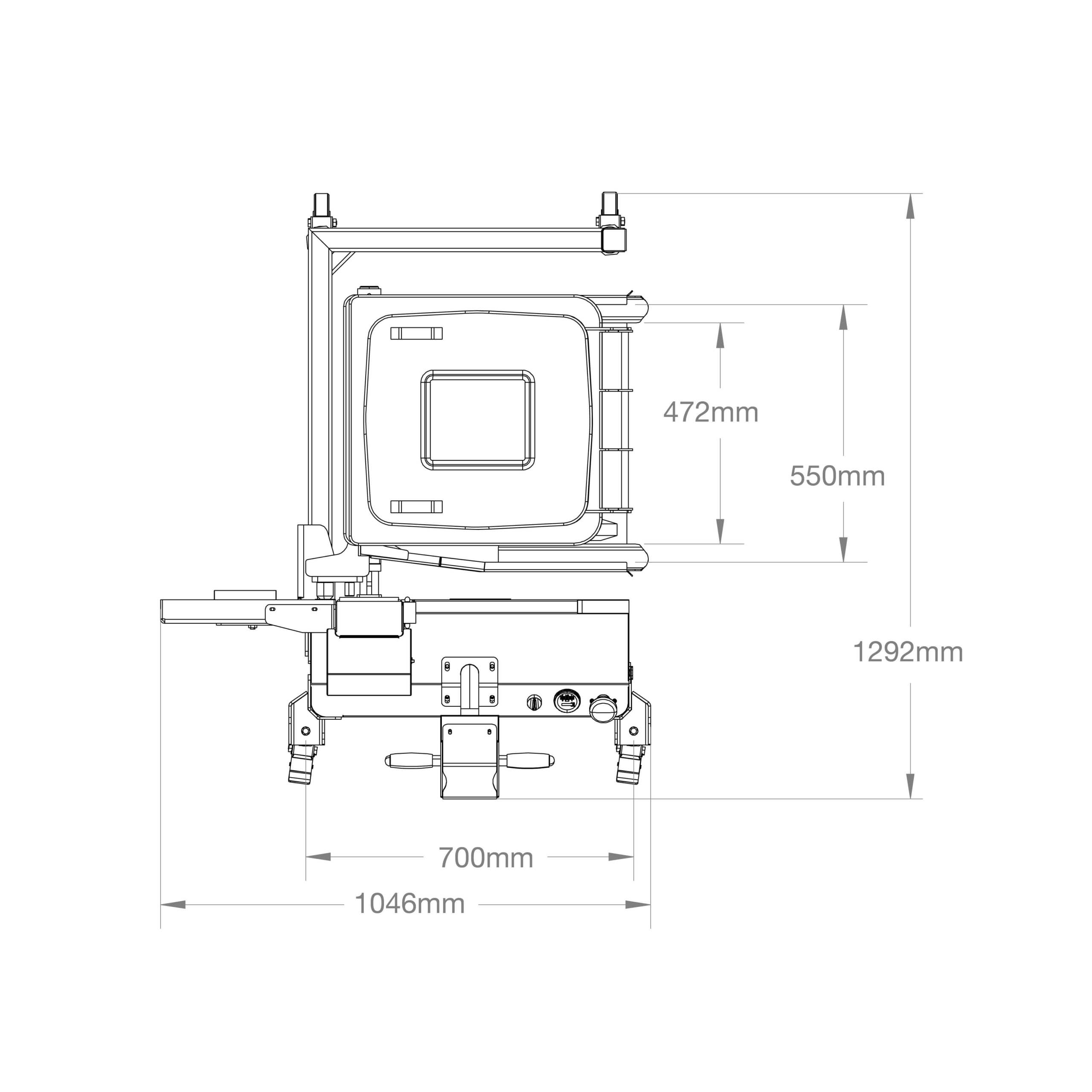

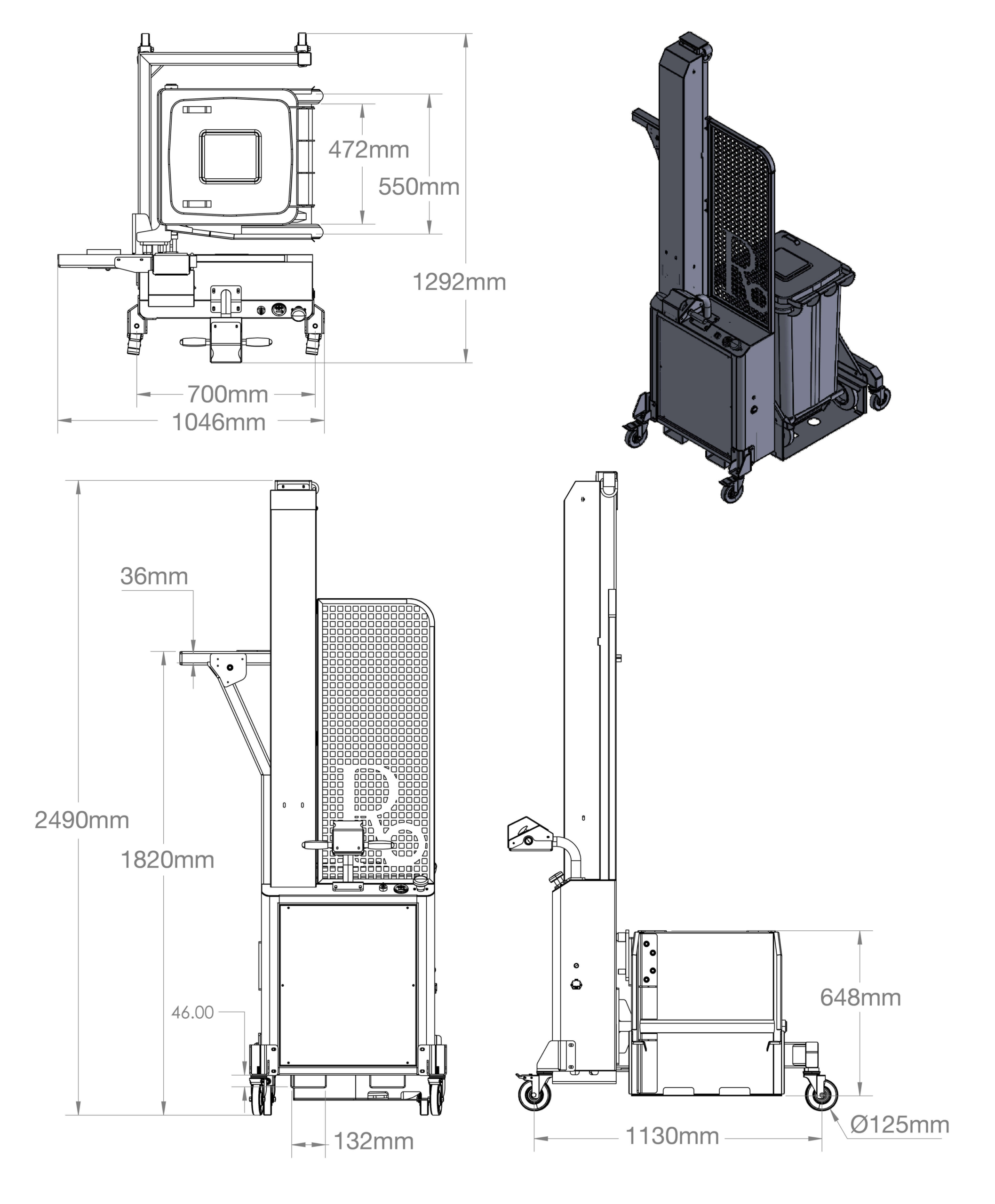

Overall Length (mm)
1125
Overall Width (mm)
1295
Overall Height (mm)
2490
Raised Height (mm)
2700
Raised Ground Clearance (mm)
1840
Weight (kg)
226
Wheel Diameter (mm)
125
Wheel Material
Non-Marking Rubber
Frame Construction
Powder Coated Steel
Bin Caddy Material
Galvanised Steel
Bin Caddy Height (mm)
645
Indoor/Outdoor Use
Yes
IP Rating
IP53
