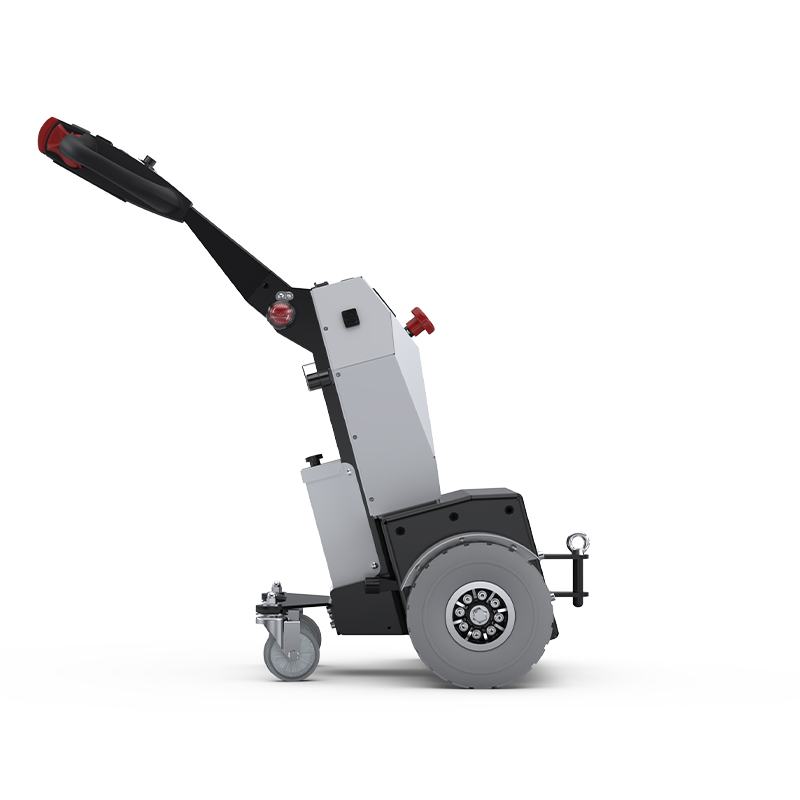

The TTR004 is a compact lithium battery powered electric tug designed for moving loads up to 1.2 tonnes, delivering controlled handling, variable speed operation, and a heavy duty steel chassis suited to warehouse and commercial environments.
1.2 tonne towing capacity: Suitable for moving loads across warehouses, facilities, and commercial sites
24V 800W DC motor: Delivers consistent, controlled power for smooth movement
Lithium-ion battery system: Supports opportunity charging for efficient day-to-day operation
Compact and manoeuvrable design: Easy to operate in tight spaces and confined areas
Multiple towing attachments included: Supplied with a hydraulic lift arm and clevis hitch mount, providing flexible connection options
Ergonomic hand control: Provides precise control with adjustable speed settings and dimple and responsive directional control
Variable speed operation: Adjustable travel speed from approximately 1 km/h to 5 km/h
Electromagnetic braking system: Ensures controlled stopping and improved safety
Solid rubber drive tyres: Durable non-marking grey rubber tyres suited to indoor and light outdoor use
Heavy-duty construction: Built for regular use in industrial and commercial environments
Complete setup kit: Supplied with a battery charger, power leads, fasteners and installation tools for straightforward setup and operation
Description
The TTR004 Lithium Battery Powered Electric Tug is designed for efficient movement of medium-weight wheeled loads in warehouses, facilities and commercial environments. Powered by a 24V 800W DC motor, it delivers consistent performance with a rated drawbar pull of 350N and a maximum traction capacity of up to 1200kg.
The TTR004 includes two attachments as standard: a hydraulic lift arm and a clevis hitch mount. These attachment options allow the tug to connect with and move a wider range of trolleys, carts, bins, small trailers and other wheeled equipment, providing greater flexibility across different material handling applications.
Its lithium-ion battery supports opportunity charging, allowing the unit to be topped up during breaks or periods of downtime without requiring a full discharge cycle. This helps maintain availability throughout the working day, particularly in operations where the tug is used frequently or intermittently.

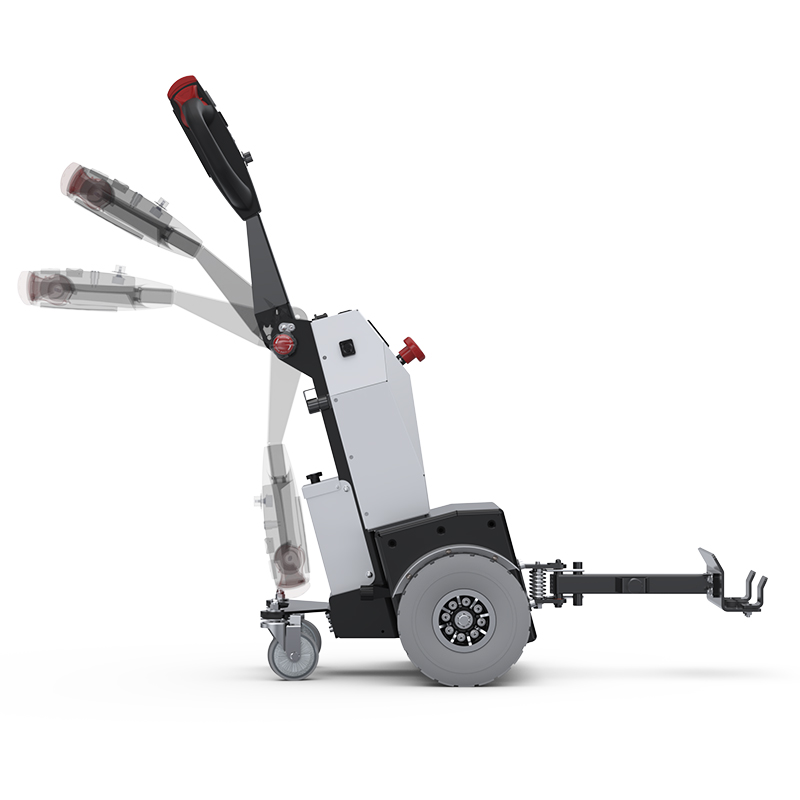

A compact footprint makes the TTR004 well suited to tight aisles, congested work areas and other spaces where larger material handling equipment may be impractical. The ergonomic handle provides straightforward operator control, with adjustable travel speeds from approximately 1 km/h to 5 km/h for controlled manoeuvring.
An electromagnetic braking system and responsive mechanical steering support predictable stopping and handling. Solid rubber tyres provide durable performance across common indoor surfaces including concrete, tile and sealed floors.
Suitable for logistics, maintenance, warehousing and general material handling, the TTR004 provides a practical powered solution for reducing the manual effort required to move wheeled loads around commercial and industrial facilities.
Product FAQs
The TTR004 is rated to tow loads up to 1200kg on flat, sealed surfaces.
Suitable for trolleys, carts, small trailers, bins, and other wheeled loads used in facilities and warehouses.
Yes. The compact design allows operation in confined areas and narrow aisles.
Yes. It uses a 24V 18-30Ah lithium-ion battery system designed for efficient operation and opportunity charging.
It is designed for indoor or outdoor use with its heavy-duty steel body and large non-marking pneumatic wheels suitable for both indoor or outdoor flooring such as concrete, tile, timber, brick or light gravel.
The TTR003 has an IP33 rating, making it suitable for outdoor use, offering suitable protection from light rain or spray-water.
The TTR004 electric tug is suitable for indoor use and light outdoor applications on firm, level surfaces such as concrete or paved areas.
Opportunity charging is a practical method of recharging lithium-ion batteries in short, frequent bursts during natural pauses in operation. Rather than waiting for the battery to fully discharge before performing a complete charge cycle, operators “top up” the battery whenever the equipment is idle such as during lunch breaks, shift changes, or between tasks.
This approach reduces downtime, keeps machines operational for longer, and supports continuous workflow in demanding environments. Lithium-ion batteries are ideal for opportunity charging as they handle partial charging well without compromising performance or lifespan.
TTR004 Electric Tug includes a hydraulic lift arm and clevis hitch mount, providing flexible connection options for a range of trolleys, carts, bins, small trailers and other compatible wheeled equipment. It also includes a battery charger, power leads, mounting hardware and installation tools required for setup and operation.
