Heavy-duty load skate kit for transporting large machinery up to 20 tonnes with directional control and load stability.
20 tonne capacity: Rated to handle large equipment and heavy static loads

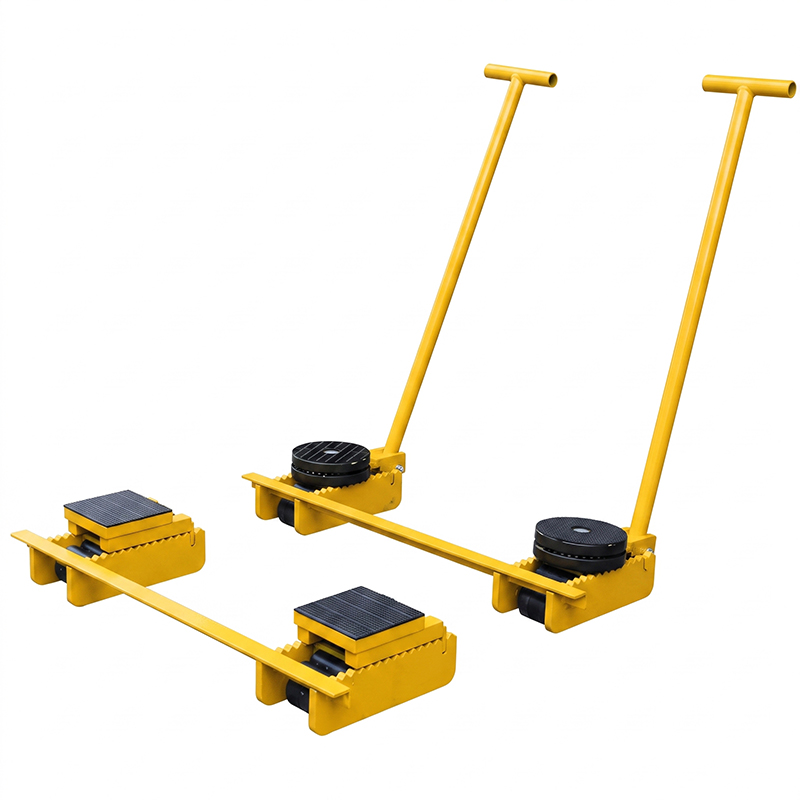

Four-piece system: Includes two steerable front skates and two fixed rear skates
Adjustable linking bars: Allows spacing to suit different load widths
Powder-coated steel construction: Built for repeated industrial use
Non-slip rubber decks: Help stabilise and secure the load during transport
Nylon wheels: Enable smooth travel across flat, hard surfaces
Description
Richmond’s 20 Tonne Load Skate Kit (LSR003-2) is built for safely transporting large machinery and equipment across smooth, hard surfaces. This four-piece system includes two front steerable skates and two fixed rear skates, connected by adjustable steel rods to suit various load widths. Each skate features a durable powder-coated frame, non-slip rubber surface and smooth-rolling nylon wheels for stability during movement.
Ideal for plant relocations, heavy equipment installations and maintenance projects, this kit ensures even load distribution and precise control. The steerable front section allows for guided directional movement, making it suitable for complex handling tasks in industrial environments.
Product FAQs

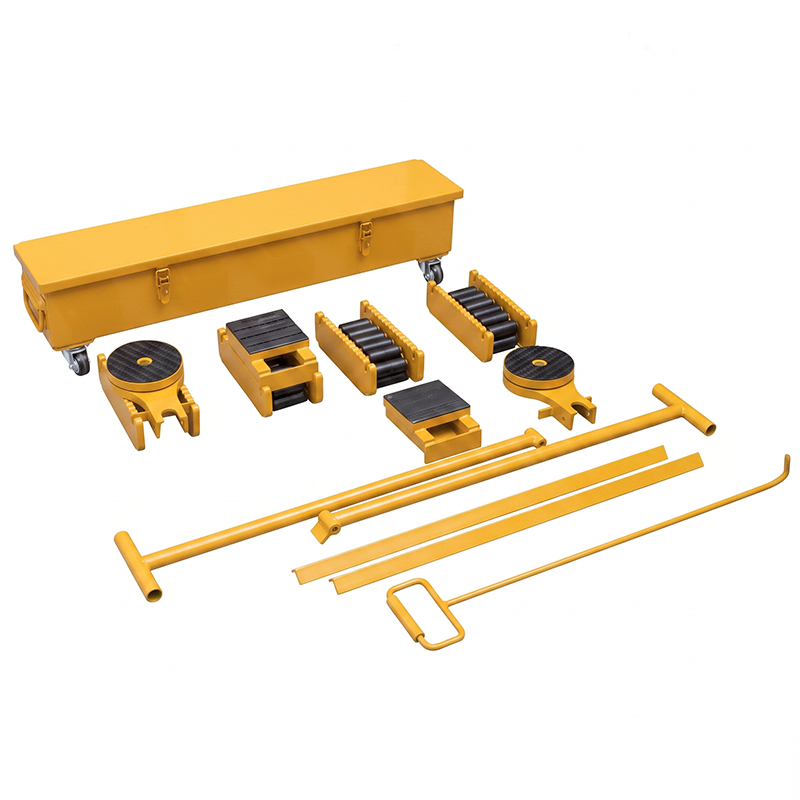

The LSR003 Load Skate Kit safely handles loads up to 20 tonnes (equivalent to 5 tonnes per pad)
4 skates
2 turntables
2 packing plates
2 steering handles
2 link-up bars
1 drawbar
A metal storage box with castors
Support length: 120 mm
Support width: 120 mm
Overall height: 108 mm
Roller diameter: 18 mm
Swivel top diameter: 130 mm

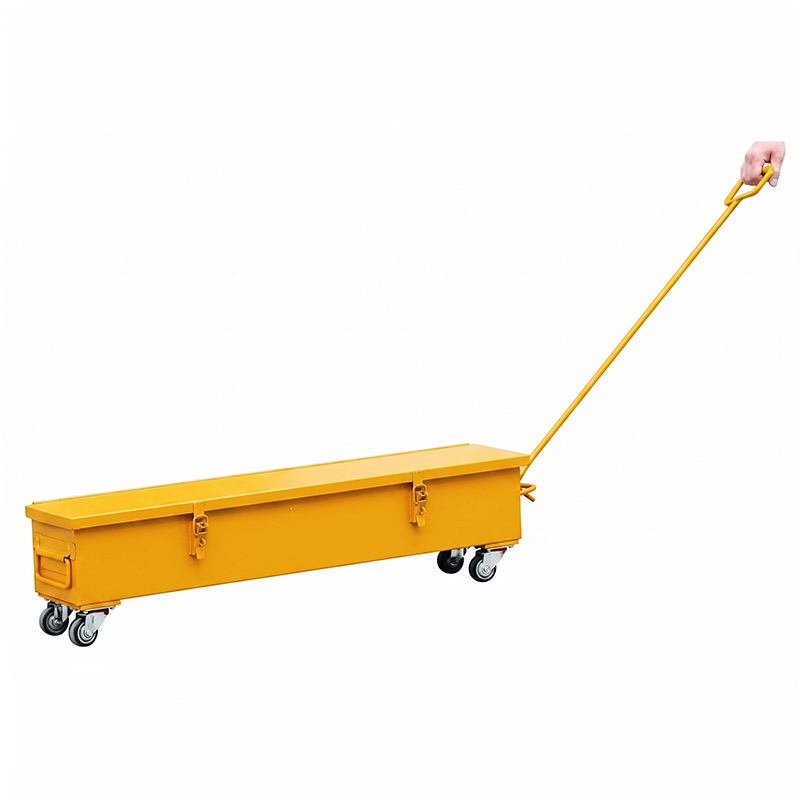

Yes, the kit comes enclosed in its own storage container on wheels, making it convenient to transport and store
The kit is designed for use indoor, flat, hard surfaces—especially sealed or polished concrete. It is not intended for sloped, rough, or outdoor terrain.
It provides precise steering control, which allows for safer and more accurate maneuvering of large machinery or heavy items.
Product Code
LSR003
Safe Working Load (tonnes)
20
Support Length (mm)
120
Support Width (mm)
120
Overall Height (mm)
108
Roller Diameter (mm)
18
Swivel Top (mm)
130
