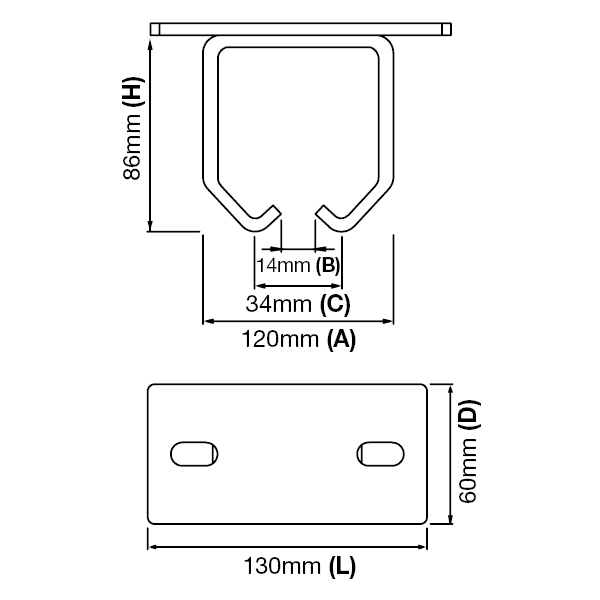

A: 120mm
B: 14mm
C: 34mm
D: 60mm
H: 86mm
L: 130mm
Suits GTR150 (2.9m) and GTR072 (5.8m) channels.

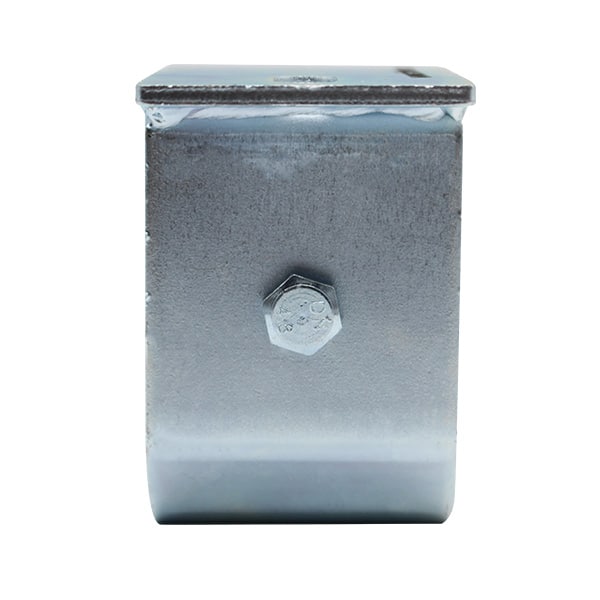

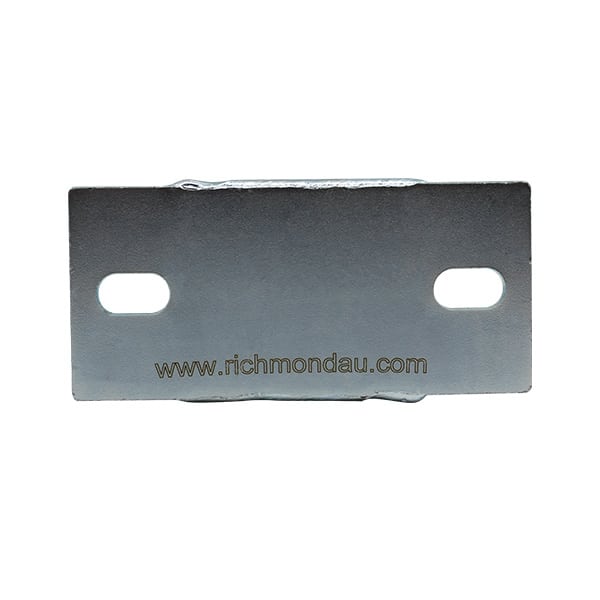

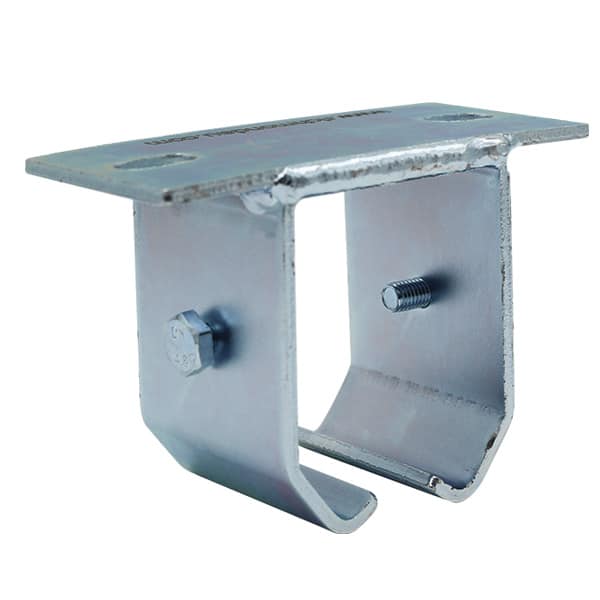

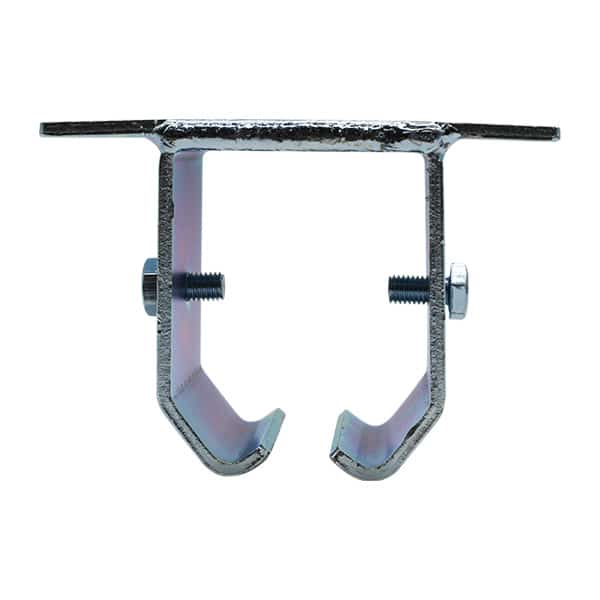

This Roof mount bracket has a capacity of 350kg per bracket. A minimum of 3 brackets will be required per length of hanging channel.
Click here to see an overview of all the hanging gate/door hardware that we supply

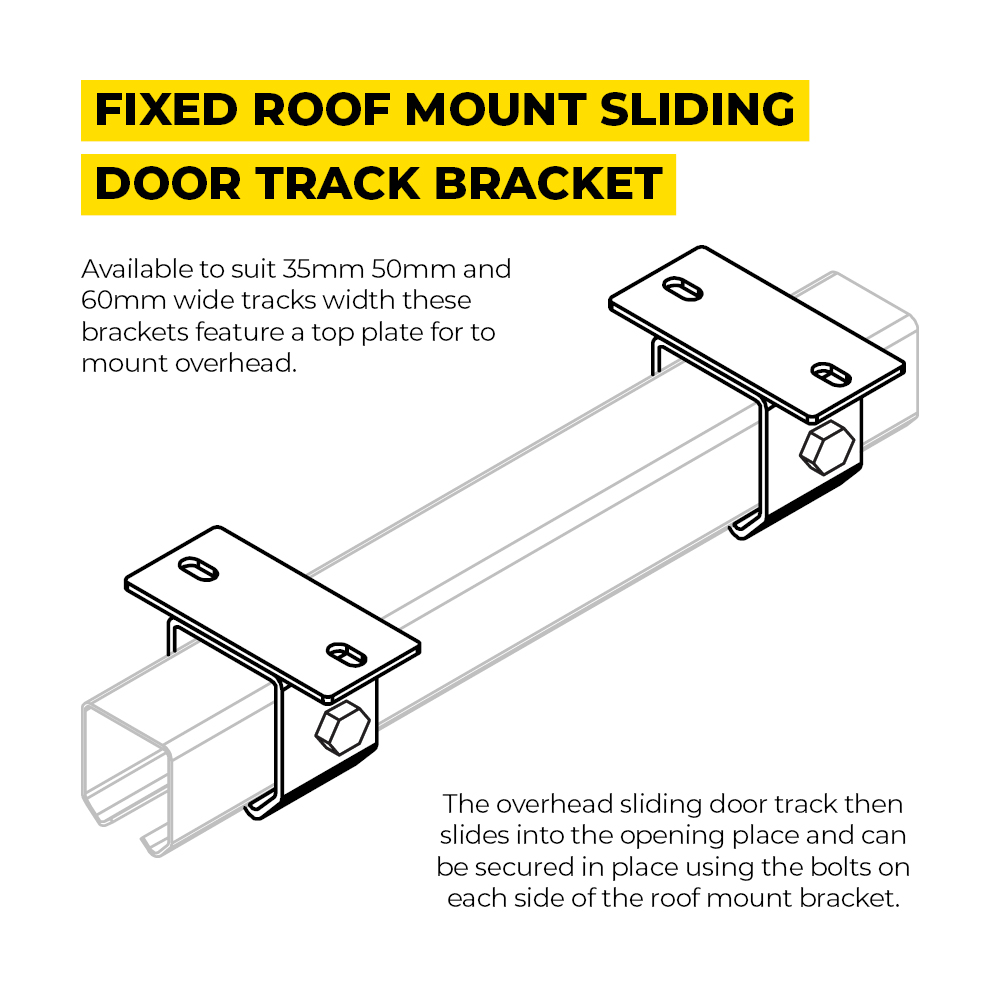

Available to suit each channel width these brackets attach flat to your roof and hold the hanging roller channel in place.
Richmond’s range of hanging rollers are widely used for applications such as factory doors, garage doors, heavy duty commercial sliding doors, hanging gate solutions, space dividers, or large doors. Our hanging door equipment can also be used as rollers for truck doors.
