78mm C-groove sliding gate wheel with a 250kg capacity and central bolt mounting.
- Compatible or custom frames: The loose wheel can be fitted into a compatible existing frame or a custom-made frame, provided the mounting arrangement and clearances suit the wheel.
- Sliding gate use: Supports the gate as the wheel rolls along a matching rounded track during opening and closing.
- Central bolt mounting: Supplied with an M14 x 2.0 bolt (70mm long), nut and two top hat reducers for fitting the wheel into a compatible mounting arrangement.
- Two precision ball bearings: Two precision ball bearings support smooth wheel rotation as the gate opens and closes.
- Rounded C-groove: The 20.5mm groove profile runs on Richmond GTR091, GTR010 and GTR046 gate tracks to guide the wheel along its running surface.
- Installation fit: Check the 78mm outside diameter, 23mm wheel width and 61mm groove-root diameter against the gate’s mounting arrangement when fitting the wheel.
Description

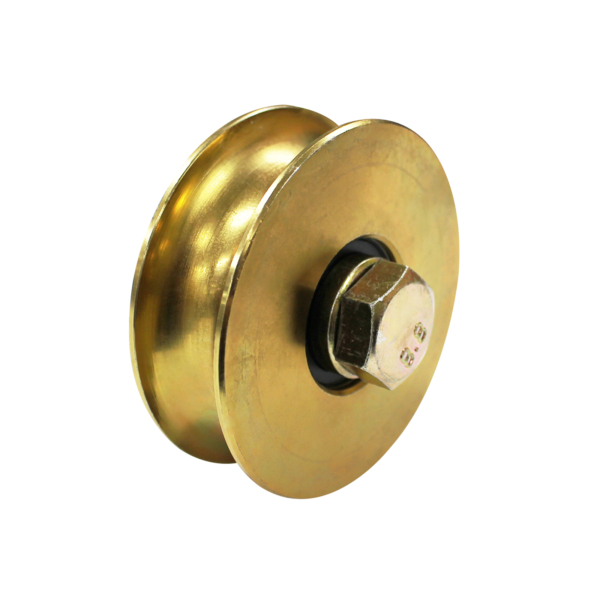

The Richmond GTR006 is a 78mm C-groove track wheel for sliding gates. It has a 250kg product capacity and mounts on a central bolt within the gate’s wheel mounting arrangement. Its axle diameter is 14mm. The loose wheel can be fitted into a compatible existing frame or a custom-made frame, provided the mounting arrangement and clearances suit the wheel.
The C-groove follows the rounded running surface of Richmond GTR091, GTR010 and GTR046 gate tracks. Its 20.5mm groove-profile diameter is dimension C on the drawing. Two precision ball bearings support smooth wheel rotation. The central bolt provides the mounting point while allowing the wheel to turn as the gate opens and closes.
The wheel width B is 23mm and its groove-root diameter D is 61mm. The dimensional drawing also shows E at 33mm and F at 1–10mm for checking the wheel’s fit within the mounting arrangement.
Supplied with an M14 x 2.0 bolt (70mm long), nut and two top hat reducers, the wheel includes the hardware needed for its central bolt mounting.
