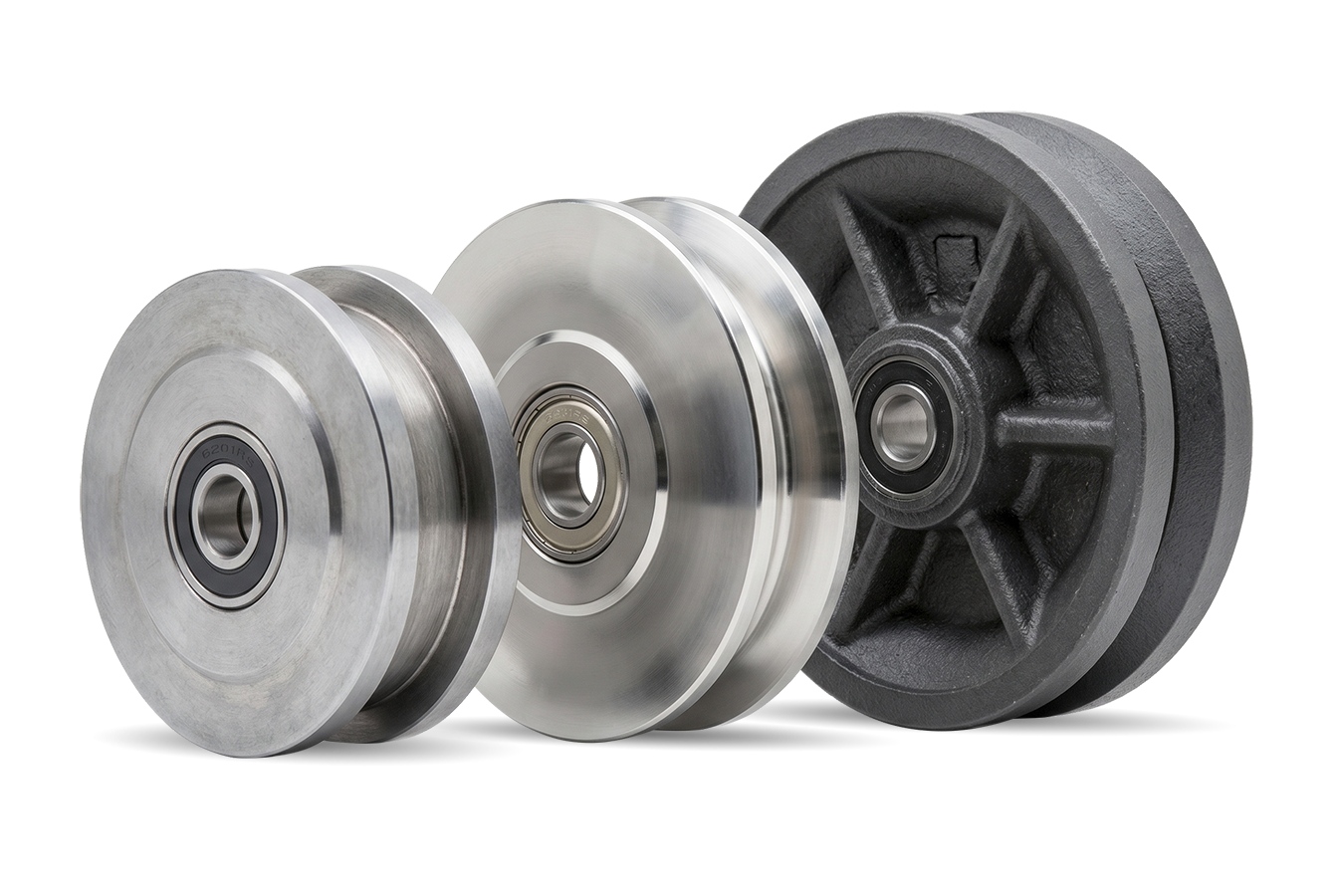

Single Flange & Double Flange Track Wheels
Richmond supplies a wide range of Single Flange Track Wheels and Double Flange Track Wheels for equipment that must move repeatedly along a fixed track or rail. These wheels are used in industrial machinery, material handling systems, sliding structures and custom engineering applications where controlled movement and accurate guidance are required.
Track Wheels can be matched to common steel track profiles including rectangular hollow section, square hollow section, angle, parallel flange channel, round bar and light rail. Richmond also supplies specialised groove wheels, beam trolley wheels and sliding gate wheels for different guidance systems and operating conditions.
Browse Richmond’s wider range of Wheels, including Single Flange Track Wheels, Double Flange Track Wheels and other rail-guided wheel options.
Track Wheels for Fixed Rail Applications
Track Wheels are designed to follow a defined path rather than roll freely across a floor. The flange or groove profile keeps the wheel aligned with the rail, allowing machinery, gates, trolleys and suspended equipment to move consistently between fixed positions.
Most industrial tracks are manufactured from mild steel because it provides strength, dimensional stability and a durable running surface. Track Wheels are also commonly made from steel to provide low rolling resistance and dependable load support. In high-use or heavy-duty applications, hardened wheels or hardened track surfaces may be specified to reduce wear.
The correct wheel depends on the rail profile, load, travel distance, operating frequency, mounting arrangement and environmental conditions. Wheel diameter, flange configuration, bearing type and tread material should be matched to the application to prevent derailment, uneven loading and premature wear.
Product Types by Application

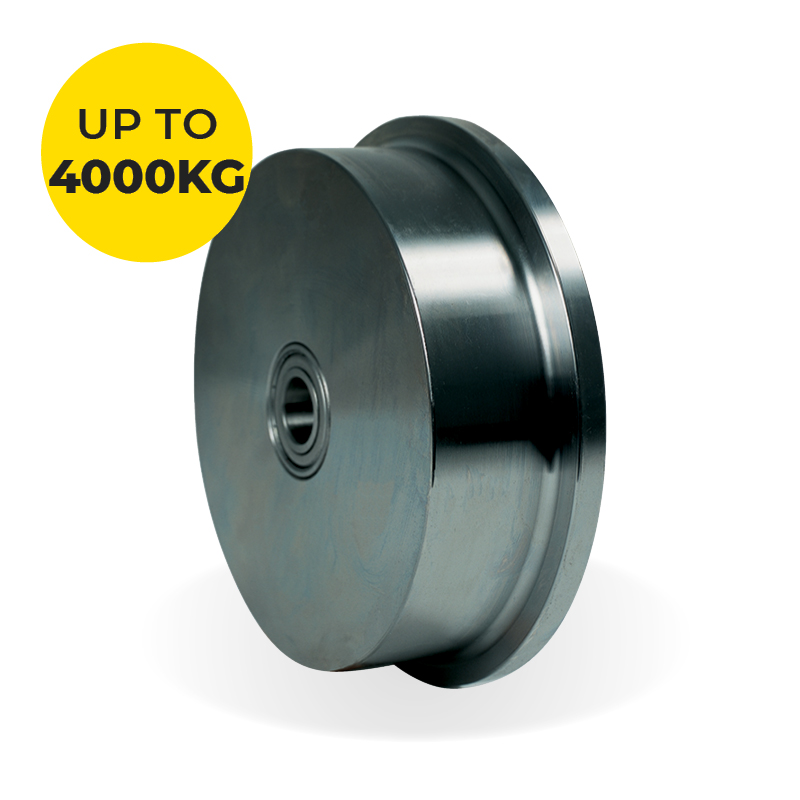

Single Flange Track Wheels
Single Flange Track Wheels feature one raised flange that guides the wheel along one side of a rail, beam or track section.
They are commonly used in paired assemblies where the opposite wheel allows for minor track variation or thermal movement. Typical applications include industrial trolleys, rail-guided machinery, transfer systems and custom material handling equipment.

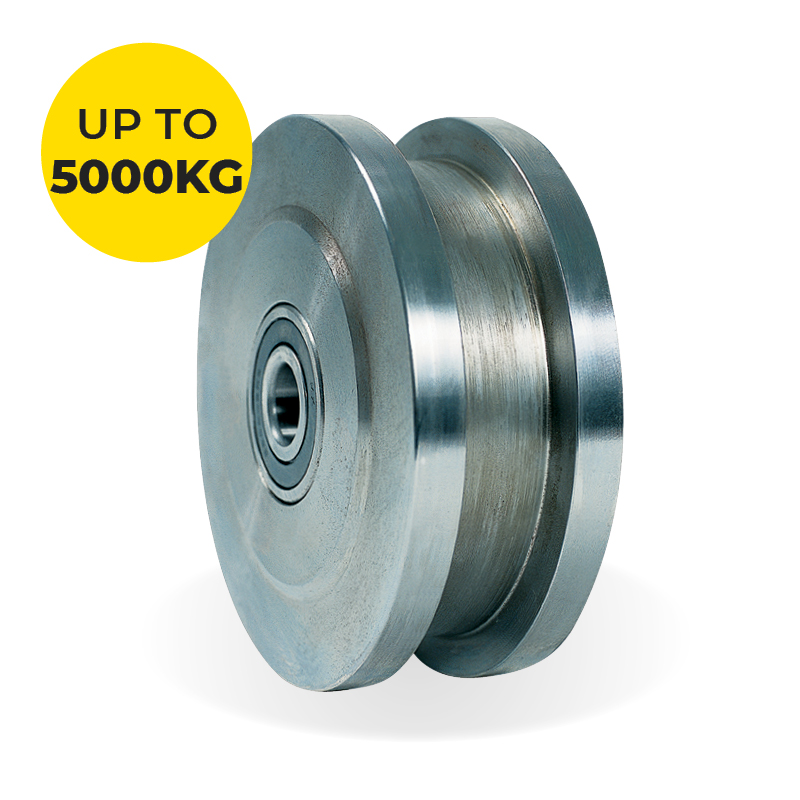

Double Flange Track Wheels
Double Flange Track Wheels have a flange on both sides of the running surface, helping keep the wheel centred on a narrow rail.
They are suited to applications requiring positive guidance and controlled alignment, including factory equipment, transfer carts, kiln cars and machinery that travels along a fixed steel track.

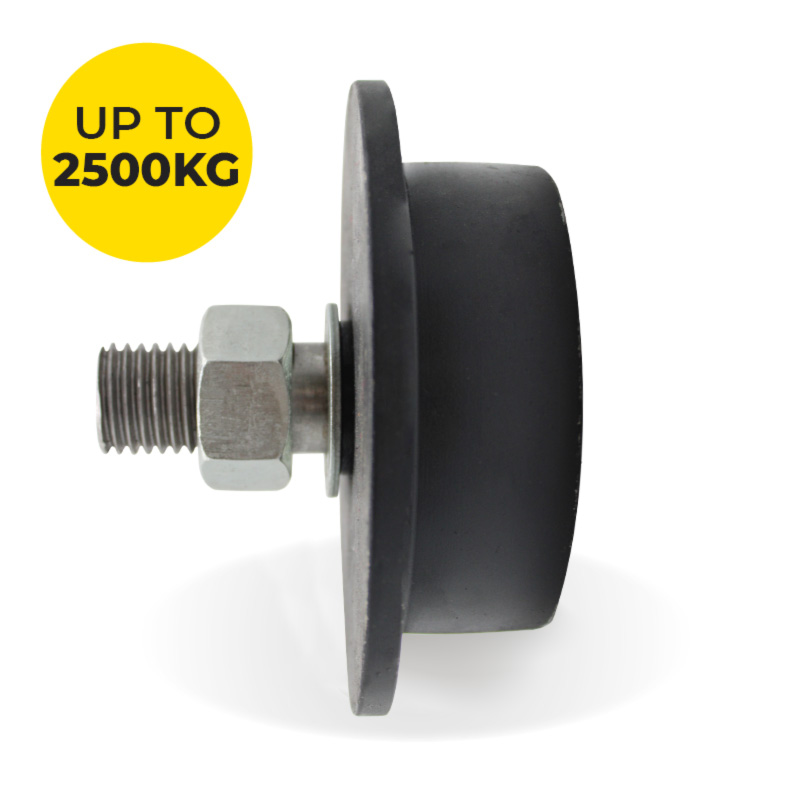

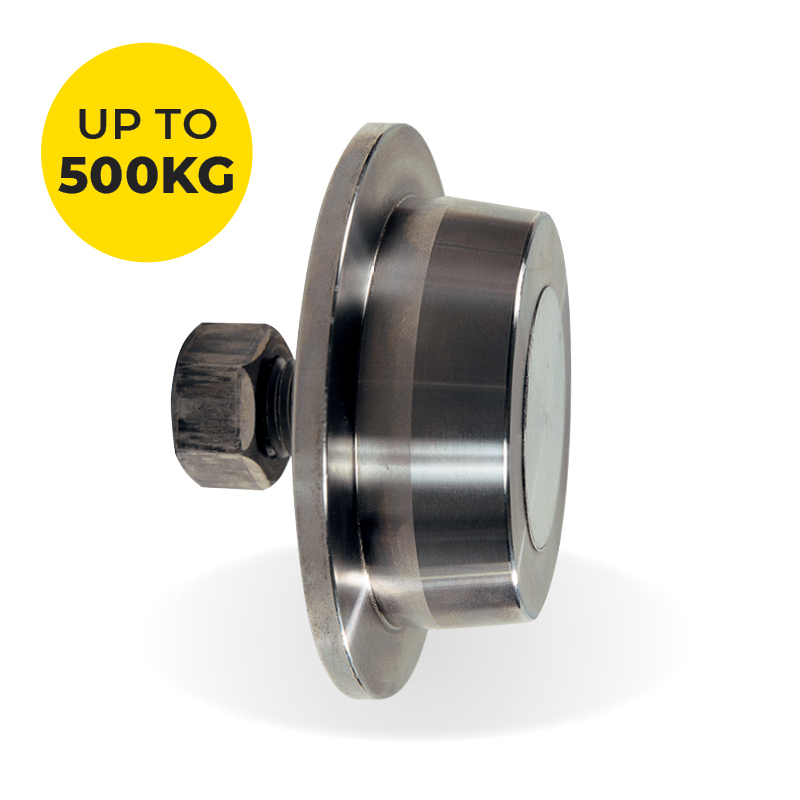

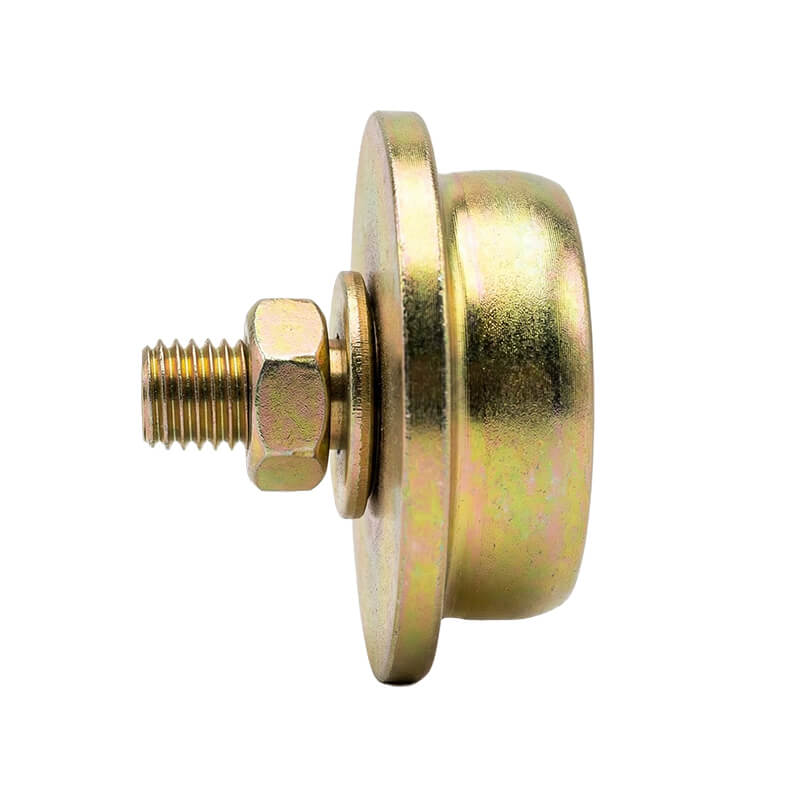

Beam Trolley Track Wheels
Beam Trolley Track Wheels are designed to run on standard beam and channel sections used in overhead handling systems.
They are commonly fitted to hoist trolleys, girder trolleys and suspended equipment where loads must move along parallel or tapered beam flanges.
C Groove Track Wheels
C Groove Track Wheels use a curved tread profile that runs on round bar or similarly shaped rail.
The curved groove helps locate the wheel on the track while allowing smooth movement in light industrial equipment, gates and purpose-built machinery.

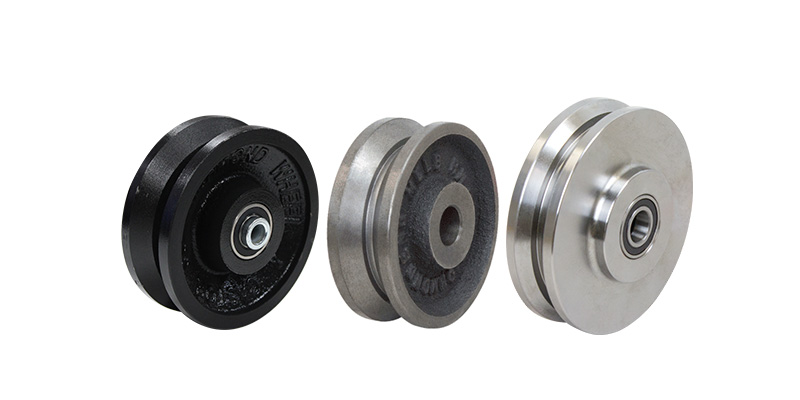

V Groove Track Wheels
V Groove Track Wheels run on angle iron, inverted angle or purpose-made V-shaped tracks.
The V profile provides positive guidance and can help push light debris away from the running line, making these wheels suitable for sliding gates, factory equipment and industrial transfer systems.

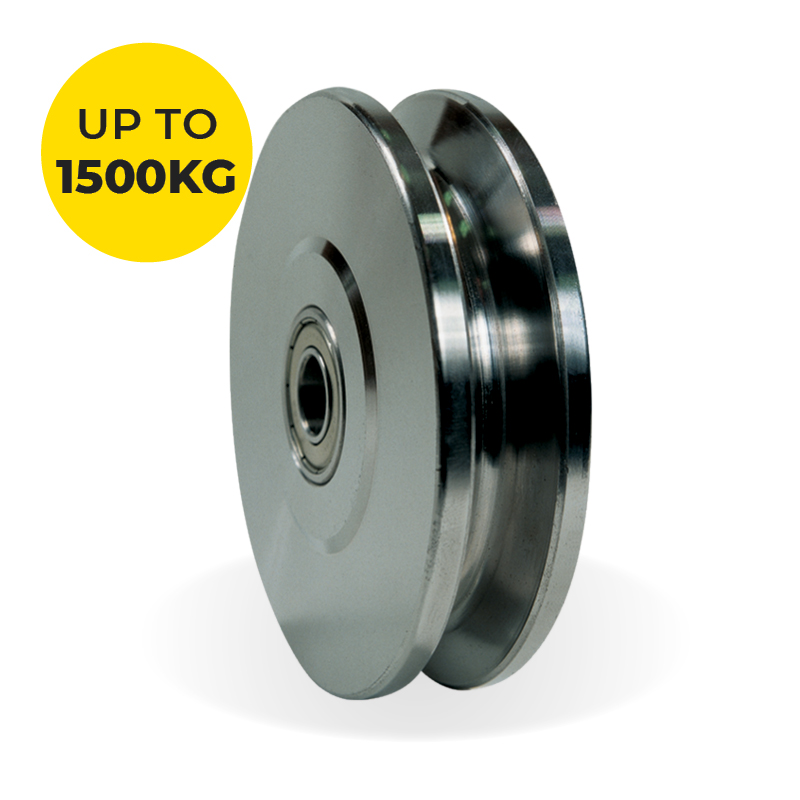

Rope Groove Wheels
Rope Groove Wheels feature a profiled groove designed to guide wire rope, cable or similar flexible materials.
They are used in lifting, tensioning, redirection and mechanical handling systems where the groove must support and retain the rope during movement.
Sliding Gate Track Wheels
Sliding Gate Track Wheels are manufactured for residential, commercial and industrial gate systems operating on ground-mounted tracks.
They provide stable guidance and low rolling resistance, helping large gates move smoothly while supporting the gate load across the track.
Key Track Wheel Selection Features
Flange Configuration
Single flange wheels guide from one side, while double flange wheels provide guidance from both sides of the rail. Groove wheels locate the track within a shaped tread profile.
Selecting the correct configuration is important because it determines how the wheel follows the rail and accommodates track alignment, movement and installation tolerances.
Track Profile Compatibility
Track Wheels may run on rectangular hollow section, square hollow section, angle, parallel flange channel, round bar or light rail.
The tread and flange profile must match the rail closely enough to maintain guidance without creating binding, excessive friction or contact with unsuitable parts of the wheel.
Load Capacity
Wheel diameter, tread width, axle size, bearing selection and mounting method all influence the load that a Track Wheel can support.
Loads should be calculated across the complete wheel assembly, including any uneven distribution caused by track joints, frame movement or cantilevered equipment.
Steel Construction
Mild steel is widely used for Track Wheels because it offers high strength, durability and relatively low rolling resistance on steel rail.
Steel wheels are well suited to industrial applications where repetitive movement, concentrated loads and long service life are important.
Hardened Running Surfaces
High-use systems can create wear on both the wheel tread and track, particularly where loads are heavy or travel distances are long.
Hardened wheels, hardened tracks or both may be specified to improve wear resistance and extend service intervals in demanding applications.
Bearing & Axle Selection
Bearings affect rolling resistance, operating speed and maintenance requirements, while axle design determines how the wheel connects to the equipment frame.
Correct bearing and axle selection helps distribute the load, maintain alignment and support smooth operation over the intended service life.
Applications by Industry
- Manufacturing: Single Flange and Double Flange Track Wheels for transfer carts, machinery and production equipment.
- Warehousing & Logistics: Rail-guided wheels for material handling trolleys, mobile racks and transfer systems.
- Overhead Handling: Beam Trolley Track Wheels for hoists, girder trolleys and suspended equipment.
- Gate Manufacturing: V Groove and Sliding Gate Track Wheels for residential, commercial and industrial gates.
- Heavy Industry: Hardened Track Wheels for repetitive high-load travel across steel rail systems.
- Custom Machinery: Single flange, double flange and groove wheels manufactured to suit specialised track profiles.
- Lifting Equipment: Rope Groove Wheels for guiding wire rope and cable through mechanical handling systems.
Industrial Track Wheel Solutions Across Australia
Richmond is a leading supplier of Single Flange Track Wheels, Double Flange Track Wheels and specialised rail-guided Wheels for Australian industry. Our range supports standard steel track profiles as well as beam, groove, rope and sliding gate applications.
Backed by over 65 years of experience and in-house engineering, Richmond can assist with wheel profile selection, load requirements, mounting arrangements and operating conditions. Custom Track Wheels can also be designed and manufactured for non-standard rail sections and specialised equipment.
