50mm Wide Hanging Roller Channel 2.9m (GTR149)
A range of Hanging Gate Channels to are available to suit our range of Hanging Gate 2 Wheel Roller Sets, Hanging Gate 4 Wheel Roller Sets, and Hanging Channel Brackets (both roof and wall mount).

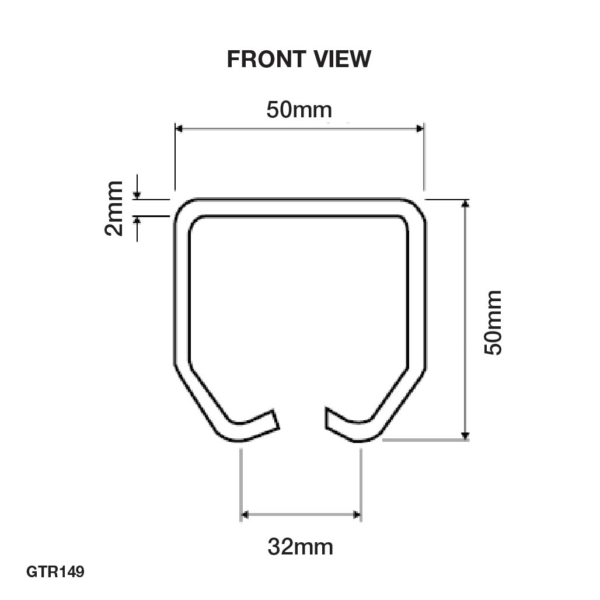

This hanging channel has a length of 2.8m, and has a channel width of 50mm.
This channel is suitable for doors up to 380kg(max) with a minimum of 3 Hanging Channel Brackets for support(per length of channel). The brackets should be no more than 966mm apart.
A 5.8m long channel is also available in this size, See GTR040 for more information. For longer installations, two lengths of track can be joined together using a Hanging Joint Support Bracket. Bracket to suit channel: GTR152
Richmond’s range of hanging rollers are widely used for applications such as factory doors, garage doors, heavy duty commercial sliding doors, hanging gate solutions, space dividers, or large doors. Our hanging door equipment can also be used as horizontal truck door rollers. The hanging channel & rollers sit up high and out of the way of loading zones platform of the truck, allowing for goods to be loaded and unloaded without obstruction.
