Built for simplicity and reliability, the FSR100 includes key features that support safe manual lifting, transport, and storage. Its lightweight design, folding components, and no-power operation make it practical across a wide range of worksites.
180 kg lifting capacity: Handles moderate loads for general industrial use
Lifts up to 2,500 mm: Reach for shelving, benches, or vehicle loading
Aluminium frame: Strong, corrosion-resistant, and lightweight

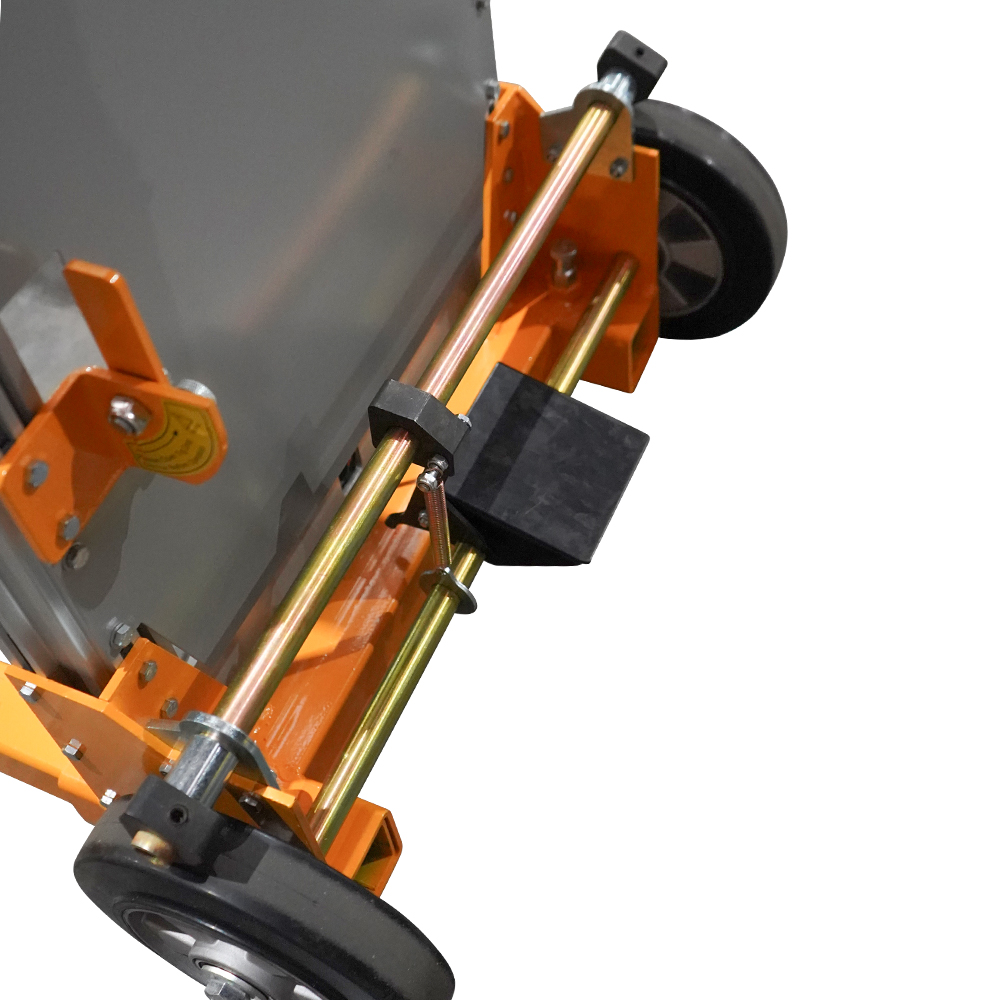

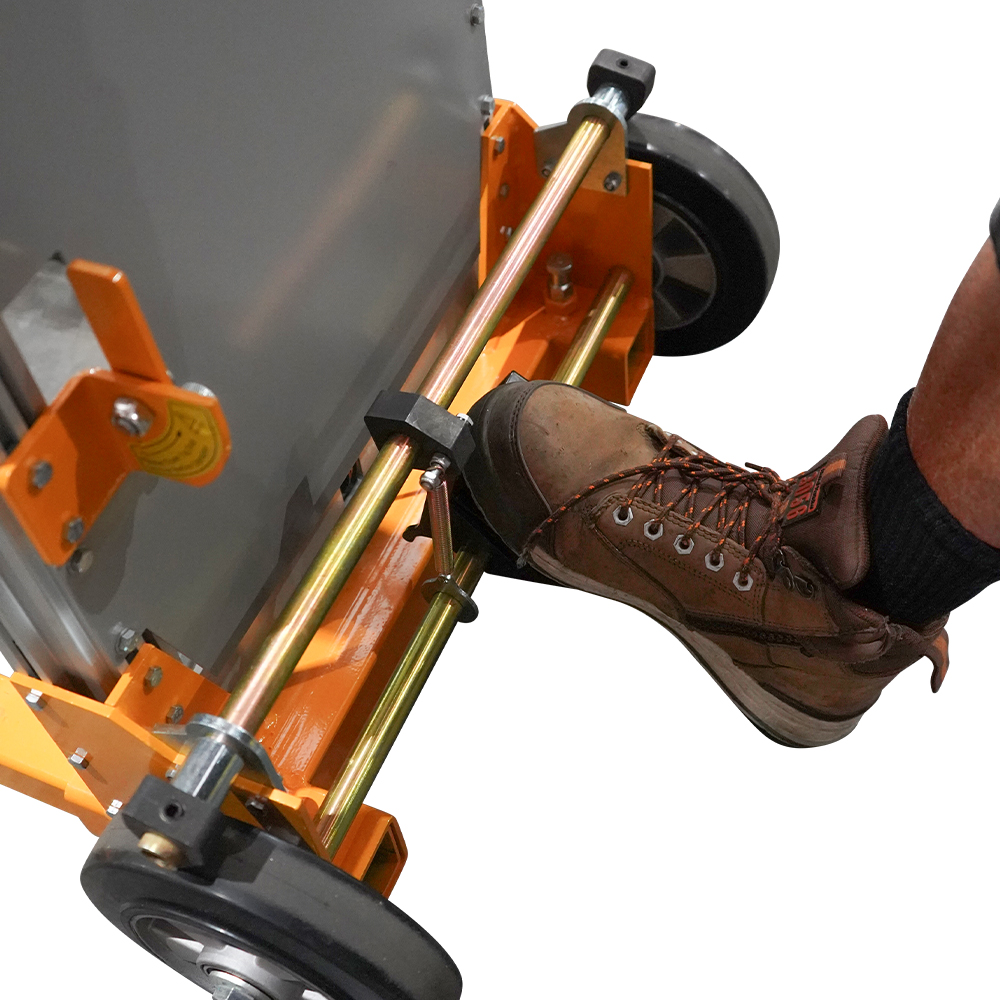

Rear foot brake: Keeps unit stable during loading and unloading

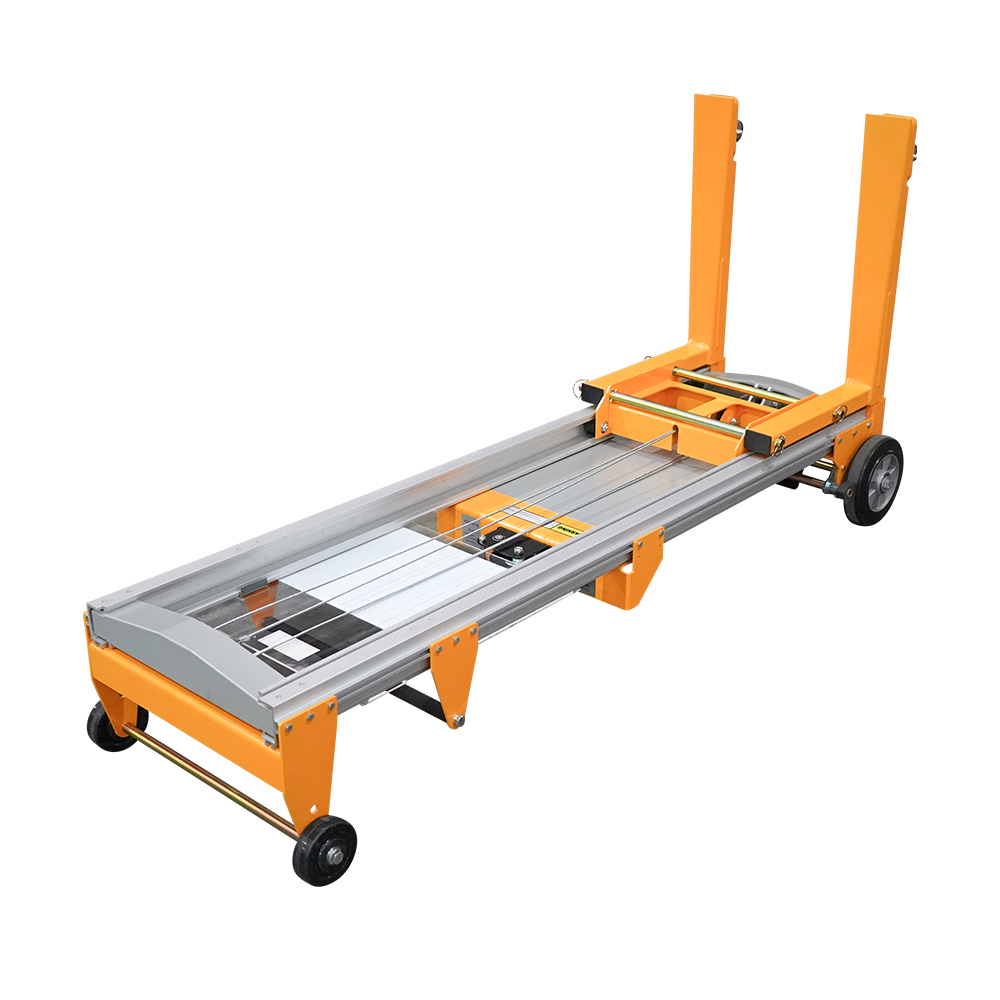

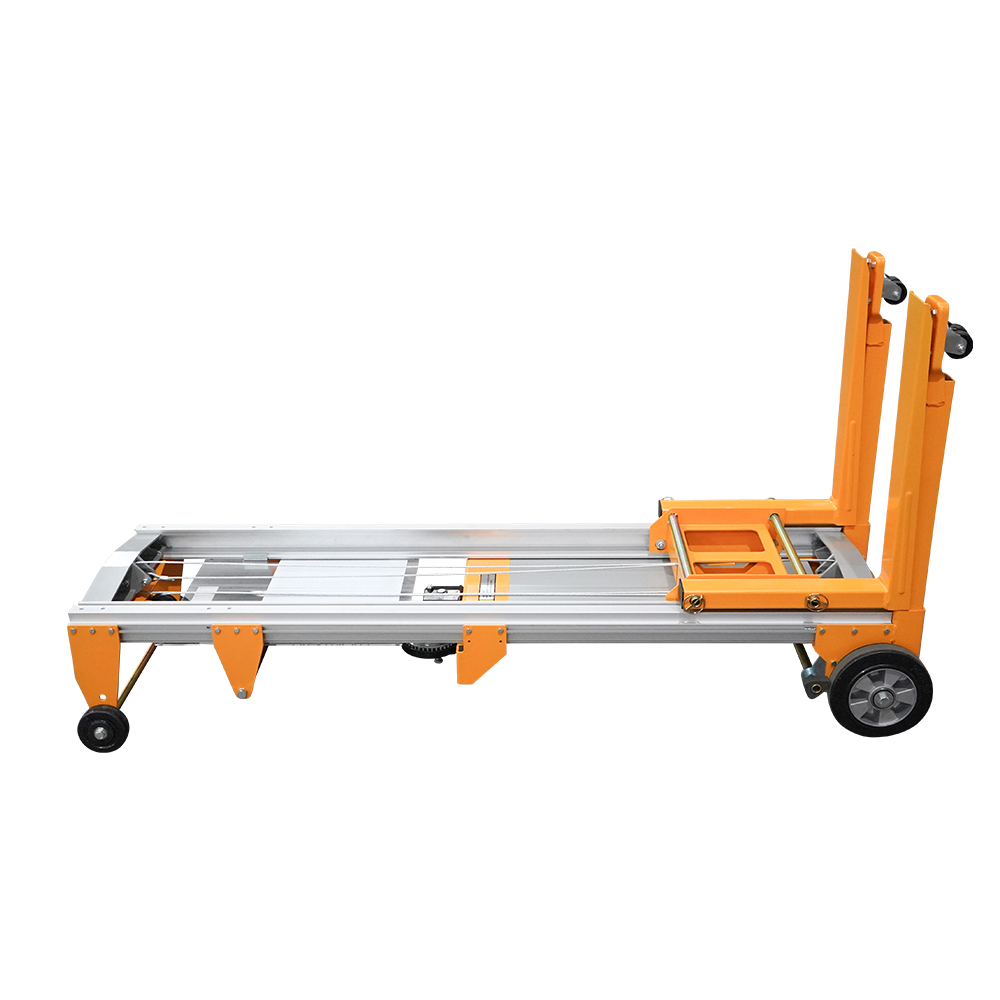

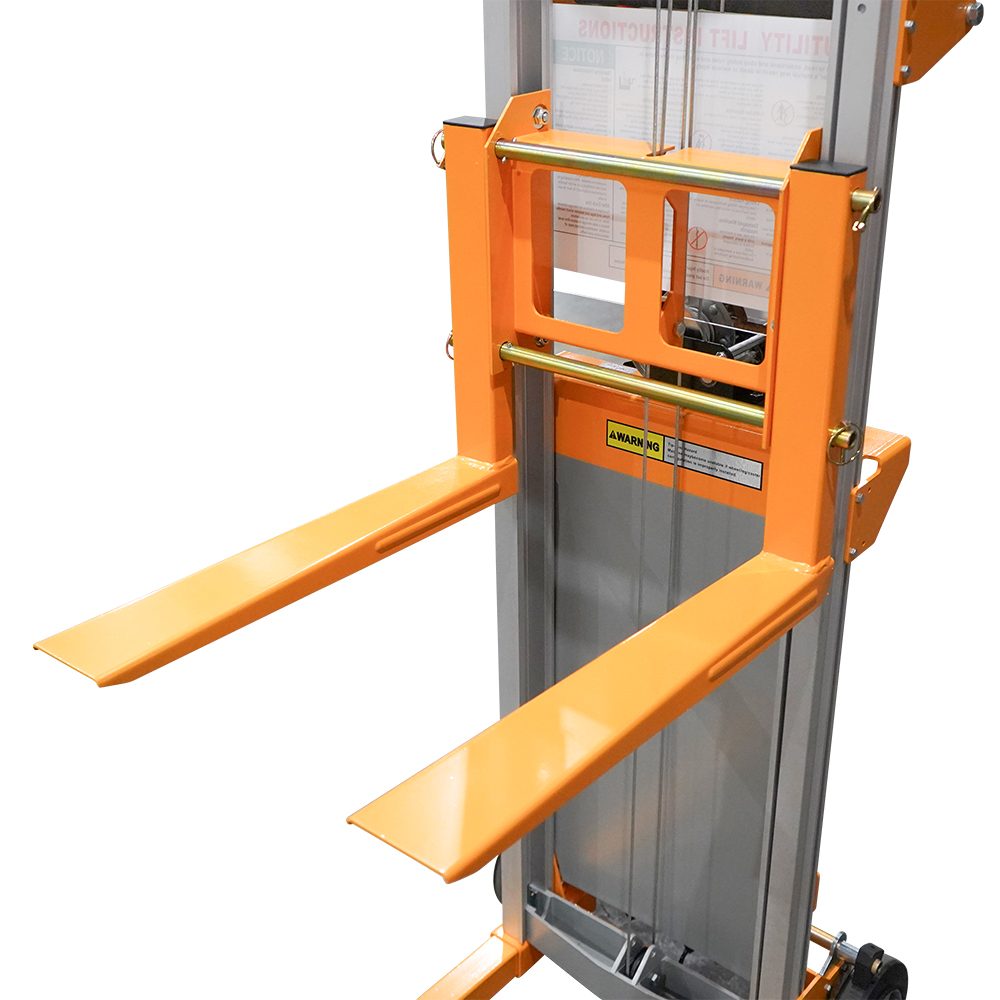

Foldable forks: Reduces storage footprint and improves portability
Adjustable fork width: Suitable for various load sizes and pallet types
Rear wheels and castors: Smooth rolling on flat surfaces, tight turning radius
Compact build: Fits through standard internal doors with mast lowered

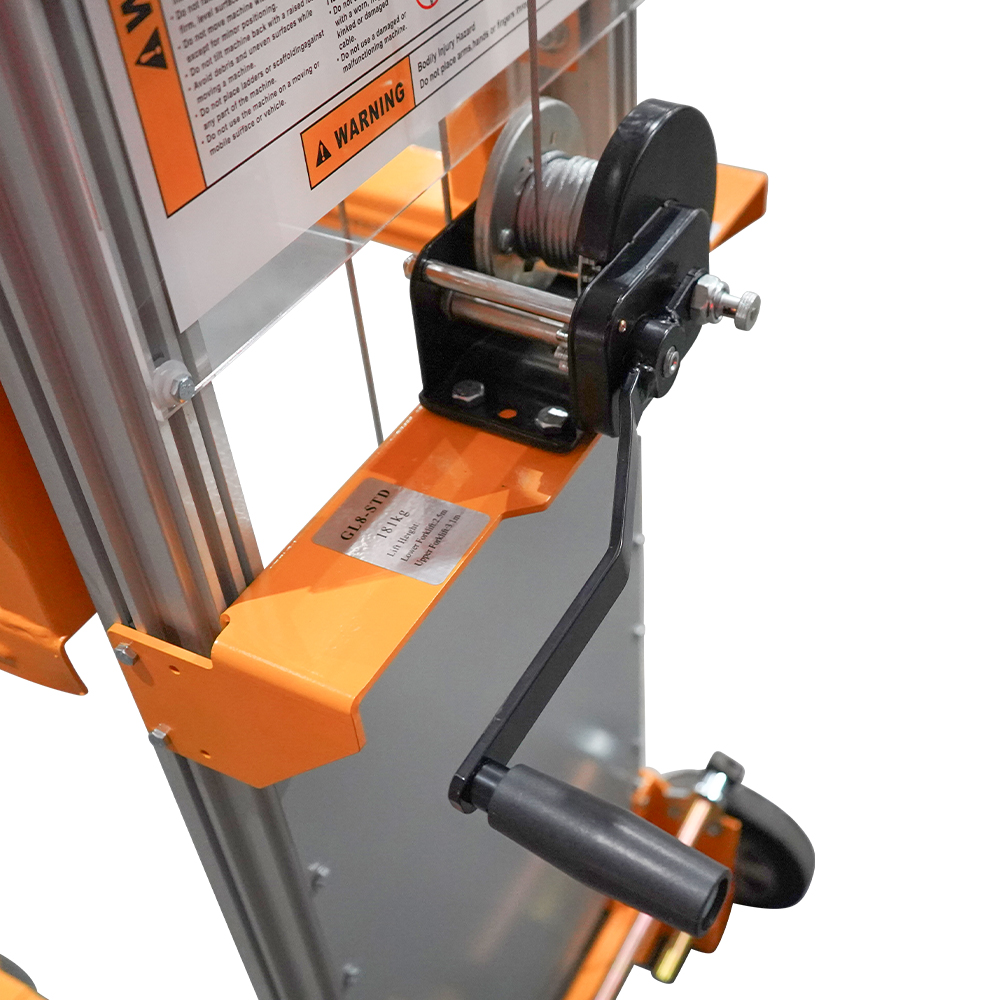

Manual hand winch: Simple, controlled lifting with no external power
One-year warranty: 12-month coverage for manufacturing faults
Description

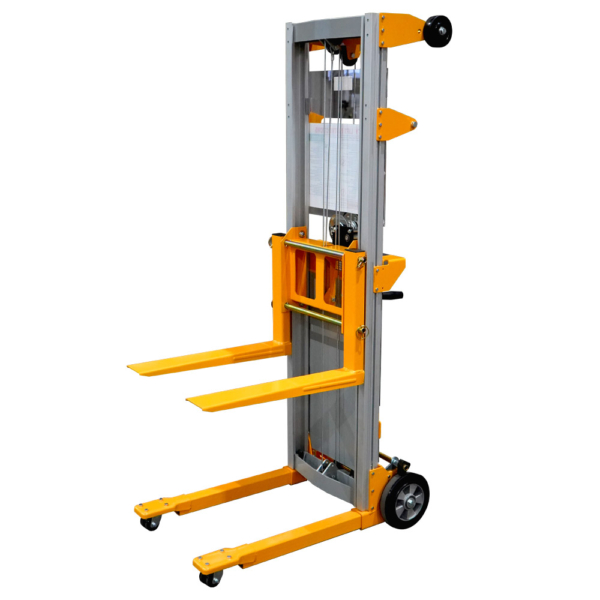

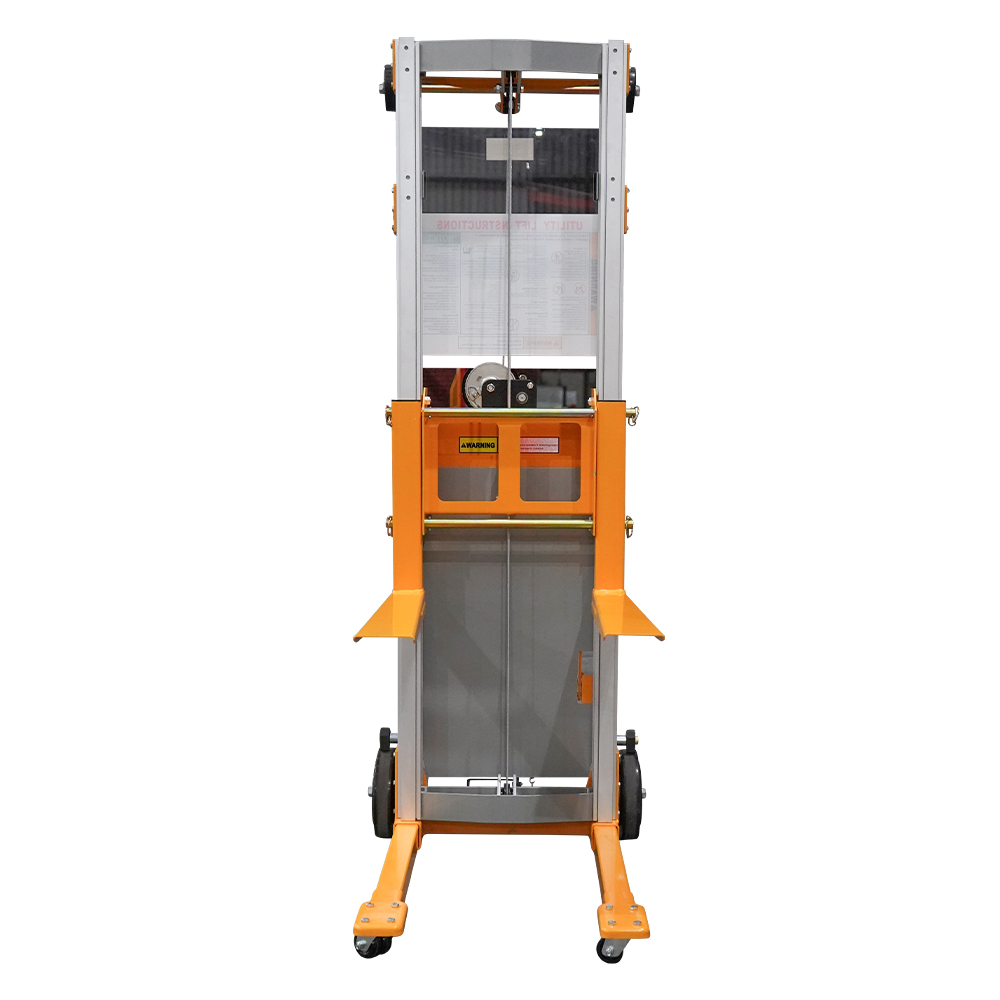

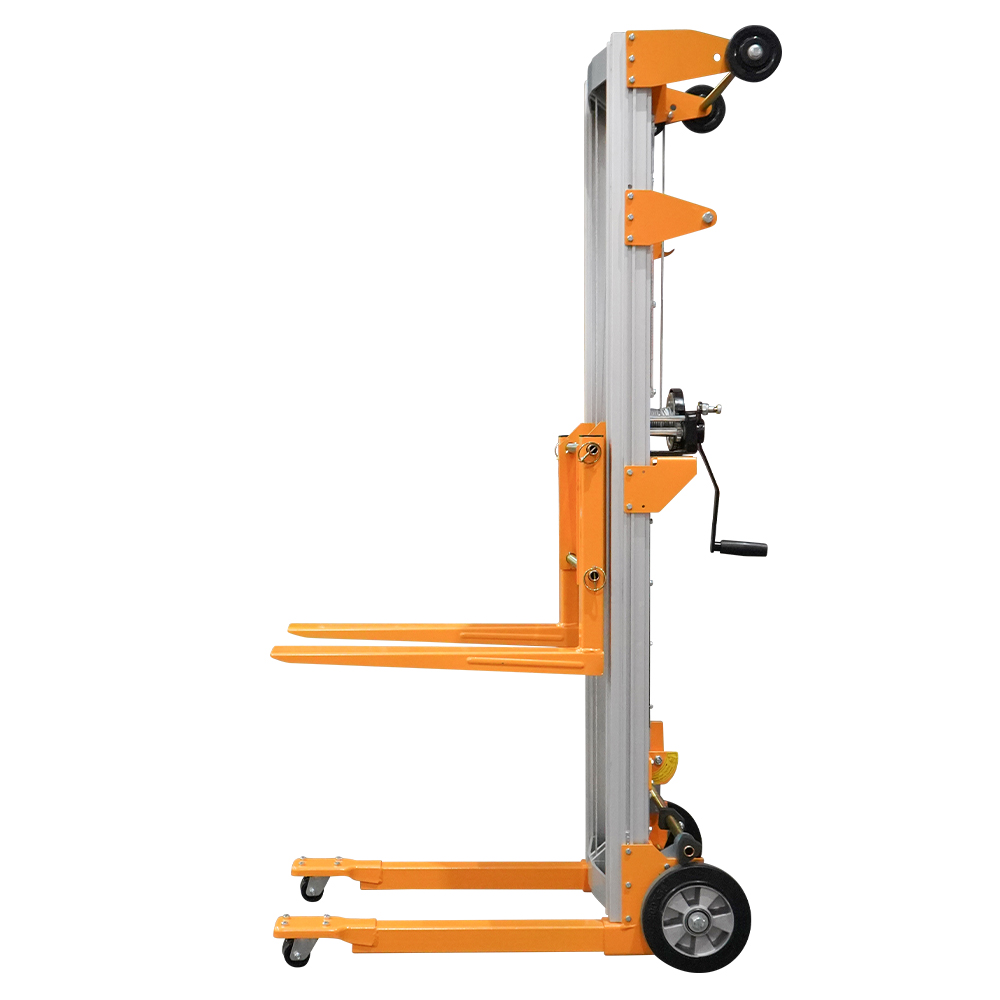

This manual stacker is built with a lightweight aluminium mast, foldable forks, and a hand-operated winch. It allows users to lift up to 180 kg to a maximum height of 2.5 m without requiring external power. Designed with large rear wheels and a compact frame, the FSR100 moves easily through tight spaces and fits through standard doorways. Foldable components and a low profile when the mast is lowered make it simple to store or transport.
Ideal for use in workshops, warehouses, or facilities where powered lifting equipment isn’t required, this unit helps reduce manual handling strain and improve workplace efficiency. The winch-operated lift system offers precise fork control and can be safely operated by a single person.
Constructed from high-strength aluminium, the FSR100 weighs approximately 60 kg. Rear wheels (200 mm) and front castors make it easy to steer and position, while the foot-operated brake keeps it stable during loading.
Product FAQs
The FSR100 can safely lift loads up to 180 kg, making it suitable for a range of light to medium-duty applications.

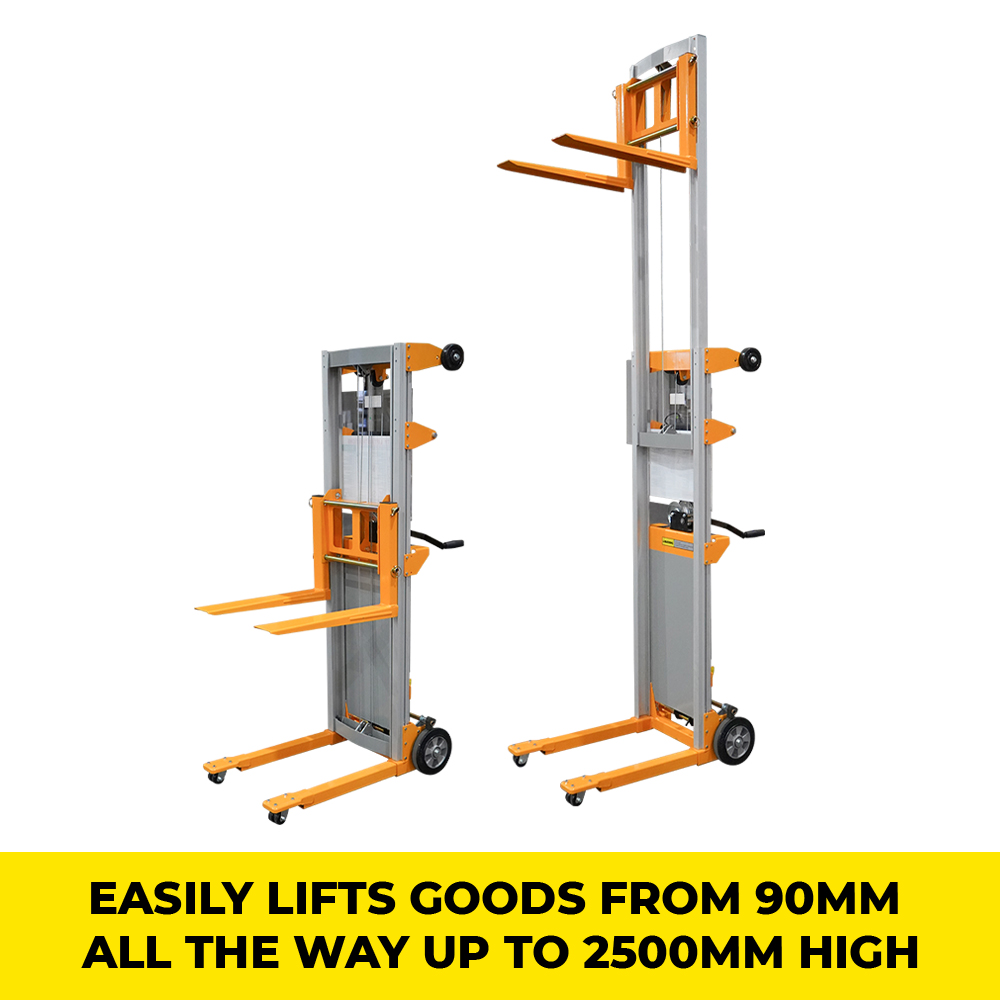

The maximum lift height is 2,500 mm to the fork tynes, ideal for shelving, workbenches or loading into vehicles.

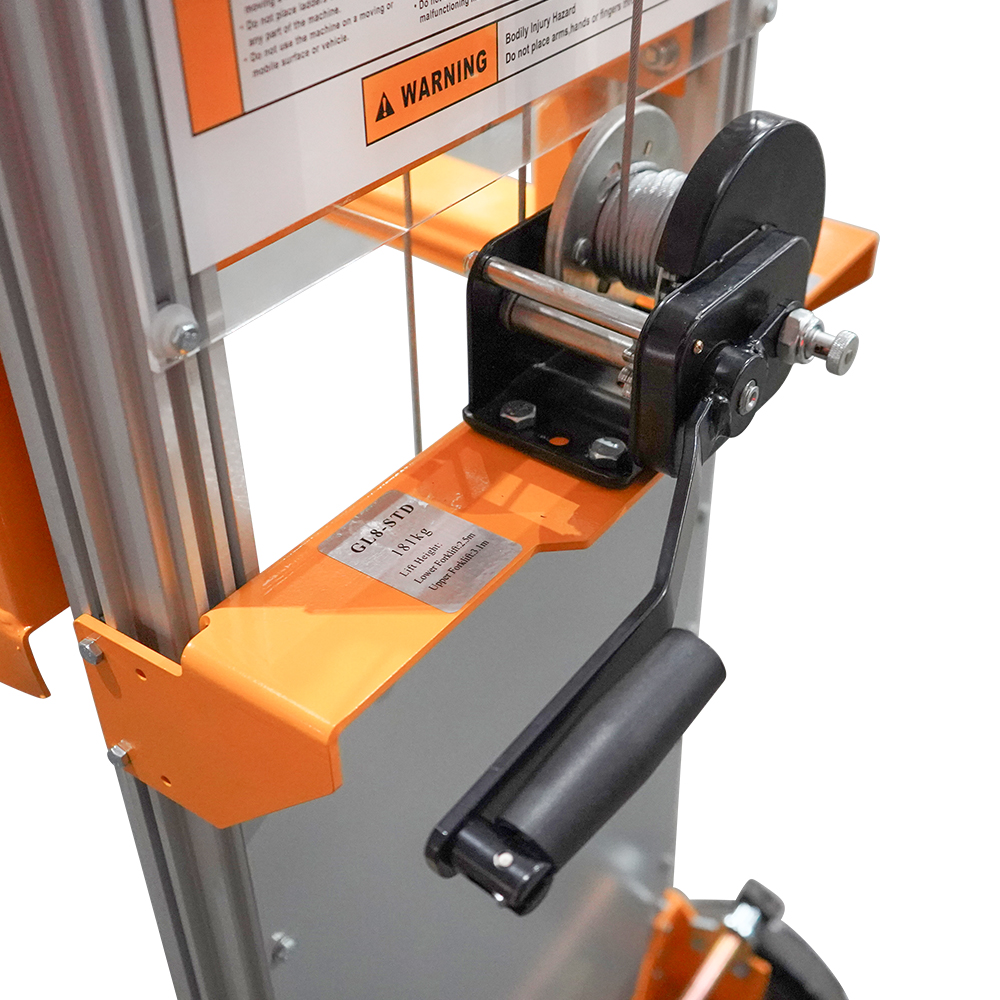

The forks are raised and lowered using a manual crank winch. Movement is by hand, and a rear foot brake locks the unit in place for loading.
The stacker has two large rear wheels (200 mm diameter) and two small front castors. This setup allows for easy mobility and stable support.
Common in warehouses, workshops, and stores — anywhere heavy items need to be lifted without powered equipment. Its size suits tight spaces and narrow aisles.
Inspect regularly for cable wear, brake function, and wheel condition. Lubricate moving parts and keep the unit free from dust or debris.
Yes, Richmond provides a 12-month warranty covering material and manufacturing defects.
Product Code
FSR100
Safe Working Load (kg)
180
Min Fork Height (mm)
90
Max Fork Height (mm)
2500
Fork Width (mm)
132-520
Fork Length
570
Weight(kg)
60
Rear Wheel Diameter (mm)
200
Front Wheel Diameter (mm)
50
