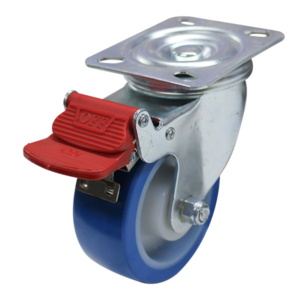

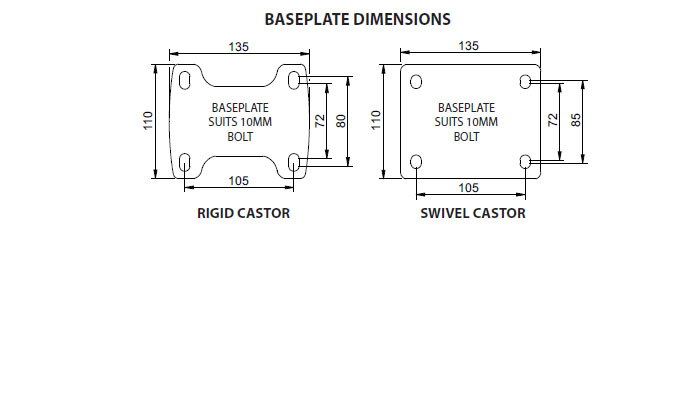

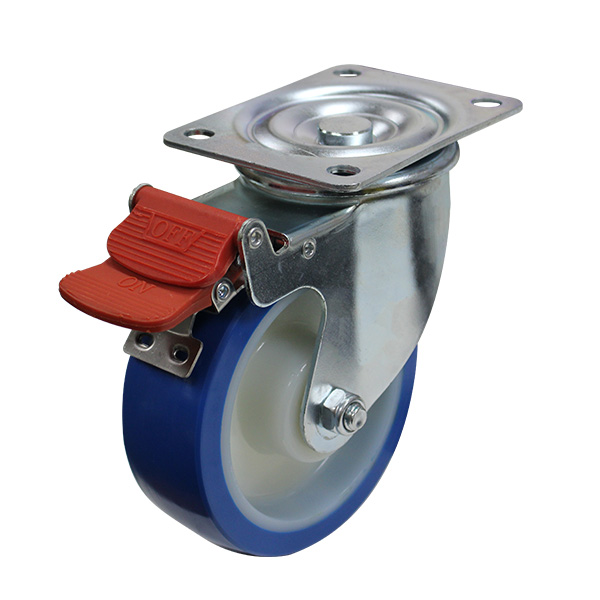

The S6054B by Richmond is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is one of our 300 series plate range and has a top load capacity of 300kg. The S6054B uses stainless steel roller bearings for wheel rotation and is mounted with the baseplate. The swivel frame allows full swivel rotation to enable steering. The diameter of the rebound polyurethane wheel is 150mm, the wheel width is 40mm and can be ordered separately (RP6072). For the same castor without a brake, see S6054.
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S6054B |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 50 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP6072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 187 |
| Swivel Radius (mm) | 125 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 250 |
| Download CAD Drawing (STEP file) | Download |
|---|
