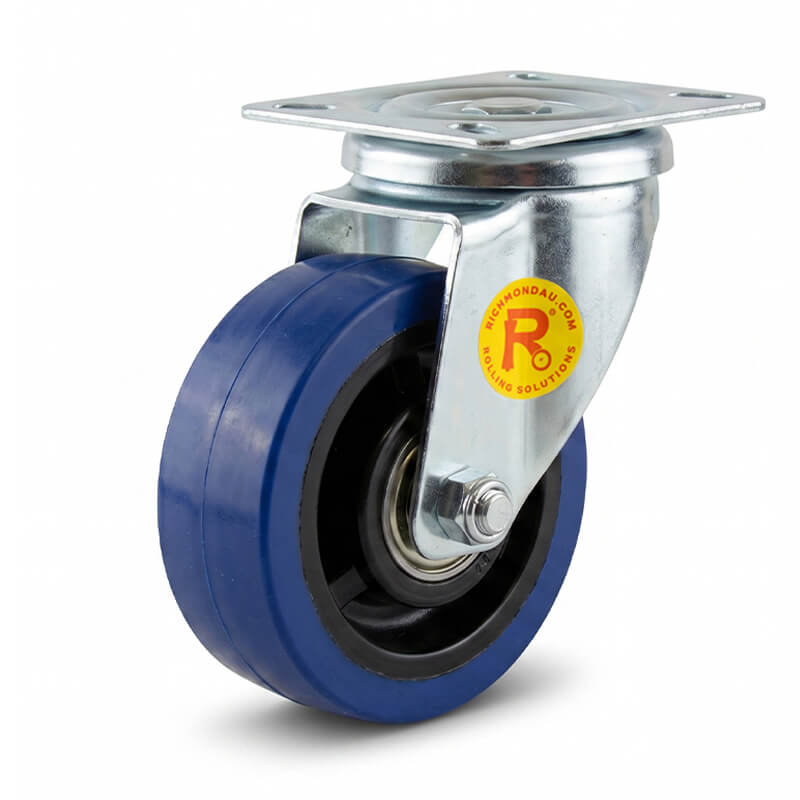

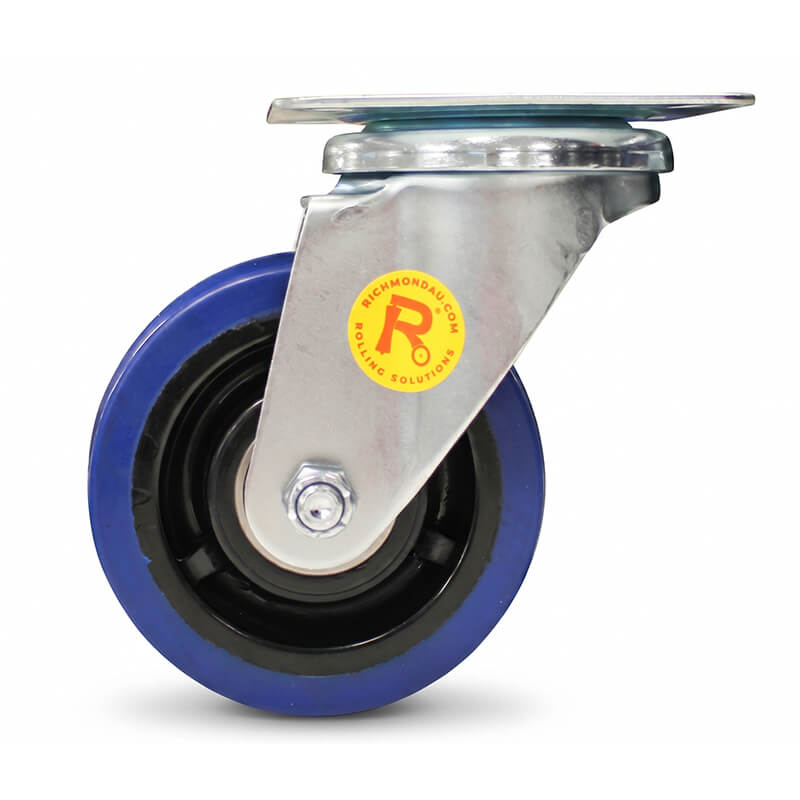

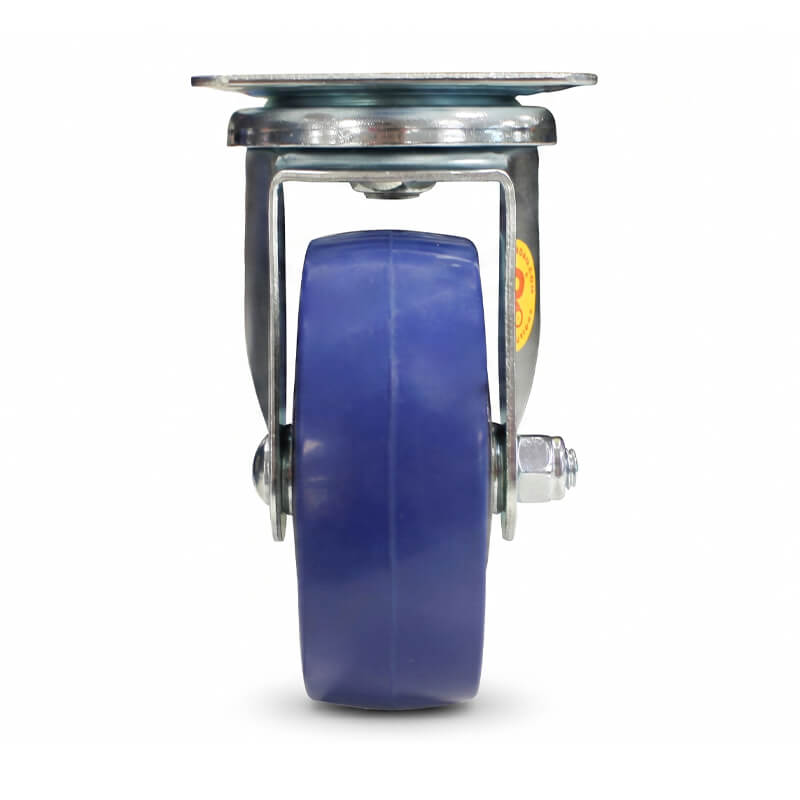

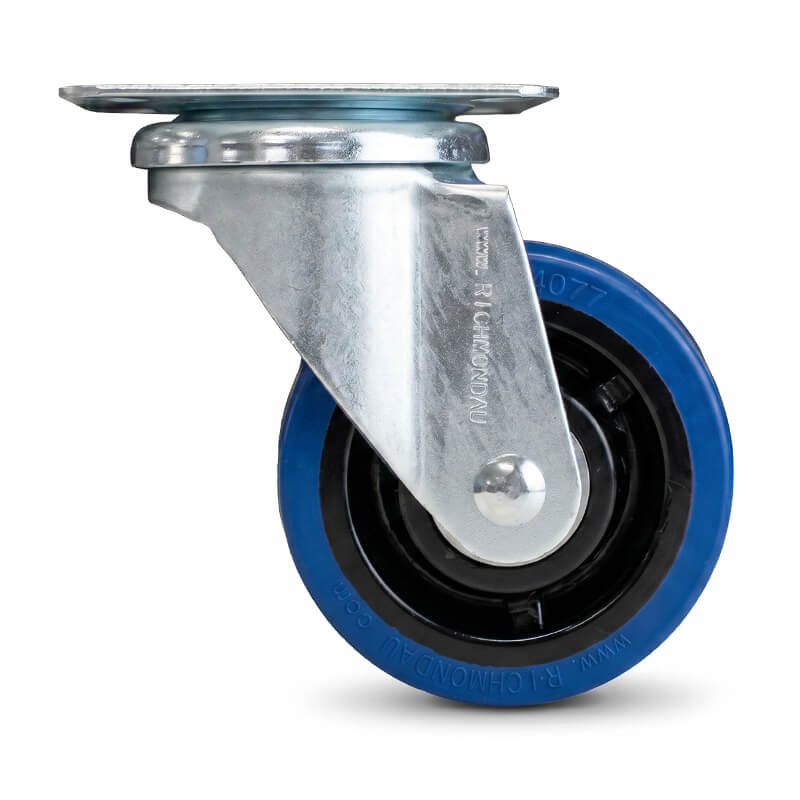

The S4042 swivel frame castor with rebound rubber wheel is part of our 300 Series castor range, designed and engineered to meet European standards, with EN standard metric baseplates for compatibility with a wide range of equipment.
- Swivel frame: allows for 360° steering and excellent manoeuvrability, enabling loads to be easily directed and controlled.
- 150mm diameter rebound rubber wheel: non-marking rebound rubber wheel with shock-absorbing properties that offer lower rolling resistance compared to standard rubber wheels.

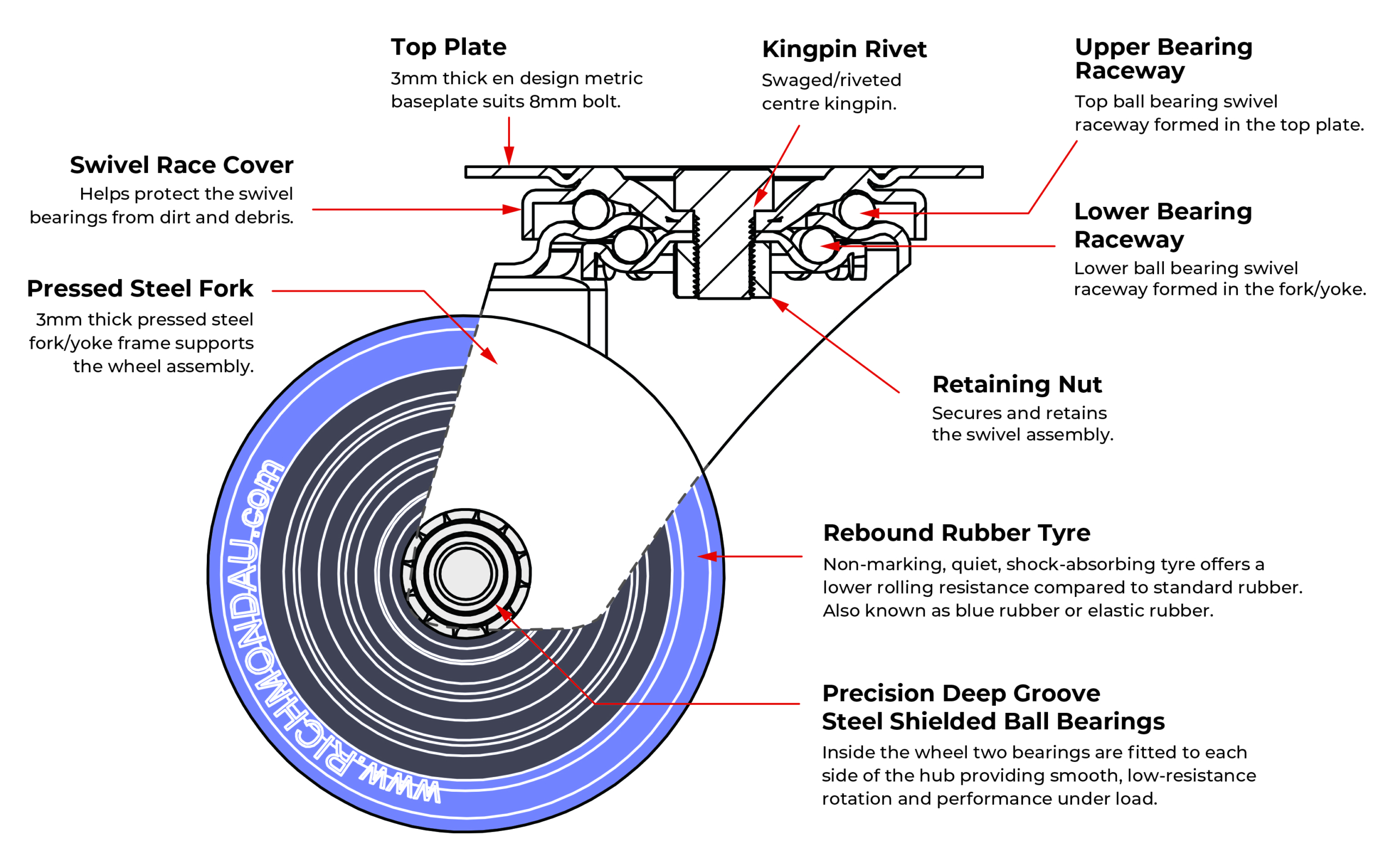

- Pressed metal construction: zinc-plated steel construction with twin ball bearing swivel race and 3mm thick frame for durability and strength.
- 150kg dynamic load capacity: suitable for transporting loads of up to 150kg per castor.
- Plate mount: EN standard metric rectangular baseplate for compatibility with a wide range of equipment. Suits 8mm bolts for mounting.
- Suitable for a wide range of applications: rebound rubber wheels provide smooth, quiet movement and roll easily over small obstructions. These castors are ideal for light- to medium-duty industrial and institutional use, including trolleys, mobile equipment, warehouses, medical facilities, and rough concrete surfaces where floor protection and smooth operation are essential.
Not sure which castor suits your needs? Contact our team across Australia for expert advice on selecting the best castor for your application.
Description
300 Series Castor Range
The 300 Series Castor Range has been designed and engineered to meet common European standards for industrial pressed-steel castors. Featuring a robust pressed metal frame and a 3 mm thick top plate, this range delivers reliable performance for a wide variety of material handling and equipment mobility applications.
Available in wheel diameters of 100mm, 125mm, 150mm, and 200mm, the range is supplied with standard European metric top plates for easy integration with compatible equipment and mounting systems.
Bolt-hole mount castors are also available in 100mm, 125 mm, 150mm, and 200mm sizes, featuring a single metric bolt-hole fitting. A full range of pintle fixing options is also available to suit different equipment and mounting requirements.
For applications requiring improved corrosion resistance and hygiene compliance, the Stainless Excel Series offers the same pressed-metal European-style design in a stainless steel housing, making it ideal for wet, washdown, and hygiene-critical environments.
Swivel Frame Castors
This castor features a full swivel frame design, allowing smooth directional movement and excellent manoeuvrability in confined or changing operating environments.
The swivel head enables the equipment to rotate freely for easy positioning and handling. Also available in rigid and swivel with brake frame options.
Rebound Rubber Wheels
Also known as elastic rubber or blue rubber wheels, rebound rubber wheels provide a quieter, non-marking alternative to standard rubber wheels while delivering excellent shock absorption and lower rolling resistance.
These wheels are particularly well suited to moving lightly loaded equipment across uneven surfaces, as they easily roll over small obstructions while helping protect both the load and floor surface from impact and vibration.
The RR4077-37BB rebound rubber wheel in this castor is fitted with 6202ZZ steel shielded deep groove ball bearings, providing smooth, low-resistance rotation and efficient performance under load.
The steel shield design helps protect against larger debris while maintaining minimal friction, allowing the wheel to roll freely. This makes it well suited to clean, controlled environments where maximum rolling efficiency is prioritised.
Plate Mount

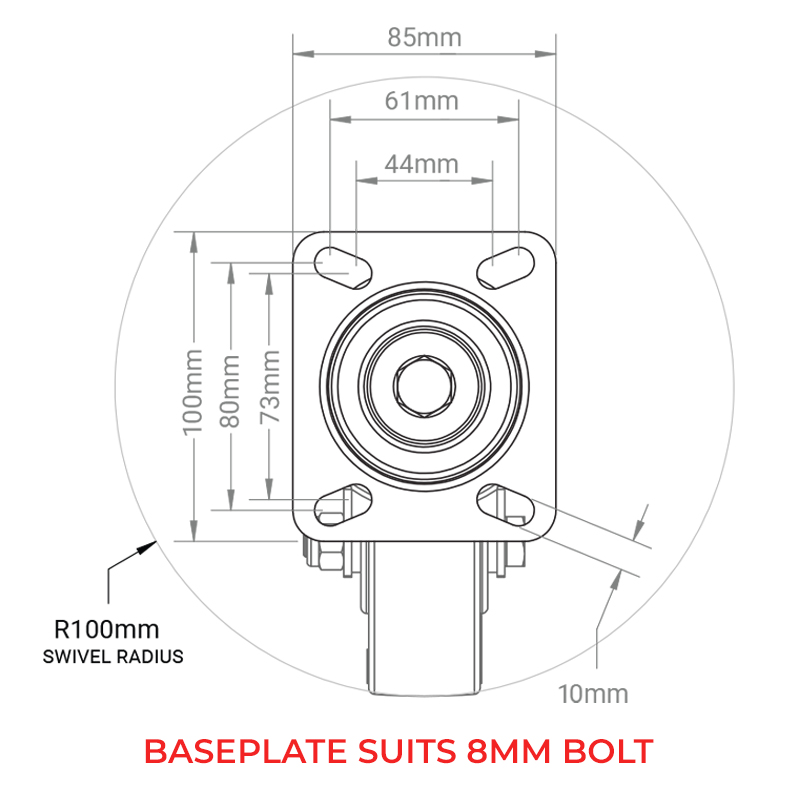

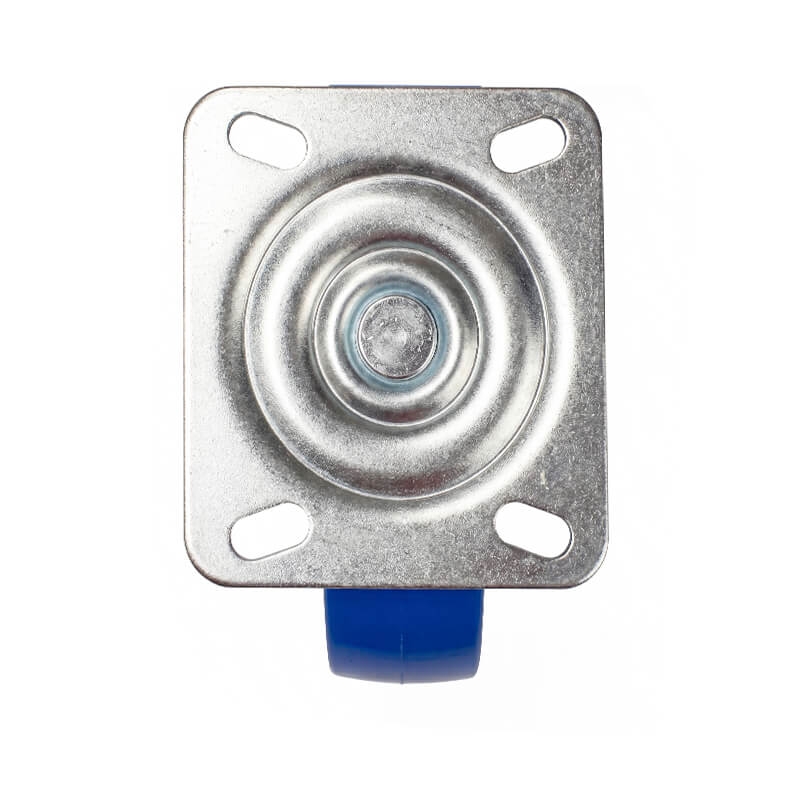

This castor features a 3 mm thick baseplate and 3 mm thick pressed steel forks, designed to suit 8 mm mounting bolts. The castor frame can be bolted or welded directly to equipment depending on the application requirements. Baseplate mounts to suit are also available.
