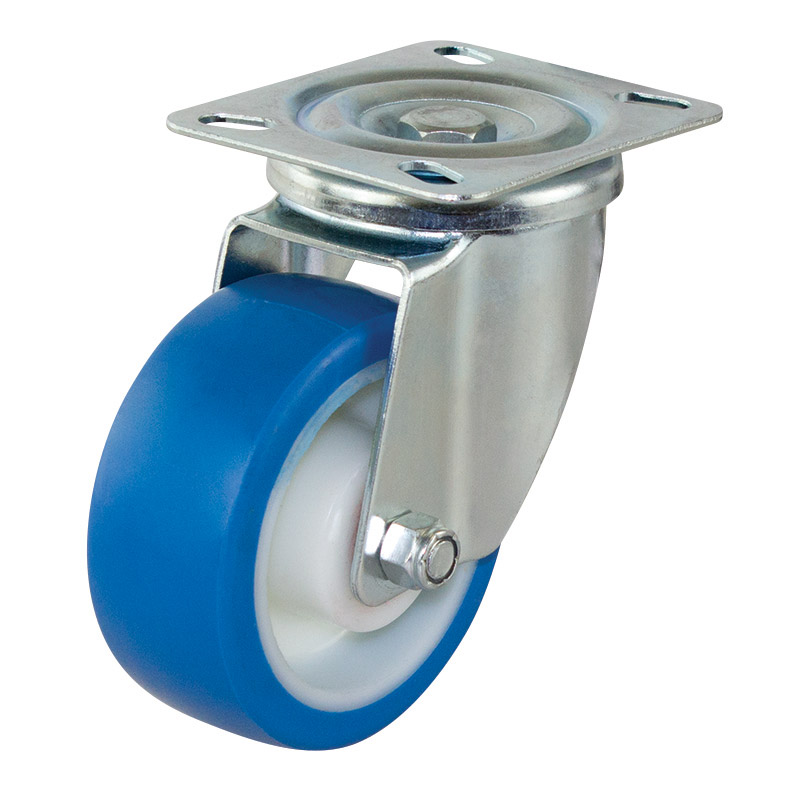

The S4054 manufactured by Richmond is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is part of our 300 series plate range and can hold loads up to 150kg. The S4054 wheel is fitted with stainless steel roller bearings and is mounted with the baseplate. The swivel frame allows full swivel rotation to enable steering. The diameter of the rebound polyurethane wheel is 100mm, the wheel width is 35mm and can be ordered separately (RP4072). This model can also be ordered with a brake (part number S4054B).

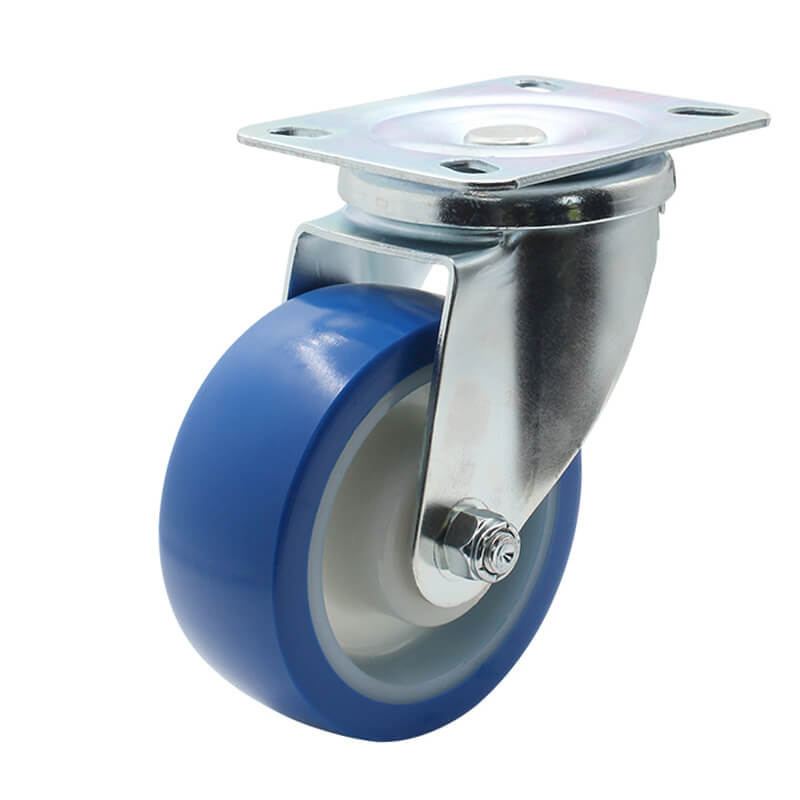

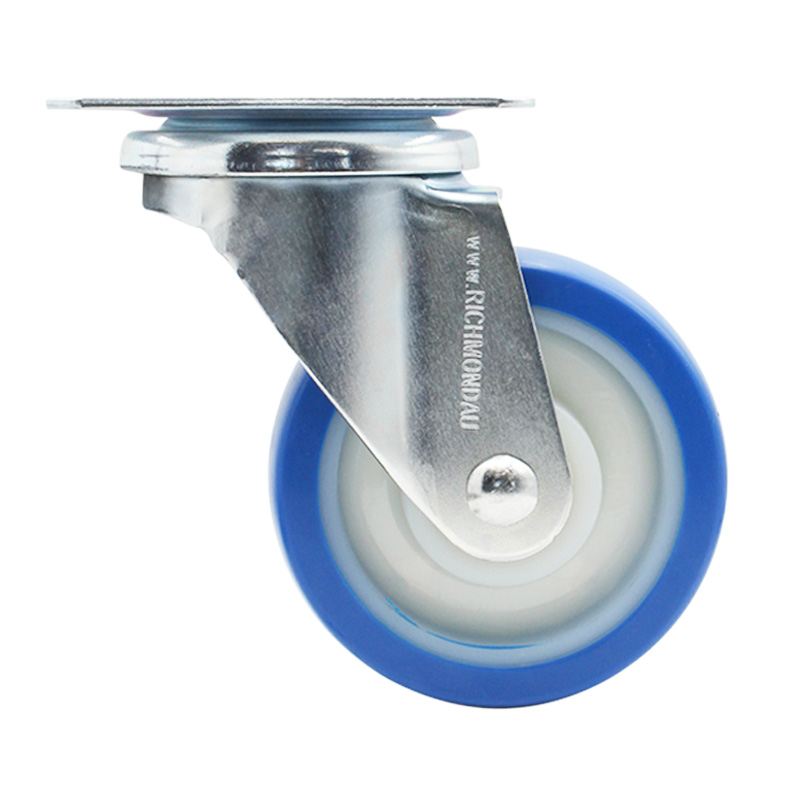

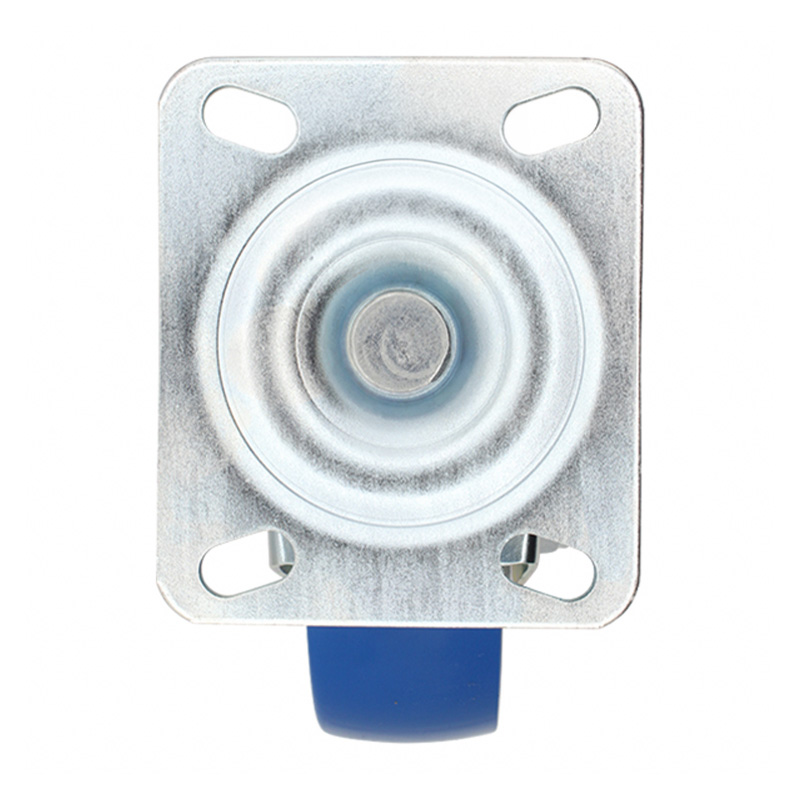

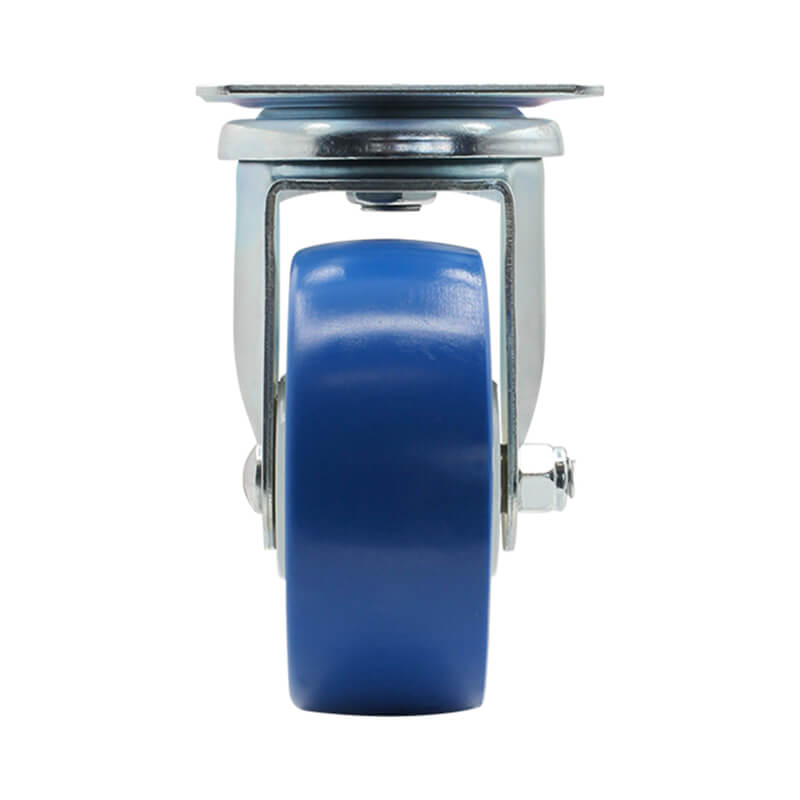

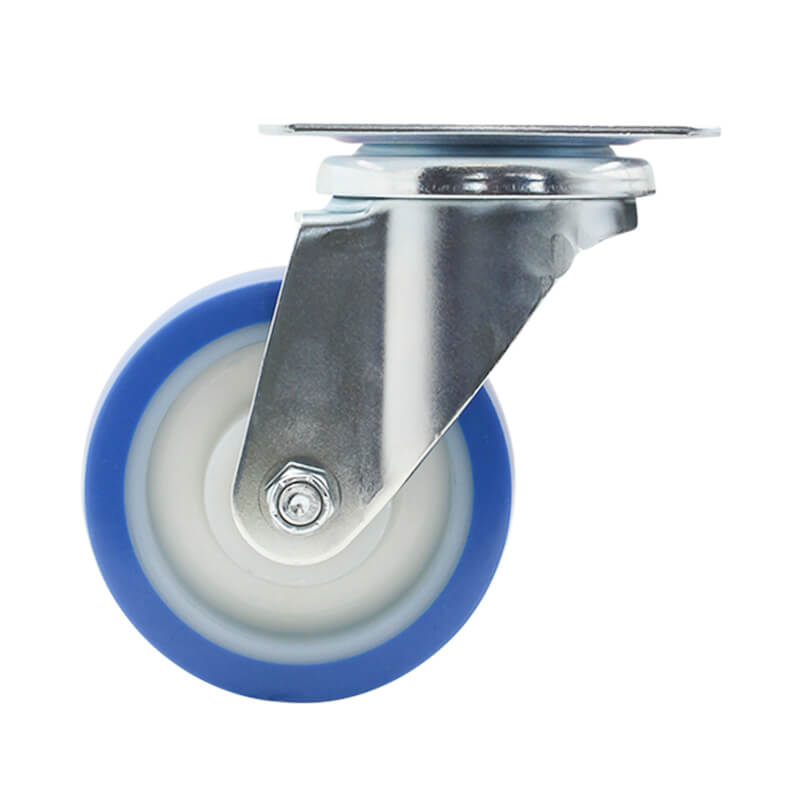

100mm Rebound Polyurethane Wheel, 150kg Capacity Swivel Castor (S4054)
Frame Type: Swivel
$50.13 ex. GST
$55.14 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S4054 manufactured by Richmond is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is part of our 300 series plate range and can hold loads up to 150kg. The S4054 wheel is fitted with stainless steel roller bearings and is mounted with the baseplate. The swivel frame allows full swivel rotation to enable steering. The diameter of the rebound polyurethane wheel is 100mm, the wheel width is 35mm and can be ordered separately (RP4072). This model can also be ordered with a brake (part number S4054B).
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S4054 |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP4072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 130 mm |
| Swivel Radius (mm) | 90 mm |
| Maximum Load Capacity (kg) | 150 kg |
| Recommended Load Capacity (kg) | 110 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
